M95640-DRMN3TP

64-Kbit SPI EEPROM, automotive grade, 20MHz, 1.7-5.5V, SO8 package, AEC-Q100

12340

Effective Inventory
Go to Inquiry

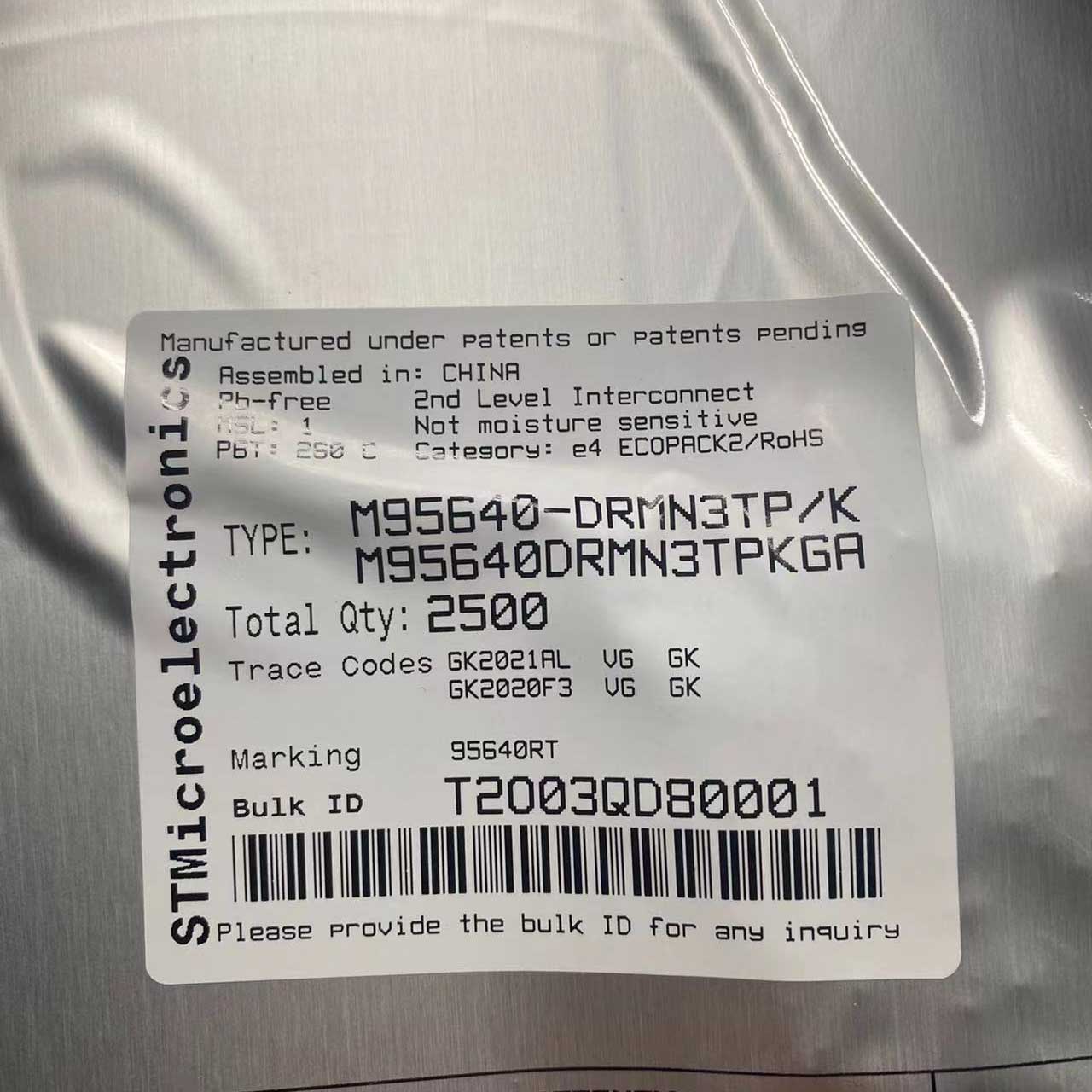

Image for reference only

Manufacturer Part：

M95640-DRMN3TP

Package：

SO8 (SOIC-8, 150 mils body width)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MPU-6000

MT25QL256ABA1EW9-0SIT

USB4085-GF-0180

ATF22V10C-15PU

ATF16LV8C-10JU

XA9572XL-15TQG100I

EP4CE15F23I7N

EPM3032ATC44-10N

Description

Product Overview

The M95640-DRMN3TP is an automotive-grade 64-Kbit serial SPI EEPROM from STMicroelectronics. Part of the M95640-A125 series, this device operates from 1.7V to 5.5V and features high-speed clock operation up to 20 MHz. It offers extended temperature range up to 125°C and meets AEC-Q100 Grade 0 automotive reliability standards. The device includes write protection, an identification page, and error correction code (ECC) logic for enhanced data integrity in harsh automotive environments.

Key Specifications

Manufacturer STMicroelectronics
Memory Type EEPROM
Capacity 64 Kbit (8 Kbyte)
Interface SPI
Supply Voltage 1.7V to 5.5V
Clock Frequency Up to 20 MHz
Operating Temperature -40°C to +125°C
Package SO8 (SOIC-8)
Grade Automotive AEC-Q100
Endurance 4M cycles @ 25°C
Data Retention 50 years @ 125°C

Features

  • 64 Kbit (8 Kbyte) EEPROM with SPI compatible interface
  • Automotive grade AEC-Q100 qualified
  • High speed: 20 MHz at VCC ≥ 4.5V
  • Page size: 32 bytes with page write in 4 ms
  • Embedded ECC for data integrity
  • Write protection by block (1/4, 1/2, or whole memory)
  • Additional identification page with lock capability
  • Extended temperature range: -40°C to 125°C
  • ESD protection: 4000V HBM
  • RoHS compliant and halogen-free (ECOPACK2)

Applications

  • Automotive electronics and infotainment systems
  • Industrial control and instrumentation
  • Configuration data storage
  • Sensor calibration data
  • Board-level parameter storage
  • Smart meters and IoT devices

The M95640-DRMN3TP is a 64-Kbit serial EEPROM automotive-grade device from STMicroelectronics, operating from -40°C up to 125°C. It is compliant with the very high level of reliability defined by the Automotive standard AEC-Q100 grade 0. The device is accessed by a simple serial SPI compatible interface running up to 20 MHz. The memory array is based on advanced true EEPROM technology organized as 256 pages of 32 bytes, in which data integrity is significantly improved with embedded Error Correction Code logic. The M95640-DRMN3TP offers an additional Identification Page (32 bytes) in which the ST device identification can be read. This page can also be used to store sensitive application parameters which can be later permanently locked in read-only mode. With write endurance of 4 million cycles at 25°C and data retention of 50 years at 125°C, this device is ideal for demanding automotive and industrial applications where reliable non-volatile storage is required.

The M95640-DRMN3TP operates as a serial EEPROM using the SPI (Serial Peripheral Interface) protocol. The device receives commands through the SPI bus, which consists of four signals: Serial Clock (SCLK), Chip Select (CS), Serial Data Input (SI), and Serial Data Output (SO). When a READ command is issued, the device decodes the address and retrieves data from the EEPROM memory array, shifting it out serially on the SO pin. For WRITE operations, data is loaded into an internal page buffer and then programmed into the EEPROM array using an internal charge pump that generates the high voltages required for EEPROM cell programming. The device features page write mode where up to 32 bytes can be programmed in a single write cycle of 4 ms. The embedded Error Correction Code (ECC) logic automatically detects and corrects single-bit errors during read operations, ensuring data integrity. Write protection features allow blocking write access to 1/4, 1/2, or the entire memory array through the WP pin and status register configuration.

Pin Name Type Function
1 CS Input Chip Select input
2 SO Output Serial Data Output
3 WP Input Write Protection input
4 VSS Ground Ground
5 SI Input Serial Data Input
6 SCLK Input Serial Clock input
7 HOLD Input Hold input (pause serial communication)
8 VCC Power Supply voltage (1.7V to 5.5V)
  • Automotive body electronics and infotainment systems
  • Industrial control systems and sensors
  • Smart energy meters and metering applications
  • Configuration and calibration data storage
  • IoT edge devices and connected sensors
  • Medical equipment parameter storage
Manufacturer Part Number Package Notes
STMicroelectronics M95640-WDW6TP TSSOP-8 Standard grade, TSSOP package
STMicroelectronics M95128-DRMN3TP SO8 128-Kbit automotive version
Microchip 25AA640A SOIC-8 64Kbit SPI EEPROM alternative
ON Semi CAT25640 SOIC-8 64Kbit SPI EEPROM
GigaDevice GD25Q64C SOIC-8 64Mbit SPI Flash alternative
