Product Overview

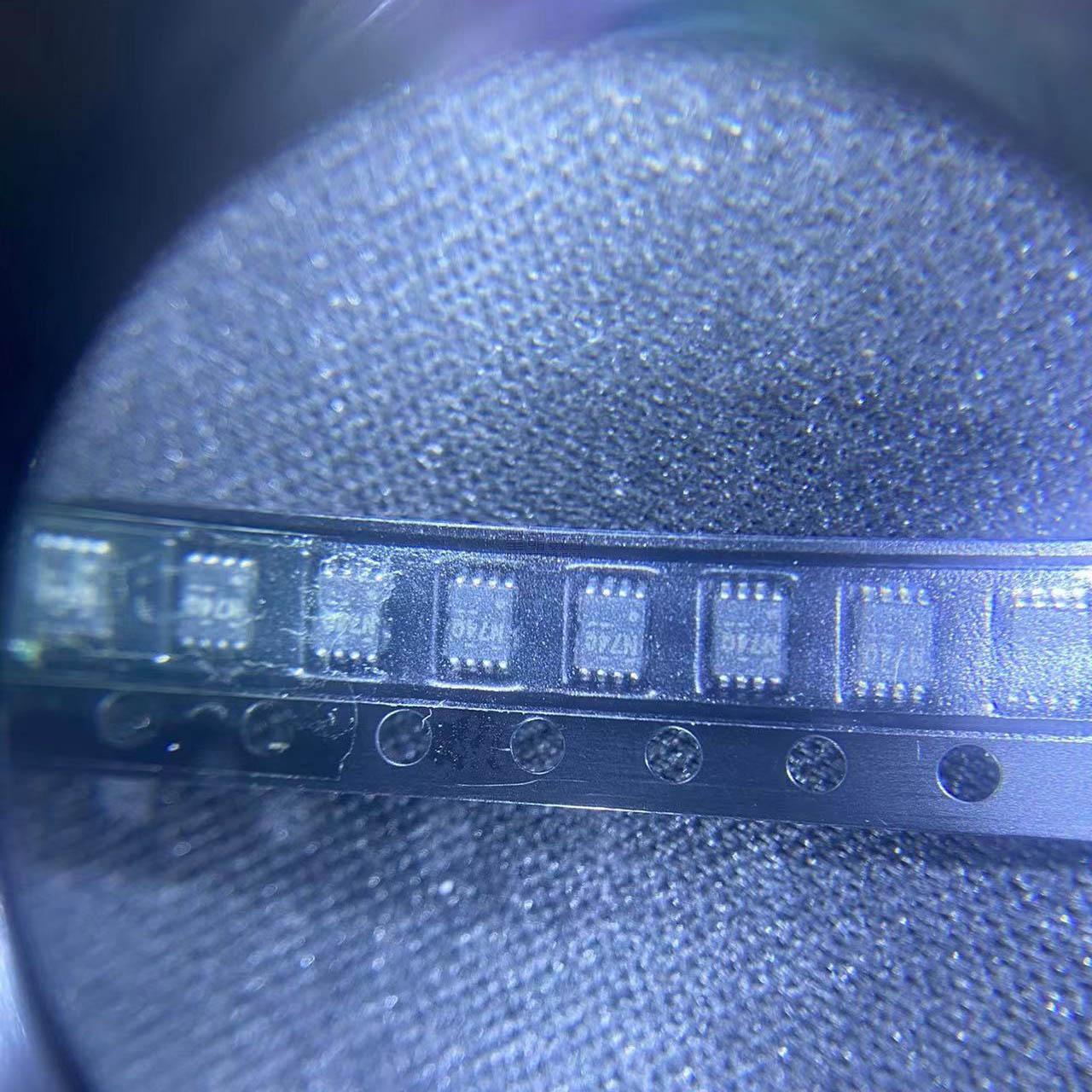

The SN74LVC1G74DCU is a single positive-edge-triggered D-type flip-flop with clear and preset from Texas Instruments. Designed for operation from 1.65V to 5.5V, this device features balanced outputs, over-voltage tolerant inputs, partial power-down mode (Ioff), and very high speed with propagation delays as low as 5.9ns. The DCU variant comes in the VSSOP-8 NanoFree package, making it ideal for space-constrained applications including servers, LED displays, network switches, telecom infrastructure, and motor drivers.
Key Specifications
| Manufacturer | Texas Instruments |
| Product Category | D-Type Flip-Flop |
| Logic Family | LVC |
| Number of Channels | 1 |
| Trigger Type | Positive Edge-Triggered |
| Supply Voltage Range | 1.65V to 5.5V |
| Maximum Clock Frequency | 200 MHz |
| Propagation Delay (tpd) | 5.9 ns max @ 3.3V |
| Output Current (IOL/IOH) | 32 mA / -32 mA |
| Supply Current (max) | 10 μA |
| Input Type | Standard CMOS (5.5V tolerant) |
| Output Type | Push-Pull |
| Operating Temperature | -40°C to +125°C |
| Package | VSSOP-8 (DCU) |
| Features | Ioff partial power-down, Schmitt inputs |
Features
- Single D-type positive-edge-triggered flip-flop
- Asynchronous preset (PRE) and clear (CLR) inputs
- Wide operating voltage: 1.65V to 5.5V
- Inputs accept voltages up to 5.5V (over-voltage tolerant)
- High speed: max 5.9ns propagation delay at 3.3V
- High clock frequency: up to 200 MHz
- ±24mA output drive at 3.3V
- Low power: max 10μA Icc
- Ioff supports live insertion and partial power-down
- Latch-up performance exceeds 100mA (JESD 78 Class II)
- ESD protection: 2000V HBM, 200V MM, 1000V CDM
- NanoFree VSSOP-8 package
- -40°C to +125°C operating range
Applications
- Servers and data center equipment
- LED display drivers
- Network switches and routers
- Telecommunications infrastructure
- Motor driver circuits
- I/O expander applications
- Data synchronization and storage
- Digital logic systems
