USB4085-GF-0180

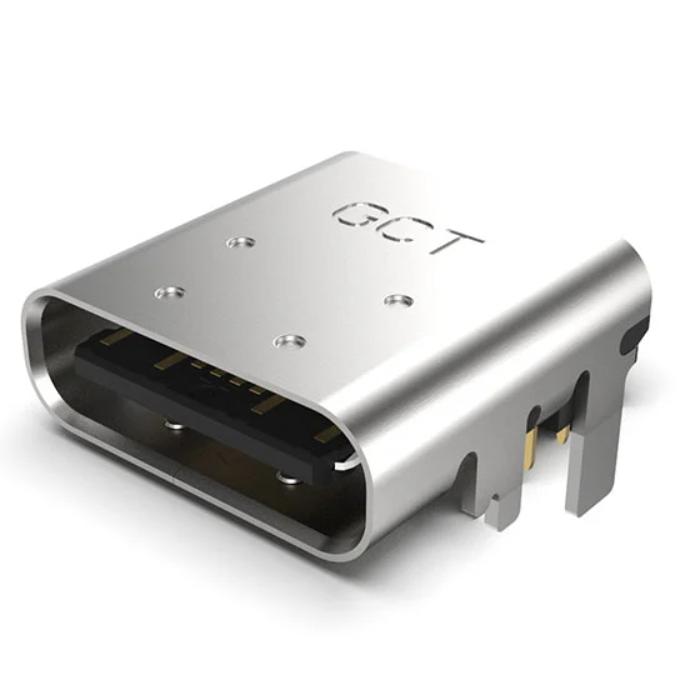

USB Type-C receptacle connector, USB 2.0, 16-pin, mid-mount SMT, GCT USB4085 series

8765

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

USB4085-GF-0180

Package：

Surface Mount, Mid-Mount, 16-pin Type-C

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

OTJRGLVTNF-148.50000

TSETKLJATF-20MHZ

OCJTDCJTNF-125.00000

OCETHCJTNF-100.00000

IS62WV51216BLL-55BLI

IS42S16160J-7TLI

IS43TR16256BL-125KBLI

IS42S16400J-7TLI-TR

Description

Product Overview

The USB4085-GF-0180 is a USB 2.0 Type-C connector from Global Connector Technology (GCT), designed for high-speed USB data and power delivery applications. This surface-mount Type-C receptacle supports USB 2.0 data rates up to 480Mbps and features a mid-mount design with 16 pins, providing the reversible plug orientation characteristic of USB Type-C. With a compact form factor and robust design, it is ideal for consumer electronics, mobile devices, and industrial applications requiring the latest USB connector standard.

Key Specifications

Parameter Value
Manufacturer Global Connector Technology (GCT)
Connector Type USB Type-C Receptacle
Standard USB 2.0 (USB 2.0 data lines)
Data Rate Up to 480 Mbps (USB 2.0)
Current Rating Up to 3A per VBUS contact pair
Voltage Rating 20V DC (max)
Number of Pins 16 positions
Mounting Style Surface Mount (SMT), Mid-Mount
Contact Plating Gold over nickel
Housing Material High-temperature thermoplastic
Insertion Cycles 10,000 cycles minimum
Operating Temperature -25°C to +85°C

Features

  • USB Type-C reversible plug interface
  • USB 2.0 data transmission up to 480Mbps
  • Supports USB PD (Power Delivery) up to 3A
  • Mid-mount design for low-profile applications
  • Surface mount for automated SMT assembly
  • Gold-plated contacts for high reliability
  • 10,000 mating cycle durability
  • RoHS compliant and halogen-free
  • High-temperature plastic housing compatible with reflow soldering
  • PCB retention posts for mechanical stability

Applications

  • Smartphones, tablets, and mobile devices
  • Laptops, ultrabooks, and 2-in-1 devices
  • Wearable electronics and smart watches
  • Portable power banks and chargers
  • IoT devices and smart home products
  • Industrial equipment and instruments
  • Audio and video accessories

The USB4085-GF-0180 from Global Connector Technology is a USB Type-C receptacle connector designed for USB 2.0 applications. Featuring the industry-standard reversible Type-C interface, this 16-position mid-mount surface-mount connector provides a compact and robust connection solution for modern electronic devices. It supports USB 2.0 data transfer speeds up to 480Mbps and is capable of handling currents up to 3A for USB Power Delivery applications. The mid-mount design allows for a lower profile on the PCB, making it ideal for thin and space-constrained device designs. Gold-plated contacts ensure reliable electrical performance and 10,000 mating cycle durability. The connector is fully RoHS compliant and compatible with standard reflow soldering processes, suitable for high-volume automated manufacturing.

A USB Type-C connector features a symmetrical 24-pin design (12 pins on each side) that allows the plug to be inserted in either orientation. The USB4085 implements a 16-pin subset optimized for USB 2.0 applications, including VBUS (power), GND, the two USB 2.0 data pairs (D+/D-), CC pins for configuration and cable orientation detection, and VCONN. The CC pins are critical to Type-C functionality: they detect cable insertion, determine plug orientation, negotiate power delivery modes, and configure alternate modes. The mid-mount design places the connector partially within the PCB thickness, reducing overall profile height. The receptacle shell provides EMI shielding and mechanical stability, while gold-plated contacts maintain low contact resistance through many mating cycles.

Pin Group Pins Description
VBUS A4/A9, B4/B9 Bus power (5V default, up to 20V with PD)
GND A1/A12, B1/B12 Ground return
D+/D- A6/A7, B6/B7 USB 2.0 differential data pair
CC A5, B5 Configuration Channel (cable detection, PD negotiation)
SHIELD Shell Connector shell (EMI shielding)
  • Smartphones, tablets, and mobile device charging/data ports
  • Ultra-thin laptops, 2-in-1 convertibles, and Chromebooks
  • Wearable devices: smartwatches, fitness trackers
  • Portable power banks and USB-C chargers
  • IoT sensors and smart home devices
  • Headphones, earbuds, and audio accessories
  • Industrial handheld terminals and measurement instruments
  • Any space-constrained device requiring USB connectivity
Model Manufacturer Standard Mounting
USB3130 GCT USB 3.1 Surface mount
105450-0101 Molex USB 2.0 Mid-mount
0548190583 Molex USB 3.1 Through-hole
DX07S016JA1R1500 JAE USB 2.0 Mid-mount SMD
