SN74HC08

Quad 2-input AND gate, 2-6V, CMOS logic, multiple packages

10544

المخزون الفعال
انتقل إلى الاستفسار

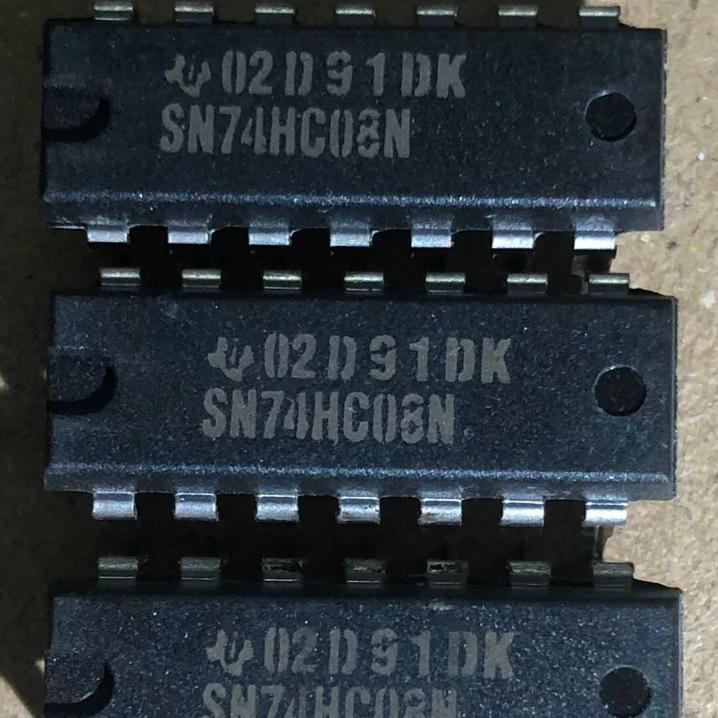

Image for reference only

جزء الشركة المصنعة ： جزء الشركة المصنعة

SN74HC08

الحزمة ： الحزمة

SOIC-14 / TSSOP-14 / PDIP-14

العلامة التجارية ： العلامة التجارية
فئات المنتجات:：فئات المنتجات
الالتزام بالجودة
الشحن والدفع
الخدمة والتغليف
دليل المنتج
توصيات أخرى قد تكون مهتماً بها.

STM8AF6213PCX

IAUC120N06S5N017ATMA1

AT25SF041B-SSHD-T

TJA1044GT/3Z

MCP6031T-E/(OTVAO)

MSP430G2231IPW4RQ1

PIC16F870T-I/SSG

ISL80019AIRZ-T

الوصف

نظرة عامة على المنتج

The SN74HC08 is a quad 2-input AND gate from Texas Instruments, operating from 2V to 6V in HC CMOS logic family. Available in SOIC-14, TSSOP-14, and PDIP-14 packages.

المواصفات الرئيسية

Logic Type Quad 2-input AND gate
Family 74HC (High-Speed CMOS)
Gates 4
جهد الإمداد 2-6V
تأخير الانتشار 8ns typ @ 6V
تيار الإخراج +/-5.2mA @ 6V
Input Current 1uA max
Temp -40 to 85C / 125C

الميزات

  • Quad 2-input AND gate in single package
  • Wide 2-6V operating voltage range
  • High-speed CMOS with low power consumption
  • 8ns typical propagation delay at 6V
  • Direct LSTTL input compatibility
  • Balanced propagation delays
  • Multiple package options

التطبيقات

  • General-purpose logic functions
  • Address decoding and data gating
  • Clock enable and control logic
  • Industrial control systems
  • Consumer electronics logic

The SN74HC08 from TI is a quad 2-input AND gate in the 74HC CMOS family. Operating from 2-6V with 8ns propagation delay at 6V, it provides basic AND logic functions for address decoding, data gating, and control logic in digital systems.

Each of the four AND gates performs the boolean function Y = A x B in positive logic. The HC CMOS technology provides low static power consumption and balanced output drive capability. The wide voltage range supports both 3.3V and 5V logic systems.

دبوس الاسم الوظيفة
1,2 1A, 1B Gate 1 inputs
3 1Y Gate 1 output
4,5 2A, 2B Gate 2 inputs
6 2Y Gate 2 output
7 GND أرضي
8 3Y Gate 3 output
9,10 3A, 3B Gate 3 inputs
11 4Y Gate 4 output
12,13 4A, 4B Gate 4 inputs
14 VCC Power supply
  • Address decoding logic
  • Data gating and control
  • Clock enable functions
  • General digital logic
الشركة المصنعة رقم الجزء الملاحظات
TI SN74AHC08 Advanced HC, faster
نيكسبيريا 74HC08 Pin-compatible
على شبه MC74HC08 Pin-compatible
TI SN74LS08 Bipolar TTL version
