DSPIC33EP512GM710-I

The DSPIC33EP512GM710-I is a flagship 16-bit digital signal controller from Microchip’s dsPIC33E ‘GM’ family, designed for high-performance embedded applications that require both microcontroller-level real-time control and DSP-level mathematical computation. Built around a modified Harvard architecture with a 24-bit instruction word and separate program/data buses, the dsPIC core executes at up to 70 million instructions per second (MIPS) and features a hardware DSP engine supporting single-cycle 16×16 fractional/integer multiply-accumulate (MAC) operations, a 40-bit accumulator with saturation logic, barrel shifting, and bit-reversed addressing for FFT computation — all critical for digital signal processing algorithms typically used in motor control, digital power, and audio applications. With 512 KB of on-chip Flash program memory and 52 KB of data RAM, this device offers generous code and data space for complex applications. The memory is supported by an 8-channel DMA controller that offloads data movement between peripherals and memory without CPU intervention, maximizing system throughput. The peripheral set is rich and focused on motor control and digital power applications: up to 16 high-resolution PWM outputs with 8.3 nanosecond resolution and integrated dead-band generation, multiple 12-bit SAR ADC cores delivering up to 8.2 megasamples per second with up to 43 analog inputs, integrated operational amplifiers for current sensing and signal conditioning, and analog comparators for fast fault detection. Communications peripherals include dual CAN 2.0B controllers (each with 32 message buffers), USB 2.0 Full-Speed OTG, four UARTs, four SPI ports, and two I2C ports — making the device suitable for multi-protocol industrial and automotive networks. Additional features include quadrature encoder interfaces for position feedback, input capture and output compare modules, CRC hardware acceleration, and a full set of system supervision features (WDT, BOR, POR). Operating from 3.0V to 3.6V with industrial temperature range (-40°C to +85°C) and available in a 100-pin TQFP package, the DSPIC33EP512GM710-I is the ideal choice for demanding motor control, digital power supply, automotive, and industrial control applications.

The DSPIC33EP512GM710 is a digital signal controller that blends microcontroller and DSP functionality into a single core. At the heart of the device is the dsPIC CPU, which is a 16-bit modified Harvard architecture processor: instructions are 24 bits wide (stored in Flash program memory) while data paths are 16 bits wide (using separate RAM data memory), allowing the core to fetch an instruction and read/write data in the same clock cycle. The core includes a full DSP engine with a 17×17-bit multiplier that can perform single-cycle 16×16 fractional or integer multiplications, accumulating results into a 40-bit accumulator (with two accumulator registers for back-to-back MAC operations). The DSP unit also includes a 40-bit barrel shifter for efficient bit manipulation and scaling, plus dedicated support for bit-reversed addressing that simplifies FFT butterfly computations. The PWM modules use dedicated hardware timers and comparators to generate precisely timed pulse-width modulated signals, independent of the CPU — critical for motor control and power supply applications where jitter must be minimized. The multi-core ADC architecture allows simultaneous sampling of multiple analog channels, which is essential for multi-phase motor control where phase currents and voltages must be measured at the same instant. The integrated op amps can be configured as differential amplifiers for current shunt sensing, eliminating the need for external amplifiers in many designs. The DMA controller operates in parallel with the CPU, transferring data between peripherals and RAM without CPU intervention — for example, moving ADC results into a buffer or loading new duty cycle values into the PWM modules. This allows the CPU to focus on algorithm computation while data movement happens autonomously in the background. The overall architecture enables sophisticated control algorithms like Field-Oriented Control (FOC) for PMSM/BLDC motors, active power factor correction (PFC), and digital power conversion to run efficiently on a single chip, reducing system cost and component count compared to multi-chip MCU + DSP solutions.

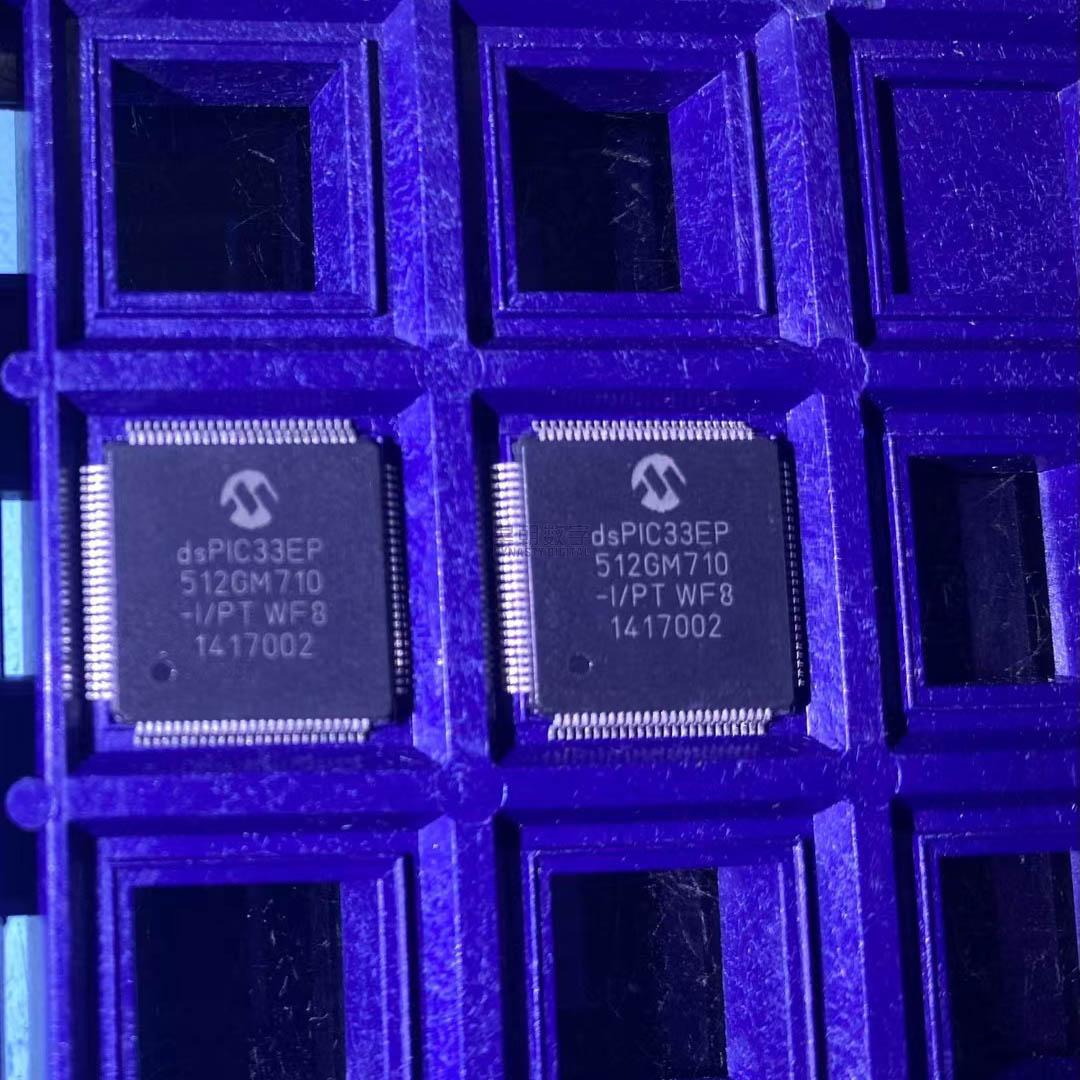

The DSPIC33EP512GM710-I is available in a 100-lead TQFP package. Major pin groups:

Note: Many pins have multiple multiplexed functions. Exact pin assignments depend on package variant and pin selection configuration. Refer to the official dsPIC33EP512GM710 datasheet and pinout diagrams for complete details.

• Advanced Motor Control: Used in high-performance field-oriented control (FOC) for PMSM and BLDC motors, AC induction motor drives, and servo controllers where the combination of high-resolution PWM, fast ADC, and DSP processing enables efficient, high-bandwidth motor control
• Digital Power Supplies (SMPS): Deployed in high-efficiency switch-mode power supplies, DC-DC converters, and power factor correction (PFC) circuits, leveraging the high-speed PWM and DSP capabilities for digital control loop implementation
• Automotive Electronics: Used in automotive body electronics, chassis control, and powertrain subsystems, with dual CAN controllers supporting CAN 2.0B communication in vehicle networks
• Industrial Drives & Inverters: Found in variable frequency drives (VFDs), industrial inverters, and robotics controllers requiring precise motor control and robust industrial communication interfaces
• Renewable Energy: Deployed in solar inverters (both string and micro-inverter), wind power converters, and energy storage systems where the DSP engine handles MPPT algorithms and grid-tie control
• Uninterruptible Power Supplies (UPS): Used in online UPS systems for inverter control, battery management, and grid synchronization, leveraging the high-resolution PWM and analog peripherals
• Factory Automation & Robotics: Found in PLC modules, motion controllers, and industrial robots where real-time control, high-speed communication (CAN, Ethernet via external PHY), and sensor signal processing are required
• Medical Devices & Equipment: Used in medical instrumentation, infusion pumps, surgical tools, and diagnostic equipment where precision control, reliability, and signal processing capability are essential
