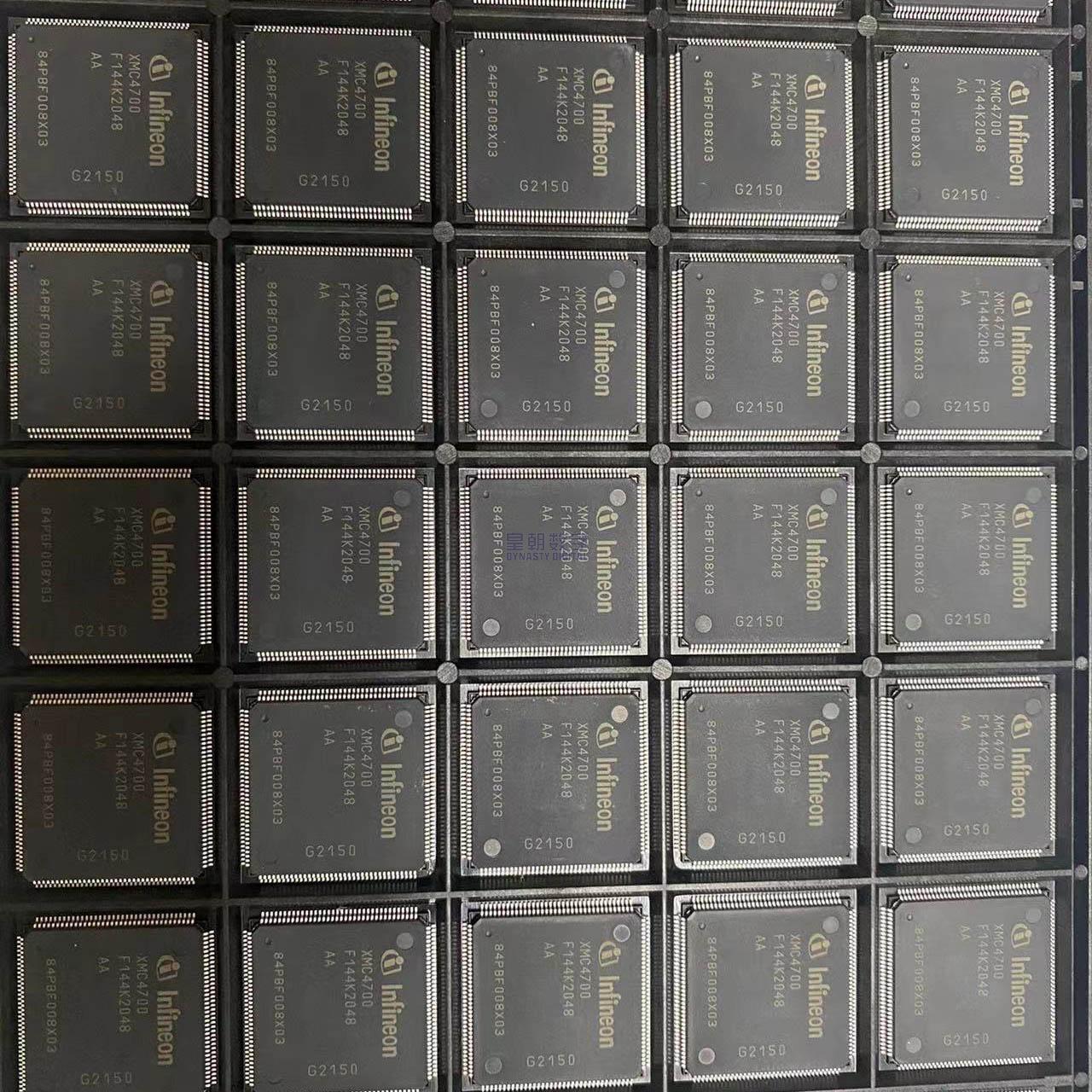

XMC4700F144K2048AAXQ

The XMC4700F144K2048AAXQ is a high-performance 32-bit microcontroller from Infineon’s XMC4000 family, designed specifically for industrial applications including motor control, power conversion, and factory automation. Based on the ARM Cortex-M4F CPU core with DSP extensions and a hardware floating-point unit, this device operates at up to 144 MHz, delivering 180 DMIPS of processing performance.

Manufactured on Infineon’s 65nm embedded Flash technology, the XMC4700 integrates 2 MB of program Flash memory and 352 KB of SRAM. An 8 KB instruction cache accelerates code execution from Flash by reducing wait states. The Cortex-M4F core provides single-cycle multiply-accumulate (MAC) operations, hardware division, saturated arithmetic (DSP extensions), and single-precision floating-point (FPU), making it highly efficient for motor control algorithms and digital power conversion calculations.

Peripheral integration is extensive and optimized for industrial control. Four 12-bit VADC modules provide up to 58 analog input channels with 300 ns conversion time and flexible trigger mechanisms. Two 12-bit DACs and four analog comparators round out the analog capability. For motor control and power conversion, CCU4 and CCU8 timer units provide up to 88 PWM outputs with dead-time generation, plus a POSIF module for quadrature encoder and Hall sensor interface.

Communication peripherals include a 10/100 Mbps Ethernet MAC with IEEE 1588 PTP support, USB 2.0 Full-Speed OTG, MultiCAN+ with up to 3 nodes, and six Universal Serial Interface Channels (USIC) configurable as UART, SPI, I2C, I2S, or SSC. An External Bus Unit (EBU) supports expansion with SDRAM, NOR Flash, or NAND Flash.

The LQFP-144 package provides up to 112 general-purpose I/O pins in a 20 x 20 mm footprint with 0.5 mm lead pitch. The device operates from a single 3.3 V supply (with integrated core regulator) over the -40 degC to +85 degC industrial temperature range. Infineon’s DAVE 4 development environment provides a free Eclipse-based IDE with comprehensive peripheral libraries and code generation tools.

The XMC4700 is a complex 32-bit microcontroller built around the ARM Cortex-M4F core with extensive industrial peripherals. Here are the key subsystems:

1. ARM Cortex-M4F Core: The central processing unit is an ARM Cortex-M4F 32-bit RISC core with the following features:
– Thumb-2 instruction set (16/32-bit mixed instruction encoding for high code density)
– DSP extensions: single-cycle 32×32 MAC, SIMD arithmetic, saturated math
– Single-precision floating-point unit (FPU): IEEE 754-compliant
– Nested Vectored Interrupt Controller (NVIC) with 124 interrupt channels, configurable priorities
– Memory Protection Unit (MPU) for task isolation
– System tick timer, Bit-Band addressing, Wake-up Interrupt Controller
– CoreSight debug + Embedded Trace Buffer (ETB) for code trace

2. Memory Architecture:
– Program Flash: 2 MB embedded Flash (65nm technology), single-cycle access via prefetch buffer + 8KB instruction cache. ECC (Error Correcting Code) for reliability.
– Data Flash: ~64KB Flash dedicated for data storage (emulated EEPROM)
– SRAM: 352 KB total SRAM, organized into multiple blocks (PSRAM for program/data, DSRAM for DMA, plus dedicated RAM for USB, CAN, I2C peripherals)
– External Bus Unit (EBU): supports SDR-SDRAM (up to 64MB), NOR Flash (up to 4 banks), and NAND Flash (with ECC)

3. VADC (Versatile Analog-to-Digital Converter): Four independent ADC modules, each with 12-bit resolution and up to ~14 channels. Features include 300 ns conversion time, auto-scan, queued request sources, result FIFO, limit checking, and flexible trigger gating from timer units. Enables simultaneous sampling of multiple motor phase currents and voltages.

4. CCU4 / CCU8 Timer Units:
– CCU4: 4 modules with 4 capture/compare channels each (16 channels total). Each channel has a 16-bit timer, compare register, and capture register. Used for general-purpose timing, PWM generation, and input capture.
– CCU8: 2 modules with 8 channels each (16 channels total). Each slice has a 16-bit timer with dead-time generation, asymmetric PWM support, and multi-channel pattern generation. Optimized for 3-phase motor control and power conversion.

5. POSIF (Position Interface): A dedicated position sensor interface supporting:
– Quadrature encoder (ABZ) interface with position counter
– Hall sensor interface with pattern matching
– Multi-channel pattern switch for BLDC motor commutation
Works closely with CCU8 for motor control applications.

6. Communication Peripherals:
– Ethernet MAC: 10/100 Mbps with IEEE 1588 PTP hardware timestamping, DMA support, RMII/MII PHY interface
– USB 2.0 FS OTG: Host and device mode with integrated transceiver
– MultiCAN+: 3 CAN nodes with 256 message objects, 64 receive objects with FIFO
– USIC: 6 universal serial interface channels, each configurable as UART, SPI, I2C, I2S, or SSC
– SDIO: SD/MMC card interface (4-bit mode, up to 48 MHz)

7. Power Management and System Control: An on-chip voltage regulator generates the 1.3V core supply from the 3.3V I/O supply. Power-on reset and brown-out detection ensure proper startup and supply monitoring. Multiple low-power modes (Sleep, Deep Sleep, Hibernate) reduce power consumption when full performance is not needed.

r>

Package: LQFP-144 – Low-profile Quad Flat Pack, 144 pins. Body dimensions: 20mm x 20mm. Lead pitch: 0.5mm. 36 pins per side (4 sides). Gull-wing leads. LQFP = Low-profile QFP. XQ suffix denotes industrial temperature grade and specific ordering variant. Operating temperature: -40 degC to +85 degC.

• Industrial Motor Control and Drives: AC induction motor drives, BLDC/PMSM servo drives, and variable frequency drives (VFDs) where the Cortex-M4F DSP + FPU executes field-oriented control (FOC) algorithms, CCU4/CCU8 timers generate high-resolution PWM with dead-time compensation, VADC provides simultaneous current/voltage sampling, and POSIF interfaces with position encoders and Hall sensors.
• Power Conversion and Renewable Energy: Solar inverters, wind turbine converters, battery management systems (BMS), and DC-DC converters requiring high-performance control loops, analog measurement, and flexible PWM generation. FPU-enabled control loops with floating-point math improve control accuracy and simplify firmware development.
• Factory Automation and PLC: PLC CPUs, remote I/O controllers, and industrial Ethernet gateways (PROFINET, EtherCAT, Modbus TCP) where the Ethernet MAC with IEEE 1588 PTP supports real-time industrial communication, MultiCAN+ provides CAN bus connectivity, and ample Flash/SRAM support complex control programs and communication stacks.
• Building Automation and HVAC: HVAC controllers, building management systems (BMS), and smart building gateways requiring multiple communication interfaces (Ethernet, CAN, RS-485, USB), analog I/O for environmental sensors, and sufficient processing power for building automation protocols and algorithms.
• Uninterruptible Power Supplies (UPS): Digital control of online and line-interactive UPS systems, including inverter control, battery charging management, and static switch control. High-resolution PWM, fast ADC sampling, and DSP control loops ensure high efficiency and tight output regulation.
• EV Charging and Automotive Power Electronics: On-board chargers (OBC), DC-DC converters, and charging infrastructure for electric vehicles requiring high-power digital control with efficient PWM generation, isolated sensing interfaces, and communication (CAN, Ethernet, PLC). Industrial temperature range and robust Flash technology suit automotive applications.
• Communication Gateways and IoT Edge Nodes: Industrial IoT edge gateways and protocol converters bridging between multiple industrial networks (EtherNet/IP, PROFINET, CAN, RS-485). The combination of Ethernet MAC, CAN, multiple serial ports, and 2MB Flash enables running full protocol stacks and application logic simultaneously.
• Digital Power Supplies and Lighting: High-efficiency digital power supplies, smart LED drivers, and power management units requiring advanced control algorithms (e.g., resonant LLC control, PFC), multiple PWM channels, and fast analog feedback loops. The Cortex-M4F with DSP extensions handles complex control schemes that analog controllers cannot implement.
