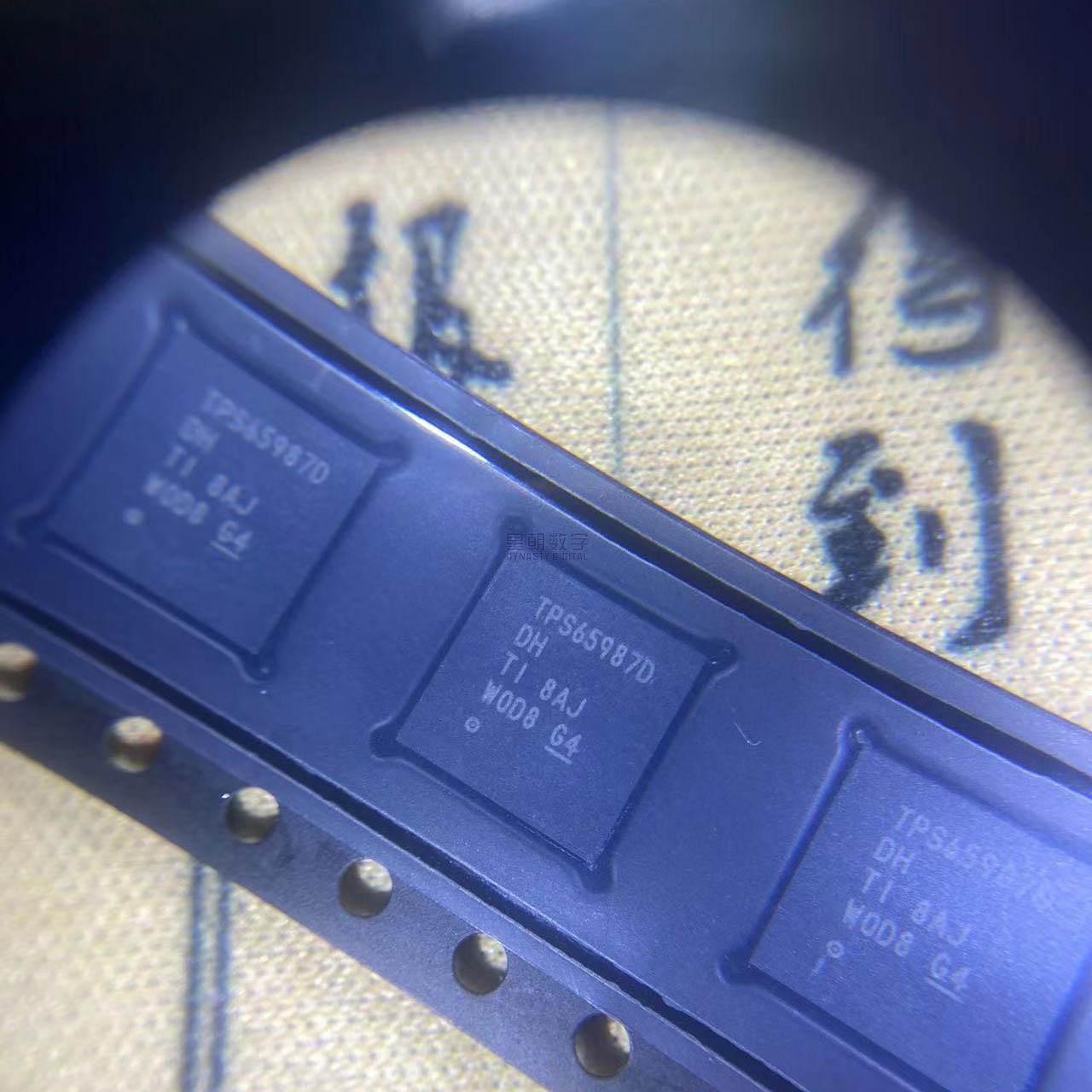

Image for reference only

Manufacturer Part：

TPS65987DDHRSHR

Package：

VQFN-56 (RSH) - 7.0 x 7.0 x 0.9 mm, 0.4mm pitch

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

UA78M15HC

TPS70351PWPR

TPS65250RHAR

TPS65217BRSLR

TPS22965DSGT

TLV74311PDBVR

TDA4718A

TC4427AVOA713

Description

Product Overview

The TPS65987DDHRSHR is a highly integrated USB Type-C™ and USB Power Delivery (PD) controller from Texas Instruments, designed to provide a complete USB-C power and data solution for a wide range of applications. The device integrates all necessary functions including USB PD 3.0 compliance, cable orientation detection, VCONN sourcing/sinking, port power switch control, and Billboard support for alternate modes.

Packaged in a 56-pin VQFN (RSH) package measuring 7 mm × 7 mm with 0.4 mm pitch, the TPS65987DDH includes a 32-bit ARM® Cortex®-M0 microcontroller running at 48 MHz with on-chip flash and RAM for application firmware. The device supports USB PD 3.0 with PPS (Programmable Power Supply) capability, enabling negotiation of variable voltage levels for fast charging applications.

The TPS65987DDH features a cable plug and orientation detection block that automatically configures the USB Type-C pins based on the connected cable. It supports both source and sink roles (DRP), as well as dual-role data (DRD). The device includes a thermal-aware power path with overcurrent and overvoltage protection, I²C and SPI interfaces for host communication, and extensive GPIO configurability. With an operating temperature range of –40°C to +125°C, the TPS65987DDHRSHR meets the demanding requirements of industrial and automotive-grade designs.

Key Specifications

Parameter Value
USB Specification USB Type-C r2.0, USB PD 3.0 with PPS
Port Role Dual-Role Port (DRP) — Source, Sink, DRP
Data Role Dual-Role Data (DRD) — Host, Device, DRD
Power Support Up to 100 W (20 V / 5 A) with E-Marker cable
VCONN Supports sourcing up to 200 mW on CC pin
MCU Core ARM Cortex-M0 @ 48 MHz
Flash Memory 128 KB with 4 KB EEPROM emulation
RAM 20 KB SRAM
Host Interfaces I²C (2 ports), SPI, UART, GPIO
Alternate Modes DisplayPort, Thunderbolt, HDMI (via Billboard)
Protection Features OVP, OCP, OTP, reverse current protection
Supply Voltage 3.3 V (VCC), 4.5 V – 22 V (VIN)
Package VQFN-56 (RSH), 7 x 7 mm
Operating Temperature –40°C to +125°C

Features

  • USB Type-C r2.0 and USB PD 3.0 with PPS compliance
  • Supports dual-role port (DRP) source/sink operation
  • Up to 100 W (20 V/5 A) power delivery with E-Marker cable support
  • Integrated 32-bit ARM Cortex-M0 MCU @ 48 MHz with flash firmware
  • 128 KB flash memory and 20 KB SRAM
  • CC pin detection: cable plug/orientation, VCONN sourcing/sinking
  • Integrated billboard controller for alternate mode signaling
  • DisplayPort, Thunderbolt, and HDMI alternate mode support
  • Thermal-aware power path with overcurrent and overvoltage protection
  • I²C (2 ports), SPI, UART, and multiple GPIO for system integration
  • Supports dead-battery mode (no firmware needed for basic sourcing)
  • Integrated VBUS discharge circuit
  • Low-power sleep modes for battery-powered systems
  • FW upgrade via I²C, SPI, or UART (Bootloader mode)
  • 56-pin VQFN package (7 mm × 7 mm)
  • Extended temperature range: –40°C to +125°C

Applications

  • Notebooks, 2-in-1s, and tablets with USB-C charging
  • Docking stations and port replicators
  • USB-C monitors and displays with power delivery
  • Power adapters and charger ICs (PD chargers)
  • Automotive infotainment and USB hubs
  • Industrial PCs and equipment with USB-C connectivity
  • Thunderbolt™ 3/4 docking and peripherals
  • External SSDs and storage with USB-C power

The TPS65987DDHRSHR is a USB Type-C and USB Power Delivery controller from Texas Instruments, providing a fully-integrated solution for implementing USB-C ports with power delivery in consumer, industrial, and automotive applications. This device combines all the necessary Type-C detection, PD protocol handling, power path control, and system interface functions into a single IC, reducing design complexity and BOM cost.

At the core of the TPS65987DDH is a 32-bit ARM Cortex-M0 microcontroller running at 48 MHz, with 128KB of on-chip flash and 20KB of SRAM. This enables the device to run fully compliant USB PD 3.0 firmware with PPS (Programmable Power Supply) support, allowing negotiation of power levels up to 100W (20V/5A) with suitable E-Marker cables. The firmware is field-upgradable via I2C, SPI, or UART interfaces.

The device features fully integrated Type-C configuration channel (CC) logic that handles cable plug detection, orientation detection, and VCONN sourcing for powering E-Marker cables. A built-in billboard controller provides USB 2.0 Billboard Device Class signaling for alternate modes such as DisplayPort, Thunderbolt, and HDMI.

The TPS65987DDH includes a thermal-aware power path with integrated overcurrent, overvoltage, and reverse-current protection. It supports both source and sink power roles (DRP) and can dynamically switch between roles based on connection status and user configuration. The device also supports dead-battery mode, allowing basic power sourcing functionality even before firmware is loaded.

Available in a 56-pin VQFN package with an operating temperature range of -40°C to +125°C, the TPS65987DDHRSHR meets the requirements of both commercial and extended-environment applications including automotive infotainment systems.

The TPS65987DDH USB-C PD controller operates through several key functional blocks:

1. CC Detection and VCONN: The configuration channel (CC) pins detect cable plug and orientation by monitoring pull-up (Rp) and pull-down (Rd) resistors. VCONN is sourced through the CC pin to power E-Marker electronics in electronically marked cables. The device supports both standard 100W PD and PPS (Programmable Power Supply) modes for fast charging.

2. ARM Cortex-M0 MCU: The integrated microcontroller runs the PD protocol stack and application firmware. It handles PD message construction and parsing, state machine management, power negotiation, and alternate mode discovery. 128KB of flash stores the firmware, which can be updated in the field.

3. Power Path Control: The device controls external power switches (NFETs) for VBUS sourcing and sinking. It implements overcurrent protection (OCP), overvoltage protection (OVP), undervoltage lockout (UVLO), and reverse current protection to ensure safe operation under fault conditions.

4. Billboard Controller: When alternate modes are supported but cannot be negotiated, the device presents as a Billboard class device over USB 2.0, providing information about supported alternate modes to the host.

5. System Interfaces: Multiple I2C ports, an SPI port, UART, and GPIOs allow the TPS65987DDH to communicate with host processors, ECs, and other system components. GPIO pins can be configured for various functions including interrupts, control signals, and status outputs.

6. Protection and Monitoring: The device includes thermal monitoring and thermal shutdown, VBUS voltage monitoring, and current sense amplification for accurate power delivery and protection.

<n

Pin No. Pin Name Type Function
1-2 VBUS Power VBUS sense and discharge path. Monitor pin for VBUS voltage.
3 VCC Power Main 3.3V supply for digital core
4 VIN_3V3 Power 3.3V input for internal LDO generation
5 PP_HV Power High-voltage path sense input
6-7 GND Ground Ground reference
8 CC1 I/O Type-C Configuration Channel 1
9 CC2 I/O Type-C Configuration Channel 2
10 VDDIO Power I/O supply voltage for digital I/Os
11 DP_HPD I/O DisplayPort HPD signal
12 SWD_CLK Input SWD clock for debug and programming
13 SWD_DATA I/O SWD data for debug and programming
14 SDA I/O I2C serial data (port 1)
15 SCL Input I2C serial clock (port 1)
16 INT_N Output Interrupt output to host (active low)
17 SPI_CLK Input SPI clock input
18 SPI_MOSI Input SPI master-out slave-in
19 SPI_MISO Output SPI master-in slave-out
20 SPI_CS Input SPI chip select input
21-24 GPIO0-GPIO3 I/O General-purpose I/O pins (multi-function)
30 VBUS_DET Input VBUS voltage detection input (from divider)
34 PP_5V0 Output 5V power path FET control output
38 PP_HV_GATE Output High-voltage power path gate drive output
44 UART_TX Output UART transmit (debug port)
45 UART_RX Input UART receive (debug port)
48 SDA2 I/O I2C serial data (port 2)
49 SCL2 Input I2C serial clock (port 2)
53 RESET_N Input Device reset input (active low)
54 BOOT Input Boot mode select strap
56 LPWK_N I/O Low-power wakeup input/output

Note: Pin list is abbreviated. The 56-pin VQFN package includes additional GPIO, ADC, and power pins. Full pin description and alternate function mux table are available in the device datasheet. Exposed thermal pad must connect to ground.

  • Notebook and 2-in-1 Chargers: USB-C power delivery ports for laptops and convertible PCs, supporting both charging (sink) and peripheral power (source) with PD 3.0 PPS for fast charging.
  • Docking Stations and Port Replicators: Multi-function docks that provide USB-C upstream connection with power delivery, supporting multiple video outputs (DisplayPort), USB 3.x data, and Ethernet.
  • USB-C Monitors and Displays: Displays with USB-C input that can deliver power to connected laptops (Power Delivery up to 100W) while receiving video and data over the same cable.
  • Automotive Infotainment: In-vehicle USB-C ports with PD charging for passenger devices, operating over the full automotive temperature range with robust ESD and protection features.
  • Industrial PCs and Equipment: Industrial computing platforms requiring USB-C connectivity with reliable operation across extended temperature ranges and EMC compliance.
  • Thunderbolt Docks and Accessories: Thunderbolt 3/4 docking stations and peripherals where the TPS65987 handles the Type-C PD layer while Thunderbolt controller handles high-speed data.
  • External Storage and SSDs: Bus-powered USB-C SSDs and storage devices needing power negotiation and Billboard class support for alternate modes.
Manufacturer Part Number PD Version Power Notes
Texas Instruments TPS65988RSHR PD 3.0 100W Dual-port USB-C PD controller
Texas Instruments TPS25750DRSHR PD 3.0 PPS 240W Standalone PD controller, higher power
Texas Instruments TPS65994ADRSHR PD 3.1 EPR 240W Thunderbolt 4 + PD 3.1
Cypress/Infineon CYPD5225-96BZXI PD 3.0 100W EZ-PD CCG5, dual-port
STMicroelectronics STUSB4500QTR PD 2.0 100W Sink-only PD controller
Weltrend WT6632F PD 3.0 PPS 100W Popular in PD chargers
