TPS65217BRSLR

Single-chip PMIC for AM335x, 3 DCDC + 4 LDO + charger + WLED, I2C control, VQFN-48, industrial temp

4521

Effective Inventory
Go to Inquiry

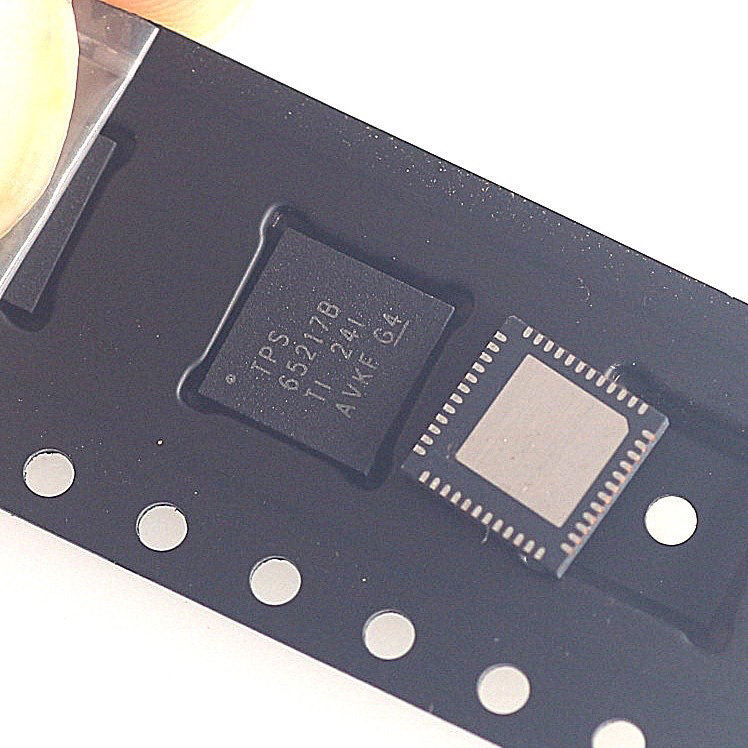

Image for reference only

Manufacturer Part：

TPS65217BRSLR

Package：

VQFN-48 (RSL) - 6.0 x 6.0 x 0.9 mm, 0.4mm pitch

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

UA78M15HC

TPS70351PWPR

TPS65987DDHRSHR

TPS65250RHAR

TPS22965DSGT

TLV74311PDBVR

TDA4718A

TC4427AVOA713

Description

Product Overview

The TPS65217BRSLR is a highly integrated single-chip power management IC (PMIC) from Texas Instruments, specifically designed to power TI Sitara™ AM335x ARM® Cortex®-A8 processors and similar embedded systems. The device integrates three high-efficiency step-down DC/DC converters, four low-dropout (LDO) regulators, a linear battery charger with power path management, and a white LED boost driver, providing a complete power solution for battery-powered and 5 V line-powered applications.

Packaged in a 48-pin VQFN (RSL) package measuring 6 mm × 6 mm with 0.4 mm pitch, the TPS65217B operates from 2.75 V to 5.8 V input and supports dual input sources (USB and AC adapter) with automatic power path management. The three 2.25 MHz synchronous buck converters deliver up to 1.2 A each and provide the core, memory, and I/O voltages for the processor system.

The device features password-protected I²C control (address 0x24), configurable power-up sequencing, power-good monitoring, push-button monitor, wakeup functionality, and an integrated analog multiplexer for system voltage and temperature monitoring. With an operating temperature range of –40°C to +105°C, the TPS65217BRSLR is suitable for industrial and portable applications requiring a compact, cost-effective PMIC solution.

Key Specifications

Parameter Value
Input Voltage Range 2.75 V to 5.8 V (AC, USB, Battery)
DC/DC Converters 3 × synchronous buck, 2.25 MHz
DCDC Output Current Up to 1.2 A per channel
LDO Regulators 4 × LDO (2 standby, 2 general-purpose)
LDO Output Current 200 mA each (LDO1, LDO2, LS1/LDO3, LS2/LDO4)
Battery Charger Linear charger, up to 900 mA
WLED Driver Boost, 2 × 10 LEDs @ 25 mA
Switching Frequency 2.25 MHz (DCDC converters)
Quiescent Current 80 µA typical
Shutdown Current 6 µA typical
Control Interface I²C (slave address 0x24), password-protected
Package VQFN-48 (RSL), 6 x 6 mm
Operating Temperature –40°C to +105°C

Features

  • Three synchronous step-down DC/DC converters at 2.25 MHz with dynamic voltage positioning
  • Four LDO regulators: 2 standby LDOs (LDO1, LDO2) + 2 load switch/LDO (LS1/LDO3, LS2/LDO4)
  • Integrated linear battery charger with power path management
  • Supports USB 2.0 and AC adapter inputs with automatic source selection
  • Battery charger with up to 900 mA fast charge and NTC temperature monitoring
  • White LED boost driver: 2 strings × up to 10 LEDs @ 25 mA
  • Configurable power-up/down sequencing with strobe outputs
  • Push-button monitor with wakeup functionality
  • Power-good monitoring (primary PGOOD and LDO_PGOOD)
  • Reset output and manual reset inputs
  • Analog multiplexer for voltage and temperature monitoring
  • Password-protected I²C register access (Level 1 and Level 2)
  • 48-pin VQFN package (6 mm × 6 mm)
  • Industrial temperature range: –40°C to +105°C

Applications

  • Sitara AM335x and AM335x-based systems
  • Industrial HMI and touch panel controllers
  • Portable data terminals and barcode scanners
  • Battery-powered test and measurement equipment
  • Single-board computers and embedded Linux systems
  • IoT gateways and edge computing devices
  • Medical monitoring and portable healthcare devices
  • Home automation and smart building controllers

The TPS65217BRSLR is a highly integrated power management IC from Texas Instruments, optimized for TI Sitara AM335x ARM Cortex-A8 processor-based systems. This single-chip PMIC integrates all the power rails required for a typical embedded system: three step-down DC/DC converters for core, memory, and I/O voltages, four LDO regulators for low-power peripherals, a linear battery charger with power path management, and a white LED backlight driver.

Designed for both battery-powered and line-powered applications, the TPS65217B accepts input from USB ports, 5V AC adapters, or single-cell Li-ion/Li-polymer batteries. The integrated power path management automatically selects the appropriate power source and manages the transition between sources without interruption to the system supply.

The three 2.25 MHz synchronous buck converters (DCDC1, DCDC2, DCDC3) provide high-efficiency step-down conversion with dynamic voltage positioning support, allowing software-controlled voltage scaling for power optimization. Each converter supports up to 1.2 A output current with integrated power MOSFETs, minimizing external component count.

The I2C interface with two-level password protection enables secure configuration of all power rails and features. The device includes comprehensive system monitoring: a primary PGOOD signal, LDO power-good output, undervoltage lockout, thermal shutdown, and an 8-channel analog multiplexer for monitoring system voltages and NTC thermistors.

Available in a compact 48-pin VQFN package (6mm x 6mm), the TPS65217BRSLR operates over the full industrial temperature range of -40°C to +105°C, making it suitable for harsh industrial environments.

The TPS65217B PMIC is organized into several major functional blocks:

1. Power Path Management: The power path module manages power flow from three potential sources (AC adapter, USB port, and battery). It automatically selects the highest priority available source and ensures smooth transition between sources. The AC input has the highest priority, followed by USB, then battery. Dynamic Power Path Management (DPPM) prevents system collapse when input current is limited by reducing charging current to maintain system voltage.

2. Battery Charger: A linear charger supports single-cell Li-ion and Li-polymer batteries. Charging phases include precharge (for deeply discharged batteries), constant current fast charge (up to 900mA), and constant voltage float charge. NTC thermistor monitoring ensures safe charging within temperature limits. The charger includes safety timers and thermal regulation.

3. DC/DC Converters: Three synchronous step-down converters (DCDC1, DCDC2, DCDC3) operate at 2.25 MHz using current-mode control. Each converter features soft-start, power-save mode for light load efficiency, short-circuit protection, and 100% duty-cycle low-dropout operation. Output voltages are I2C programmable.

4. LDO Regulators: LDO1 and LDO2 are 200mA standby LDOs that remain active in sleep mode. LS1/LDO3 and LS2/LDO4 can be configured either as load switches or as 200mA LDO regulators, providing flexibility for peripheral power management.

5. WLED Driver: A boost converter with two current sinks drives up to 10 LEDs per string at 25 mA for display backlighting. PWM dimming is supported via I2C control.

6. Control and Monitoring: The I2C interface provides access to all configuration and status registers. A two-level password scheme prevents accidental modification of critical settings. The PGOOD output indicates when all rails are within regulation, and the RESET output provides a power-on reset signal.

Pin No. Pin Name Type Function
1 VLDO2 Output LDO2 regulator output
2 VIN_LDO Power Input supply for LDO1 and LDO2
3 VLDO1 Output LDO1 regulator output
4-5 DC_IN Power DC/DC converters input supply
6-7 SW1 Output DCDC1 switch node, connect to inductor
8 FB1 Input DCDC1 feedback voltage input
9 PWR_EN Input Power enable input for DCDC converters and LDOs
10-11 SW2 Output DCDC2 switch node, connect to inductor
12 FB2 Input DCDC2 feedback voltage input
13-14 SW3 Output DCDC3 switch node, connect to inductor
15 FB3 Input DCDC3 feedback voltage input
16 LS1_IN Input Load switch 1 / LDO3 input
17 LS1_OUT Output Load switch 1 / LDO3 output
18 LS2_IN Input Load switch 2 / LDO4 input
19 LS2_OUT Output Load switch 2 / LDO4 output
20 SDA I/O I2C serial data (open drain, requires pull-up)
21 SCL Input I2C serial clock input
22 INT Output Interrupt output (active low, open drain)
26 PGOOD Output Power-good indicator output (push-pull)
27 PB_IN Input Push-button input
28 nWAKEUP Output Wakeup signal output (active low)
44 nRESET Input Reset input (active low)
46 LDO_PGOOD Output LDO power-good output (push-pull)
47 BYPASS Output Internal bypass LDO output (2.25V)
48 INT_LDO Output Internal LDO output (2.3V)

Note: Pin list is abbreviated. Full pin description including AC, USB, BAT, TS, WLED, and MUX pins is available in the datasheet. 48-pin VQFN with exposed thermal pad.

  • Industrial HMI and Panel PCs: Power management for human-machine interface systems based on AM335x processors, providing all core, memory, I/O, and peripheral voltages from a single chip.
  • Portable Data Terminals: Battery-powered barcode scanners, RFID readers, and handheld terminals where the integrated charger and power path management enable both battery and USB operation.
  • Single-Board Computers: Embedded Linux and IoT gateway platforms using Sitara processors, where the TPS65217 provides a compact, cost-effective power solution.
  • Medical and Healthcare Devices: Portable patient monitors and diagnostic equipment requiring reliable multi-rail power management with battery backup and NTC temperature monitoring.
  • IoT Edge Gateways: Smart building and industrial IoT gateways needing efficient power conversion, multiple voltage rails, and flexible power source options (USB, AC, battery).
  • Test and Measurement Equipment: Portable oscilloscopes, signal generators, and data acquisition devices where the high integration reduces PCB area and BOM cost.
  • Home Automation Controllers: Smart home hubs and building automation controllers requiring reliable operation over industrial temperature ranges with multiple communication interfaces.
Manufacturer Part Number DC-DC LDO Notes
Texas Instruments TPS65217CRSLR 3 4 Custom OTP version, same package
Texas Instruments TPS65910AA1RSLR 3 8 More LDOs, higher integration
Texas Instruments TPS650250RHBR 3 3 Simpler PMIC, 32-pin QFN
Analog Devices ADP5052ACPZ 4 2 Alternative PMIC with 4 buck converters
NXP MC34PF1550A7EP 4 6 i.MX6UL PMIC alternative
MPS MP2359DJ-LF-Z 1 0 Single buck, needs multiple ICs
