TLV74311PDBVR

300mA LDO regulator, 1.1V fixed output, 125mV dropout, 34uA low Iq, SOT-23-5

8753

Effective Inventory
Go to Inquiry

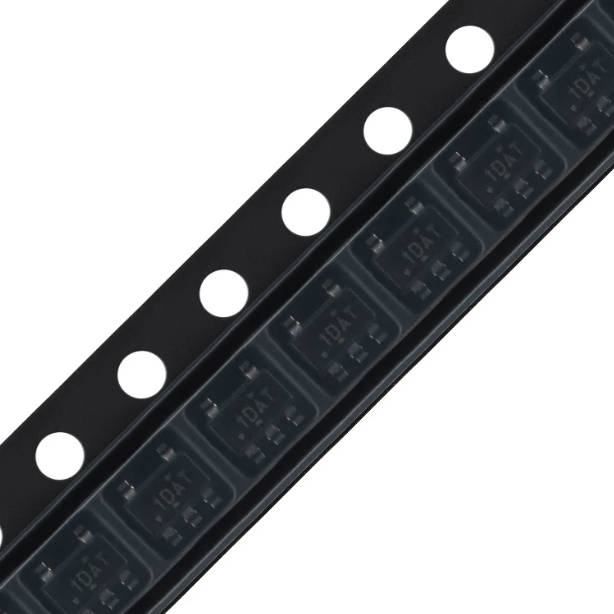

Image for reference only

Manufacturer Part：

TLV74311PDBVR

Package：

SOT-23-5 (DBV) - 2.9 x 1.6 x 1.0 mm

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

TDA4718A

TC4427AVOA713

TB67H450FNG

SI8261BCC-C-IS

RDA5856TE

PD69208MILQ-TR

PC925LENIP0F

PC923LENIP0F

Description

Product Overview

The TLV74311PDBVR is a 300-mA low-dropout (LDO) linear regulator from Texas Instruments, featuring an ultra-low quiescent current of 34 µA and a fixed output voltage of 1.1 V. Packaged in a compact SOT-23 (DBV) package with 5 pins, this device operates over an input voltage range of 1.4 V to 5.5 V and provides excellent line and load transient performance with a typical accuracy of 1%.

Designed for battery-powered and space-constrained applications, the TLV743P family offers stable operation with a minimum 1-µF ceramic output capacitor, foldback overcurrent protection, and active output discharge. The TLV74311PDBVR is characterized for operation from –40°C to 125°C and is fully RoHS and REACH compliant with NiPdAu/Sn lead finish.

Key Specifications

Parameter Value
Input Voltage Range 1.4 V to 5.5 V
Output Voltage 1.1 V (fixed)
Output Current 300 mA
Dropout Voltage 125 mV typical at 300 mA
Output Accuracy ±1% typical, ±1.4% max
Quiescent Current 34 µA typical
PSRR 50 dB at 1 kHz
Output Capacitance 1 µF minimum (ceramic)
Package SOT-23 (DBV), 5 pins
Operating Temperature –40°C to 125°C

Features

  • Ultra-low dropout: 125 mV at 300 mA (3.3 VOUT)
  • High accuracy: ±1% typical, ±1.4% maximum over temperature
  • Low quiescent current: 34 µA for battery-powered efficiency
  • Wide input voltage range: 1.4 V to 5.5 V
  • Stable with a single 1-µF ceramic output capacitor
  • Foldback overcurrent protection for inrush control
  • Active output discharge (active pulldown circuit)
  • High PSRR: 50 dB at 1 kHz for noise-sensitive circuits
  • Available in SOT-23 (5-pin) and X2SON (4-pin) packages
  • RoHS compliant, MSL Level-1-260°C-UNLIM

Applications

  • Battery-powered portable devices and wearables
  • IoT sensor nodes and wireless modules
  • Smartphones, tablets, and handheld electronics
  • Industrial sensors and control circuits
  • Post-regulation for switching power supplies
  • Low-voltage microcontroller and DSP core supplies

The TLV74311PDBVR is a member of Texas Instruments’ TLV743P family of ultra-low IQ low-dropout voltage regulators. It provides a fixed 1.1V output with 300mA of output current capability, making it ideal for powering low-voltage digital ICs, microcontrollers, and sensor modules in battery-operated systems. The device operates from a 1.4V to 5.5V input supply, supporting a wide variety of power sources including single-cell Li-ion batteries, 3.3V system rails, and 5V USB supplies.

Manufactured using TI’s advanced CMOS process, the TLV743P achieves a dropout voltage of only 125mV at full load (3.3V OUT), enabling efficient operation even at low headroom conditions. With a typical quiescent current of just 34uA, the regulator minimizes battery drain during light-load and standby conditions, a critical parameter for always-on IoT and wearable devices.

The TLV74311PDBVR is available in the industry-standard SOT-23 (DBV) 5-pin package measuring 2.9mm x 1.6mm, providing a drop-in solution for existing board layouts. The device features active output discharge, foldback current limit, and thermal shutdown protection, ensuring robust and reliable operation in demanding environments.

The TLV743P is a linear low-dropout regulator that maintains a constant output voltage by dissipating excess power across a series pass transistor. The device architecture consists of four key functional blocks:

1. Reference and Error Amplifier: A precision bandgap voltage reference generates a temperature-stable reference voltage. The error amplifier compares a fraction of the output voltage (from an internal resistive divider) against the bandgap reference and drives the gate of the PMOS pass element to regulate the output.

2. PMOS Pass Transistor: A P-channel MOSFET serves as the series pass element, providing low dropout voltage while maintaining high power supply rejection. The PMOS architecture eliminates the need for a charge pump and allows operation down to very low input voltages.

3. Foldback Current Limit: During overcurrent or short-circuit conditions, the current limit circuitry reduces the output current as the output voltage decreases, protecting both the regulator and the load. Foldback also limits inrush current during start-up and enable transitions.

4. Active Discharge Circuit: When the device is disabled (EN pin low), an internal pull-down resistor is connected to the output to quickly discharge the output capacitor to ground, preventing residual voltage from remaining on the output rail.

Pin No. Pin Name Type Function
1 IN Input Input voltage supply pin. Bypass with a 1uF or larger ceramic capacitor to ground.
2 GND Ground Ground reference for all internal circuitry.
3 EN Input Enable pin. Drive high to enable the regulator, drive low to disable and activate output discharge.
4 OUT Output Regulated output voltage pin. Connect a minimum 1uF ceramic capacitor from OUT to GND for stability.
5 NC – No internal connection. Can be left floating or connected to GND.
  • Wearable Devices: Smartwatches, fitness trackers, and health monitors where ultra-low power consumption and small form factor are critical.
  • IoT and Wireless Sensor Nodes: Battery-powered sensors for industrial monitoring, smart home, and environmental sensing applications.
  • Portable Consumer Electronics: Smartphones, tablets, Bluetooth headsets, and portable media players requiring clean, efficient power rails.
  • Post-Regulation Supplies: Second-stage regulation after a DC-DC converter, providing low-noise power for sensitive analog circuits and RF modules.
  • Industrial Control: Powering microcontrollers, ADCs, and communication interfaces in factory automation and process control equipment.
Manufacturer Part Number Package Iout Notes
Texas Instruments TLV73311PDBVR SOT-23-5 300mA Pin-compatible, similar specs
Texas Instruments TLV71311PDQNR X2SON-4 300mA Smaller package option
Microchip MCP1700T-1102E/TT SOT-23A 250mA Lower IQ alternative
DIODES Inc. AP7361-11W5-7 SOT-25 500mA Higher current capacity
Torex XC6206P112MR SOT-23 200mA Low-cost alternative
Richtek RT9193-11GB SOT-23-5 300mA Pin-compatible substitute
