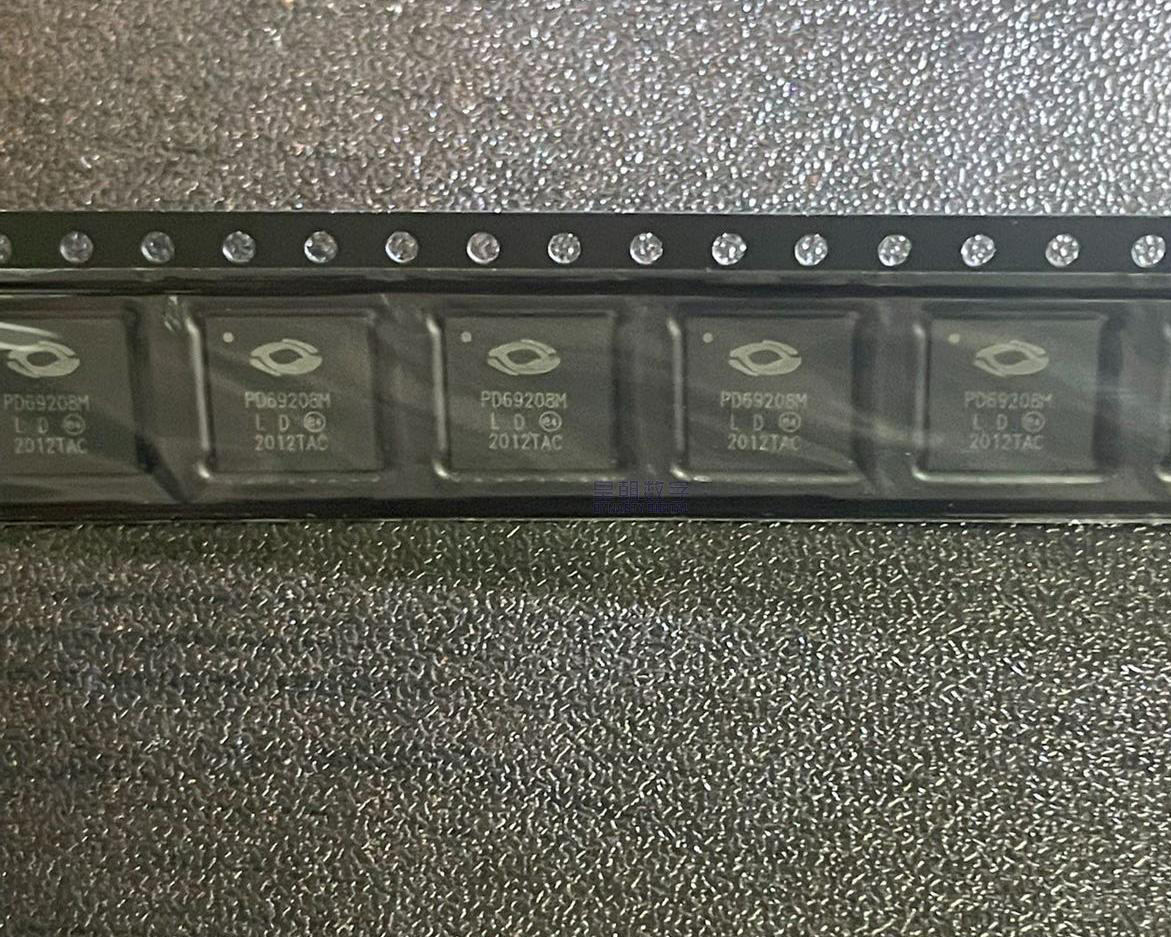

Product Overview
The PD69208MILQ-TR is an 8-port Power over Ethernet (PoE) PSE (Power Sourcing Equipment) controller designed for high-density PoE switches and midspan injectors. Supporting the IEEE 802.3bt standard (PoE++), this device can deliver up to 90W per port over standard Ethernet cabling, enabling power delivery to high-power devices such as PTZ cameras, thin clients, and 5G small cells. The MILQ variant features enhanced ESD protection and comes in a compact QFN package, making it suitable for enterprise networking equipment, industrial Ethernet switches, and smart building infrastructure.
Key Specifications
| Standard Compliance | IEEE 802.3bt (PoE++) |
| Number of Ports | 8 |
| Max Power per Port | 90 W (Type 4, 4-pair) |
| Port Management | 4-pair / 2-pair configurable |
| Host Interface | I²C / SMBus |
| Detection Method | 4-point resistance detection |
| DC Input Voltage | 50V to 57V |
| Current Sensing | Integrated 12-bit ADC |
| Power Management | Per-port power monitoring and budgeting |
| Operating Temperature | -40°C to +85°C |
| Package Type | QFN-48 / MILQ (7 x 7 mm) |
Features
- 8-port PoE++ controller compliant with IEEE 802.3bt
- Up to 90W per port with 4-pair power delivery
- Integrated 12-bit ADC for per-port current sensing
- I²C/SMBus serial host interface
- Enhanced ESD protection on all port pins
- Compact 7×7 mm QFN-48 package
- Enterprise PoE switches and routers
- PoE midspan injectors (multi-port)
- Industrial Ethernet switches
- Smart building and IoT infrastructure
- IP surveillance camera systems
- 5G small cell power delivery
- Digital signage and kiosks
- Wireless access points (high-power Wi-Fi 6E)
- Enterprise layer 2/3 PoE switches (8/16/24/48-port)
- Multi-port PoE midspan injectors for network upgrades
- Industrial Ethernet switches with PoE++ support
- IP surveillance NVR systems with high-power PTZ cameras
- 5G small cell and distributed antenna system (DAS) powering
- Smart building PoE lighting and IoT gateway infrastructure
- Automotive Electronics: All automotive-grade components pass AEC-Q series certification, featuring excellent stability and durability to adapt to complex vehicle operating environments.
- Medical Devices: High-reliability components meet medical industry safety and compliance regulations, ensuring stable operation for medical equipment.
- Industrial Control & Consumer Electronics: Products conform to universal international electronic industry standards, suitable for long-term continuous operation of various equipment.
- Accepted Payment Methods
- T/T (Bank Wire Transfer): The primary settlement method for bulk orders and a widely used international payment channel.
- PayPal: Ideal for small orders, sample orders and quick payments.
Settlement Currency
US Dollar (USD) is the default settlement currency. RMB is available for domestic customers.
Bank Charges
All transfer fees, intermediary bank charges and other remittance-related expenses shall be borne by the buyer.
- Payment Requirements
- Sample and small orders: Shipment will be arranged upon full payment.
- In-stock bulk orders: Goods will be delivered within 2 to 3 working days after full payment.
- Logistics Partners
- International Express: DHL, FedEx, UPS, TNT
- Economy Logistics: Air freight and sea freight for large-volume cargo
- Domestic Delivery: SF Express, Yunda Express
- Order Processing Time
- In-stock items: Orders confirmed and fully paid before 14:00 (GMT+8) will be shipped on the same day. All other orders will be dispatched within 1 to 2 working days.
- Out-of-stock or sourced items: The delivery lead time will be confirmed separately according to brand and inventory status.
- Estimated Transit Time
- International Express: 3 – 7 working days globally
- Air Freight: 7 – 12 working days
- Sea Freight: 25 – 40 working days for heavy and large bulk cargo
- Shipping Fee Rules
- Shipping cost is calculated based on package weight, volume, destination and delivery method.
- Both freight prepaid and freight collect are available. Please provide your courier account number in advance if you choose freight collect.
- Free international express delivery is offered for large orders. Terms for long-term partners can be negotiated separately.
- Shipment Tracking
Within 24 hours after dispatch, we will send the tracking number, commercial invoice, packing list and other documents to your email or communication account. You may check the shipment status online in real time.
MOQ & Sample Service
We support flexible minimum order quantities for samples, small-batch and large-batch orders. All sample orders shall comply with the above shipping and payment policies.
Packaging Standard
All electronic components are packed with professional anti-static and shockproof materials. Original factory packaging is available for branded chips and integrated circuits.
Import Duties & Taxes
All import duties, customs clearance fees and local taxes incurred for international shipments shall be borne by the buyer. We will provide complete customs documents to assist you with clearance procedures.
- Handling of Lost or Damaged Goods
- In case of loss or severe damage during transit, please contact us within 48 hours after receiving the tracking information. We will assist you in filing a claim with the logistics provider.
- We shall not be liable for any losses caused by incorrect delivery address, wrong contact information or the buyer’s refusal to complete customs clearance.
- Address: Room 2919, Guoli Building, Huaqiang North, Futian District, Shenzhen, Guangdong Province, China
- Business Hours: 09:00 – 18:00, Monday to Friday. Closed on weekends and official public holidays.
- Notice: Please make an appointment via email or communication tools one day in advance, and present your order information upon pickup.
- All components are packed separately to avoid damage caused by friction and collision;
- Shockproof buffer materials are added for fragile products to ensure transportation safety;
- Each package is clearly marked with part number, quantity, batch number and specifications for easy inventory counting and management.
- Anti-static Packaging: Static-sensitive components such as chips, circuit boards and sensors are packaged with anti-static bags, shielding boxes and conductive foam in strict accordance with international anti-static standards to prevent static damage.
- Vacuum Moisture-proof Packaging: Moisture-sensitive components are vacuum-sealed with desiccants to isolate humid air, suitable for ocean transportation and long-term storage.
- Original Factory Packaging: Integrated circuits of brands such as NXP are delivered with original reels, trays or tubes by default, retaining complete original packaging and adapting to automated SMT production lines.
- Discrete Device Packaging: Discrete devices such as SMD resistors, power resistors and LEDs are quantitatively and classifiedly packaged with accurate quantity and clear marking.
- Connector / Aviation Connector Packaging: Hard outer packaging is adopted to prevent pin bending and structural deformation.
Applications
The PD69208MILQ-TR is an 8-port Power over Ethernet PSE (Power Sourcing Equipment) controller that fully supports the IEEE 802.3bt standard (also known as PoE++ or Type 4), enabling delivery of up to 90W of power per port over all four pairs of standard Category 5e/6 Ethernet cables. Manufactured by Microchip Technology (formerly Microsemi), this highly integrated device combines all the necessary functions for implementing a multi-port PoE system, including PD detection, classification, port power management, and fault protection. Each port features built-in current sensing via an integrated 12-bit ADC, allowing precise monitoring of power consumption at the individual port level for efficient power budget management. The PD69208 supports both 2-pair and 4-pair power delivery modes, with automatic detection and classification of connected PD devices including legacy (pre-standard) PoE devices. The host system communicates with the PD69208 via an I²C/SMBus interface, providing access to detailed port status information, power consumption data, and configuration registers. The MILQ variant incorporates enhanced electrostatic discharge (ESD) protection on all port interface pins, improving robustness in field-deployed equipment where cable handling and lightning-induced transients are common concerns. Packaged in a thermally efficient 7×7 mm QFN-48, the PD69208 enables high-density PoE port designs for next-generation enterprise and industrial networking equipment.
The PD69208MILQ-TR operates as the central control element in a PoE PSE system, managing the detection, classification, and power delivery to connected Powered Devices (PDs) across 8 independent ports. When a cable is connected to a port, the controller initiates a four-point resistance detection sequence to verify the presence of a valid PD signature (25kΩ characteristic resistance). This detection process uses low-voltage probing to avoid damaging non-PoE devices. After successful detection, the device performs classification by measuring the current drawn at specific voltage levels to determine the PD’s power class (Class 0 through Class 8 for 802.3bt). The integrated gate drivers control external MOSFETs that switch the 48-57V DC power onto the Ethernet pairs. Each port has dedicated current-sense circuitry that continuously monitors the port current, with the 12-bit ADC providing high-resolution current measurements to the host via the I²C interface. The PD69208 implements comprehensive protection features including overcurrent shutdown, overvoltage protection, and thermal monitoring. Power management is handled through configurable power budgeting, where the host can allocate total power across all 8 ports based on system capabilities and priority settings. The device supports both auto-classification and manual classification modes, with per-port status registers providing real-time information on detection state, class assignment, fault conditions, and power consumption.
| Pin Group | Count | Type | Function |
|---|---|---|---|
| Port Gate Drivers | 8 | Output | Gate drive outputs for external port MOSFETs |
| Port Sense Pins | 8 | Input | Current sense inputs (one per port) |
| Detection Pins | 8 | I/O | Port detection and voltage sense pins |
| I²C Interface | 2 | I/O | SCL (clock) and SDA (data) |
| Interrupt Output | 1 | Output | INT – open-drain interrupt to host |
| Address Select | 3 | Input | Chip address configuration pins |
| Supply Pins | – | Power | VDD (digital), VEE (analog), AGND, DGND |
| Thermal Pad | 1 | Power | Exposed pad for thermal dissipation (GND) |
| Manufacturer | Part Number | Package | Notes |
|---|---|---|---|
| Broadcom | BCM59111 | QFN-64 | 12-port PoE++ PSE controller |
| TI | TPS23881 | QFN-56 | 8-port PoE++ PSE controller, 90W/port |
| MaxLinear | MXL86208 | QFN-48 | 8-port PoE PSE controller |
| Microchip | PD69108 | QFN-48 | 8-port PoE PSE (802.3af/at only) |
