SI8261BCC-C-IS

Isolated gate driver, 4A peak output, 12V UVLO, 5kV isolation, 10kV surge, 60ns delay, SOIC-8, AEC-Q100

9485

Effective Inventory
Go to Inquiry

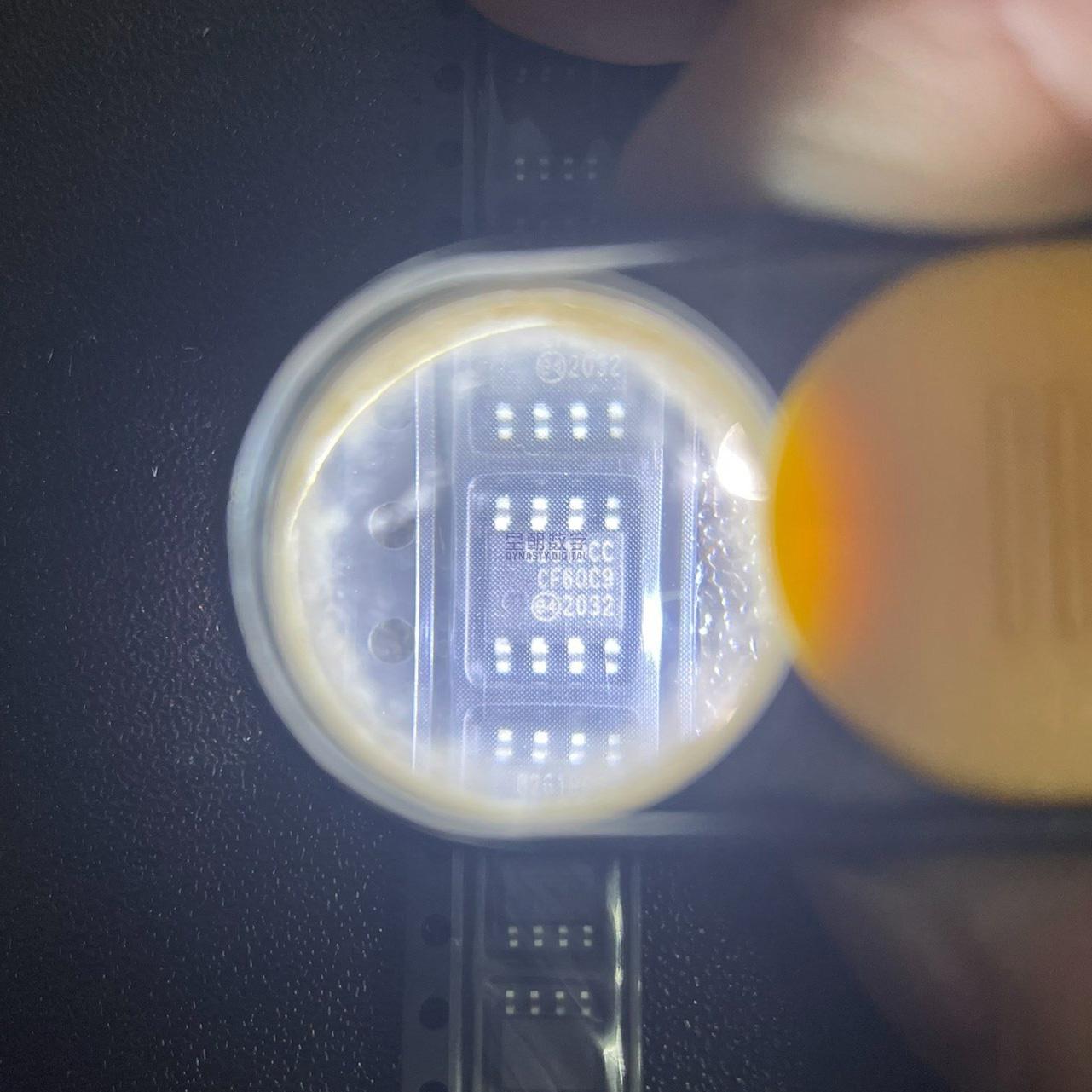

Image for reference only

Manufacturer Part：

SI8261BCC-C-IS

Package：

SOIC-8 (Narrow Body)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

RDA5856TE

PD69208MILQ-TR

PC925LENIP0F

PC923LENIP0F

OC5A2B00

NCV887103D1R2G

NAE12S17-A

MIC4428YM

Description

Product Overview

The SI8261BCC-C-IS is an isolated gate driver from Skyworks Solutions (formerly Silicon Labs) that provides a pin-compatible, drop-in replacement for popular opto-coupled gate drivers. Based on proprietary silicon isolation technology, it supports up to 5.0 kVRMS withstand voltage per UL1577 and 10kV surge protection per VDE 0884-10. The ‘B’ variant provides 4A peak output drive current, the ‘C’ variant has 12V UVLO, and the device is packaged in SOIC-8. It offers superior performance compared to opto-coupled drivers including tighter part-to-part matching, better CMTI, and improved reliability over temperature and time.

Key Specifications

Manufacturer Skyworks Solutions (Silicon Labs)
Product Category Isolated Gate Driver
Isolation Voltage (UL1577) 5.0 kVRMS
Surge Voltage (VDE 0884-10) 10 kV
Peak Output Current 4.0 A (B variant)
UVLO Threshold 12V (C variant)
Supply Voltage Range 6.5V to 30V
Propagation Delay 60 ns (max)
Common Mode Transient Immunity >50 kV/μs typical
Number of Drivers 1 (single channel)
Output Type Rail-to-rail
Operating Temperature Range -40°C to +125°C
Package SOIC-8 (narrow body)
Qualification AEC-Q100 automotive qualified
Pin Compatible ACPL-3120, HCPL-3120, HCNW3120

Features

  • Pin compatible drop-in replacement for opto-coupled gate drivers
  • 4.0A peak output drive current (B variant)
  • 12V UVLO threshold with hysteresis (C variant)
  • 5.0 kVRMS isolation rating per UL1577
  • 10 kV surge withstand capability
  • Rail-to-rail output voltage
  • High common mode transient immunity: >50 kV/μs
  • 60ns propagation delay, independent of input current
  • Low power diode emulator input simplifies design
  • Tighter part-to-part matching vs opto-drivers (14x better)
  • 10x lower FIT rate, longer service life
  • Superior performance vs temperature and age
  • AEC-Q100 automotive qualified
  • Wide VDD range: 6.5V to 30V
  • SOIC-8 narrow body package

Applications

  • IGBT and MOSFET gate drive circuits
  • Industrial motor drives and inverters
  • Renewable energy inverters (solar, wind)
  • Hybrid and electric vehicle inverters
  • AC, brushless, and DC motor control
  • Switch mode power supplies (SMPS)
  • Uninterruptible power supplies (UPS)
  • Consumer white goods motor control

The SI8261BCC-C-IS is a single-channel isolated gate driver from Skyworks Solutions’ Si826x family, designed as a high-performance replacement for opto-coupled gate drivers. Utilizing Skyworks’ proprietary CMOS-based digital isolation technology instead of optoelectronic components, this device provides significantly better performance, reliability, and stability compared to traditional opto-drivers. The BCC designation indicates 4A peak output current (B), 12V undervoltage lockout (C), and the -IS suffix specifies the SOIC-8 industrial temperature package. The silicon isolation technology supports 5.0 kVRMS withstand voltage per UL1577 and 10kV surge protection per VDE 0884-10. The device operates from a 6.5V to 30V supply and provides rail-to-rail output drive. Unlike opto-coupled drivers, the Si8261’s propagation delay is independent of input drive current, resulting in consistent 60ns maximum delay and much tighter part-to-part matching. With common mode transient immunity exceeding 50 kV/μs and 10x lower FIT rates than opto-drivers, the SI8261BCC is ideal for demanding applications including industrial motor drives, renewable energy inverters, and automotive systems. AEC-Q100 qualification ensures reliability in automotive environments.

The SI8261BCC-C-IS uses Skyworks’ proprietary RF-based digital isolation technology to transmit control signals across the isolation barrier, rather than relying on an LED and photodiode as in opto-coupled drivers. On the input side, a diode emulator circuit mimics the behavior of an LED, accepting a forward current input (similar to driving an optocoupler LED) and converting it into a digital signal. This digital signal modulates a high-frequency RF carrier that is transmitted across the silicon dioxide isolation barrier to the secondary side. On the output side, the received RF signal is demodulated back into a digital control signal that drives the output stage. The output stage is a push-pull driver capable of sourcing and sinking up to 4A of peak current, with rail-to-rail output swing. The 12V UVLO (undervoltage lockout) circuit monitors the output side supply voltage and ensures the output stays in a safe state (low) when VDD is below the threshold, preventing insufficient gate drive voltage that could cause power switch damage. This all-silicon approach eliminates the LED aging effects and temperature-dependent characteristics that degrade opto-coupler performance over time, resulting in much higher reliability and more consistent performance.

Pin Number Pin Name Description
1 ANODE Diode Emulator Anode (Input Side)
2 CATHODE Diode Emulator Cathode (Input Side)
3 NC No Connection
4 GND1 Input Side Ground
5 GND2 Output Side Ground
6 VOUT Gate Drive Output
7 VDD2 Output Side Power Supply (6.5-30V)
8 NC No Connection

Note: SOIC-8 package. Pin 1 is marked by dot/bevel on package. Verify exact pinout with official datasheet.

  • IGBT and power MOSFET gate drive circuits
  • Industrial motor drives and variable frequency drives
  • Solar photovoltaic inverters and renewable energy systems
  • Hybrid and electric vehicle powertrain inverters
  • AC induction, BLDC, and DC motor control
  • Isolated switch-mode power supplies (SMPS)
  • Uninterruptible power supply (UPS) systems
  • Consumer appliances with motor control
Model Manufacturer Description
SI8261ACC-C-IS Silicon Labs 0.6A version, same package
HCPL-3120 Broadcom 2.5A opto-coupled gate driver
ACPL-3130 Broadcom 2.5A opto-coupled gate driver
6N137 Onsemi/Broadcom High speed optocoupler
SI8271 Silicon Labs Dual isolated gate driver
