TB67H450FNG

PWM chopper type brushed DC motor driver, 50V/3.5A, 4 modes, HSOP8, Toshiba BiCD process

12300

Effective Inventory
Go to Inquiry

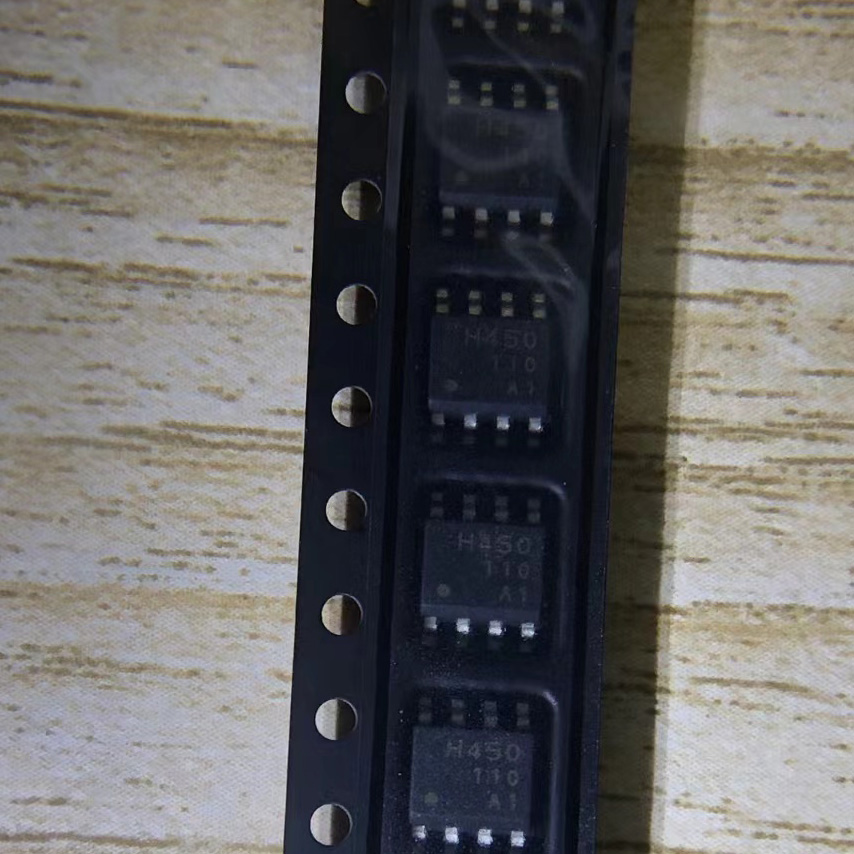

Image for reference only

Manufacturer Part：

TB67H450FNG

Package：

HSOP-8 (4.9 x 6.0 mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

TDA4718A

TC4427AVOA713

SI8261BCC-C-IS

RDA5856TE

PD69208MILQ-TR

PC925LENIP0F

PC923LENIP0F

OC5A2B00

Description

Product Overview

The TB67H450FNG is a PWM chopper type brushed DC motor driver IC from Toshiba Electronic Devices & Storage Corporation, manufactured using their advanced BiCD process that integrates bipolar, CMOS, and DMOS technologies on a single chip. Rated for 50 V output voltage and 3.5 A peak output current, it provides a compact HSOP8 solution for driving brushed DC motors with high efficiency and robustness. The device supports four operating modes (Forward, Reverse, Brake, Stop/Standby) controlled via two logic input pins, and features both PWM constant current drive and direct PWM drive modes. With low on-resistance of 0.6 Ω (High side + Low side, typical), integrated VCC regulator, and comprehensive protection circuits (thermal shutdown, over-current detection, under-voltage lockout), the TB67H450FNG minimizes external component count and PCB space. The ultra-low standby current of 1 µA maximum makes it particularly suitable for battery-powered and energy-sensitive applications.

Key Specifications

Motor Driver Type Brushed DC Motor (1-channel H-bridge)
Process Technology BiCD (Bipolar + CMOS + DMOS)
Output Voltage (max) 50 V
Operating VM Range 4.5 V to 44 V
Output Current (peak) 3.5 A
On-Resistance (total) 0.6 Ω typ. (High + Low side)
Drive Modes PWM constant current + direct PWM
Operation Modes Forward / Reverse / Brake / Stop (Standby)
Standby Current 1 µA max. @ VM=24V
Logic Input Voltage 2.0-5.5 V high, 0-0.8 V low
Current Sense External RS resistor + VREF pin (1/10 gain)
Protection TSD (thermal), ISD (over-current), UVLO (under-voltage)
Operating Temperature -40°C to +85°C
Package HSOP-8 (4.9 x 6.0 mm, exposed pad)

Features

  • Monolithic BiCD process motor driver IC
  • 50 V / 3.5 A rated H-bridge output
  • Wide operating voltage: 4.5 V to 44 V
  • Low on-resistance: 0.6 Ω typ. (High + Low side)
  • PWM constant current drive and direct PWM drive
  • 4 operation modes: Forward, Reverse, Brake, Stop (Standby)
  • Ultra-low standby current: 1 µA maximum
  • Built-in VCC regulator for internal circuitry
  • Internal charge pump for high-side gate drive
  • Thermal shutdown (TSD) protection
  • Over-current detection (ISD) protection
  • Under-voltage lockout (UVLO) protection
  • Compact HSOP8 surface mount package with heat sink pad
  • RoHS compliant, lead-free
  • General-purpose pinout for easy design-in

Applications

  • Robot vacuum cleaners and home appliances
  • Office automation and financial equipment
  • Battery-powered devices (electronic locks, small robots)
  • USB-powered motor applications
  • Industrial control and factory automation
  • Consumer electronics with DC motors
  • CCTV camera pan/tilt mechanisms
  • Automotive auxiliary motor drives

The TB67H450FNG is a PWM chopper type brushed DC motor driver IC from Toshiba, fabricated using their proprietary BiCD process integrating bipolar, CMOS, and DMOS technologies. Rated for 50 V output voltage and 3.5 A peak current, it supports four operating modes: forward, reverse, brake, and stop (standby). The device features low on-resistance output MOSFETs (High side + Low side = 0.6 Ω typical) and both PWM constant current drive and direct PWM drive modes. Built-in protection circuits include thermal shutdown (TSD), over-current detection (ISD), and under-voltage lockout (UVLO). With a wide 4.5 V to 44 V operating voltage range and ultra-low standby current of 1 µA maximum, it is ideal for battery-powered devices, home appliances, OA equipment, and industrial applications.

The TB67H450FNG integrates an H-bridge power stage, pre-driver, current sense comparator, PWM control logic, and protection circuits in a single chip. In PWM constant current mode, the motor current is regulated by comparing the voltage across the external current sense resistor (RS pin) with the reference voltage (VREF pin) through a gain of 1/10. When the peak current reaches the set level, the PWM cycle switches to the decay phase. The IN1 and IN2 logic inputs select between four operating modes: forward (IN1=H, IN2=L), reverse (IN1=L, IN2=H), short brake (IN1=H, IN2=H), and stop/standby (IN1=L, IN2=L). In stop mode, both outputs are high-impedance and the IC enters standby mode with minimal power consumption (1 µA typ.). An internal charge pump provides the gate drive voltage for the high-side MOSFETs, and an internal VCC regulator powers the control logic. The BiCD process enables high voltage capability, low on-resistance, and efficient monolithic integration of analog and digital circuits.

Pin No. Pin Name Type Description
1 GND Power Ground pin (large thermal pad)
2 IN2 Input Logic input 2 (2.0-5.5V high, 0-0.8V low)
3 IN1 Input Logic input 1 (2.0-5.5V high, 0-0.8V low)
4 VREF Input Motor output current reference voltage (0V to 4.0V)
5 VM Power Motor power supply (4.5V to 44V operating, 50V max)
6 OUT1 Output Motor output pin 1 (H-bridge side A)
7 RS Output Motor output current sense pin (connect sense resistor to GND)
8 OUT2 Output Motor output pin 2 (H-bridge side B)

Package: P-HSOP8-0405-1.27 (8-pin heat sink SOP), 4.9mm x 6.0mm body, exposed pad for improved thermal dissipation.

  • Home appliances (robot vacuum cleaners, refrigerators)
  • Office automation and financial equipment
  • Battery-powered devices (electronic locks, small robots)
  • USB-powered motor applications
  • Industrial control equipment
  • Consumer electronics with motors
  • Automotive sub-systems (5V/12V motors)
  • CCTV camera pan/tilt mechanisms
Model Voltage Current Package Description
TB6612FNG 15V 1.2A SSOP24 Dual-channel motor driver
TB67H451FNG 50V 3.5A HSOP8 Newer generation, higher efficiency
DRV8870 37V 3.6A HSOP8 TI equivalent pin-compatible
A4950 40V 3.5A SOIC8 Allegro alternative
L298N 46V 3A Multiwatt15 Classic dual H-bridge, through-hole
