TDA4718A

Voltage-mode SMPS controller, push-pull outputs, 250kHz, feed-forward control, DIP-18, Infineon

3120

Effective Inventory
Go to Inquiry

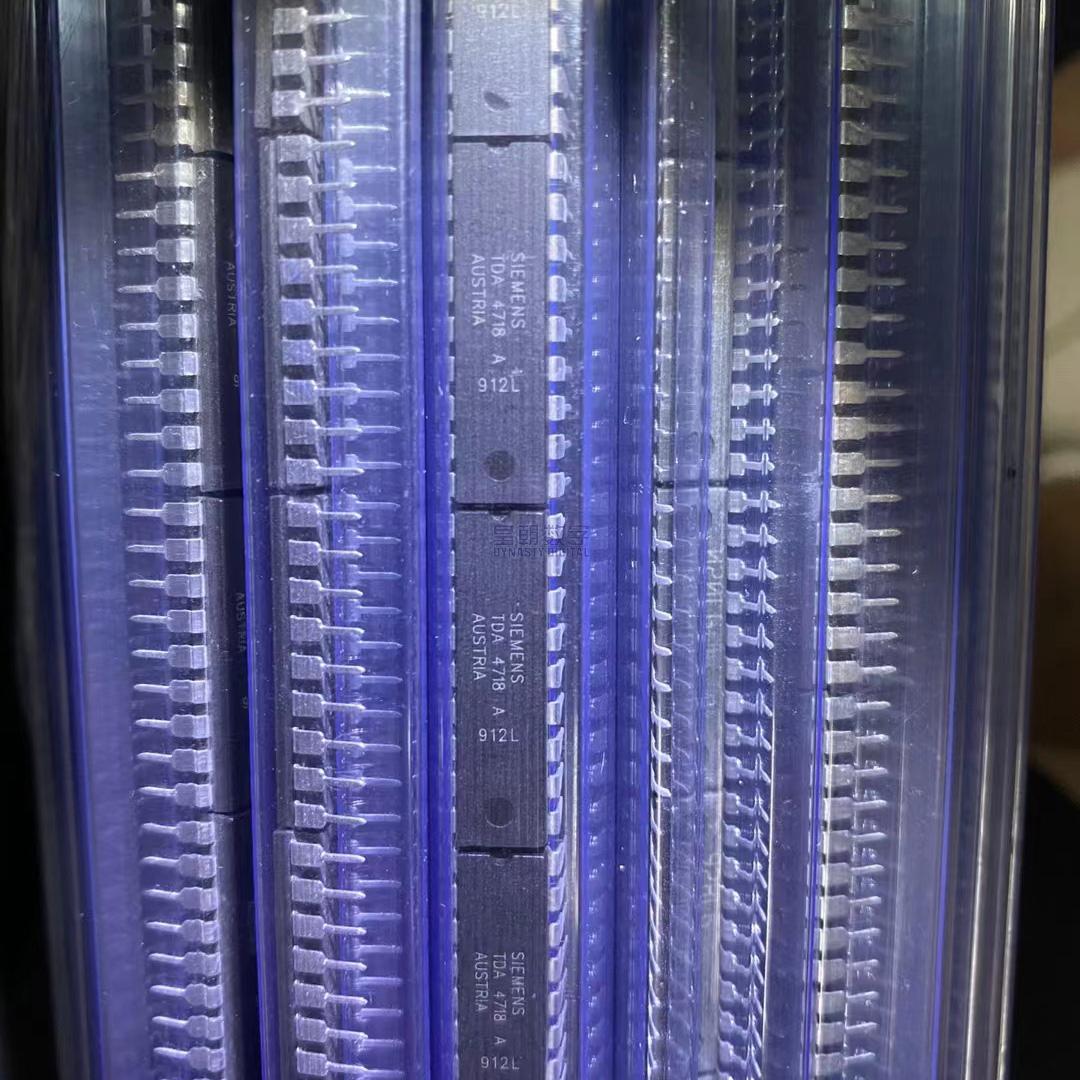

Image for reference only

Manufacturer Part：

TDA4718A

Package：

PDIP-18 (22.86 x 6.35 mm, through-hole)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

TC4427AVOA713

TB67H450FNG

SI8261BCC-C-IS

RDA5856TE

PD69208MILQ-TR

PC925LENIP0F

PC923LENIP0F

OC5A2B00

Description

Product Overview

The TDA4718A is a versatile voltage-mode switching power supply controller from Infineon Technologies (originally developed by Siemens Semiconductor), designed for single-ended, push-pull, half-bridge, and full-bridge converter topologies. Built in bipolar technology and packaged in an 18-pin PDIP, this IC integrates both digital and analog functions required for high-quality SMPS design, including a VCO-based oscillator, two push-pull output drivers, error amplifier, multiple protection comparators, and a reference voltage source. Operating from a 10.5 V to 30 V supply and supporting switching frequencies up to 250 kHz, it features feed-forward control for excellent line transient response, dynamic output current limitation, overvoltage and undervoltage protection, soft start, and double pulse suppression. Although designated ‘not for new design’, the TDA4718A remains a proven and reliable solution in industrial power supplies, legacy equipment, and applications where its specific combination of features and push-pull drive capability are required.

Key Specifications

Controller Type Voltage-mode SMPS controller
Technology Bipolar
Topology Support Flyback, forward, push-pull, half-bridge, full-bridge
Supply Voltage (VCC) 10.5 V to 30 V
Supply Current 30 mA typical
Switching Frequency (max) 250 kHz
Output Configuration Push-pull (2 outputs, Q1 & Q2)
Output Current (per channel) 70 mA max
Reference Voltage 5.0 V (±2%)
Oscillator VCO with external RT/CT components
Soft Start Yes (external capacitor)
Feed-Forward Control Yes (line hum suppression)
Overvoltage Protection Yes
Undervoltage Protection Yes
Dynamic Current Limiting Yes (2 comparators)
Double Pulse Suppression Yes
Operating Temperature -25°C to +85°C
Package PDIP-18 (through-hole)

Features

  • Voltage-mode PWM controller for SMPS
  • Push-pull output configuration (Q1 and Q2)
  • Feed-forward control for line hum suppression
  • Dynamic output current limitation
  • Overvoltage and undervoltage protection
  • Soft start with external capacitor
  • Double pulse suppression
  • Integrated VCO with external frequency setting
  • Internal 5 V reference voltage output
  • Error amplifier with compensation pin
  • Synchronization input and output
  • Symmetry inputs for push-pull converters
  • Versatile topology support: flyback, forward, push-pull, half-bridge, full-bridge
  • Through-hole DIP-18 package for easy prototyping
  • Proven reliability in industrial applications

Applications

  • Industrial switching power supplies
  • Push-pull and bridge converter designs
  • Consumer electronics power supplies
  • Telecom and datacom power systems
  • Motor speed control circuits
  • Voltage multipliers
  • Legacy equipment repair and replacement
  • DC-DC converter modules
  • OEM power supply designs

The TDA4718A is a bipolar voltage-mode switching power supply controller from Infineon Technologies (formerly Siemens Semiconductor), designed for use in single-ended, push-pull, half-bridge, and full-bridge converter topologies. Fabricated in bipolar technology and housed in an 18-pin DIP package, it operates over a supply voltage range of 10.5 V to 30 V and provides two push-pull output drivers capable of 70 mA output current at switching frequencies up to 250 kHz. Key features include feed-forward control for line hum suppression, dynamic output current limitation with programmable threshold, overvoltage and undervoltage protection, soft start functionality, and double pulse suppression. The integrated VCO with external frequency setting and the reference voltage output provide a complete SMPS control solution. While classified as ‘not for new design’, the TDA4718A remains widely used in industrial power supplies, consumer electronics, and legacy equipment where its proven reliability and versatile topology support are essential.

The TDA4718A uses a voltage-mode control architecture where the output voltage is compared to a reference by the error amplifier, and the resulting error signal is compared with a ramp signal to determine the PWM duty cycle. The feed-forward control feature allows the ramp generator amplitude to track the input line voltage, providing immediate line regulation without waiting for the feedback loop to respond — this is effective for suppressing line hum and fast line transients. The voltage-controlled oscillator (VCO) generates the switching frequency determined by external RT and CT components. Two push-pull outputs (Q1 and Q2) provide complementary drive signals with dead time for driving external power switches in push-pull or bridge configurations. A soft-start capacitor slowly charges to bring the outputs up gradually, preventing inrush current. The error flip-flop monitors multiple fault conditions including overvoltage, undervoltage, and dynamic overcurrent, and disables the outputs upon detection, re-enabling them after the fault clears via soft-start. The double pulse suppression prevents consecutive pulses from exceeding the maximum duty cycle limit.

Pin No. Symbol Description
1 GND Ground (0 V reference)
2 CR Ramp generator capacitor
3 RR Ramp generator resistor
4 +K2 Non-inverting input of comparator K2
5 SYNC Synchronization input
6 IUV Undervoltage detection / ON/OFF input
7 IOV Overvoltage detection input
8 DYN(-) Dynamic current limitation (-) input
9 DYN(+) Dynamic current limitation (+) input
10 VREF Reference voltage output
11 VS Supply voltage (10.5 V to 30 V)
12 Q2 Output driver Q2 (push-pull)
13 Q1 Output driver Q1 (push-pull)
14 QSYNC Synchronization output
15 CSS Soft start capacitor
16 RT VCO timing resistor
17 CT VCO timing capacitor
18 CF Filter capacitor (error amplifier compensation)
  • Industrial switching power supplies
  • Push-pull and half-bridge converters
  • Consumer electronics power modules
  • Telecom and datacom power systems
  • Motor speed control circuits
Model Manufacturer Mode Description
TDA4718 Infineon Voltage Original version
TL494 TI Voltage Industry standard equivalent
SG3525 Microchip Voltage Popular push-pull controller
UC3846 TI Current Current-mode push-pull controller
KA7500 Fairchild Voltage TL494-compatible alternative
