W79E632A40PL

The W79E632A40PL is a high-performance 8-bit microcontroller from Nuvoton Technology, featuring an enhanced 8051-compatible CPU core with 1T (single-clock) architecture that delivers up to 12 times the performance of a traditional 8051 at the same clock frequency. With a maximum operating frequency of 40MHz, this MCU provides significant processing power for embedded control applications while maintaining full software compatibility with the vast 8051 codebase.

The device integrates 64KB of Flash program memory supporting both In-System Programming (ISP) and In-Application Programming (IAP). ISP allows firmware updates through a serial interface without removing the chip from the target board, while IAP enables the application code to modify the Flash memory during runtime – useful for storing user parameters, calibration data, or implementing field-upgradable firmware. A dedicated 4KB LDROM (Loader ROM) stores the ISP bootloader code, ensuring that the main program memory can be safely reprogrammed.

Peripheral features are comprehensive: four 16-bit timers/counters, six independent PWM channels suitable for motor control and LED dimming, a 12-channel 10-bit SAR ADC for analog sensor interfacing, two enhanced UARTs, SPI master/slave interface, I2C master/slave interface, and a watchdog timer. Up to 40 general-purpose I/O pins provide ample connectivity for user interfaces and external devices.

The W79E632 includes an internal 22.1184MHz RC oscillator with +-1% accuracy, eliminating the need for an external crystal in many cost-sensitive applications. The device operates over a wide voltage range of 2.4V to 5.5V and is fully specified for the industrial temperature range of -40 degC to +85 degC. The PLCC-44 package offers the convenience of socketed designs, making it particularly suitable for prototyping, low-volume production, and applications where field replacement may be required.

The W79E632 is an 8051-compatible microcontroller built around a highly optimized 1T core architecture. Here are the key aspects of its operation:

1. 1T 8051 Core: The CPU executes most instructions in 1 clock cycle (1T), compared to the original 8051 which required 12 clock cycles per machine cycle. This 12x performance improvement means that at 40MHz, the W79E632 delivers performance equivalent to a 480MHz classic 8051. The core includes all standard 8051 features: 8-bit ALU, accumulator, B register, program status word, stack pointer, DPTR data pointer, and two banks of 8 general-purpose registers.

2. Memory Architecture:
– Program Memory: 64KB Flash mapped from 0000h to FFFFh. Executed directly from Flash with zero-wait-state access at frequencies up to 40MHz.
– Data Memory: 256 bytes of directly-addressable internal RAM (lower 128B direct/indirect, upper 128B indirect only), plus 1024 bytes of XRAM (extended RAM) accessible via MOVX instructions.
– LDROM: 4KB separate Flash block at separate address space, containing the ISP bootloader.

3. Flash Programming (ISP/IAP): The 64KB Flash can be programmed via ISP (In-System Programming) through the UART or other interface, using code resident in the LDROM. IAP (In-Application Programming) allows user code in the main Flash to erase and reprogram Flash pages during runtime, enabling data storage or self-updating firmware. Flash endurance is typically 10,000 erase/write cycles with 10-year data retention.

4. I/O Ports: Four 8-bit I/O ports (P0, P1, P2, P3) provide up to 32 I/O lines, with additional I/O available through other pins. Each pin can be configured as quasi-bidirectional, push-pull, open-drain, or input-only with pull-up, providing flexibility for different load conditions and interface requirements.

5. Timers and PWM: Four 16-bit timers/counters (Timer 0, 1, 2, 3) support standard 8051 timer modes plus additional modes. Six PWM channels provide independent pulse-width modulation outputs, each with its own period and duty cycle control, suitable for motor speed control, LED dimming, and other applications requiring variable duty-cycle signals.

6. ADC: A 10-bit successive approximation register (SAR) ADC with 12 multiplexed analog input channels converts analog voltages from sensors and other analog sources to digital values for processing by the CPU. Conversion time is programmable.

7. Serial Interfaces: Two UARTs provide serial communication (one with enhanced features including frame error detection and automatic address recognition), an SPI interface supports master and slave modes, and an I2C interface supports both master and slave operation at multiple speed grades.

8. Clock and Reset: An internal 22.1184MHz RC oscillator provides default clocking, or an external crystal/oscillator can be used for higher accuracy. Integrated power-on reset (POR) and brown-out detection (BOD) eliminate the need for external reset circuits in most applications.

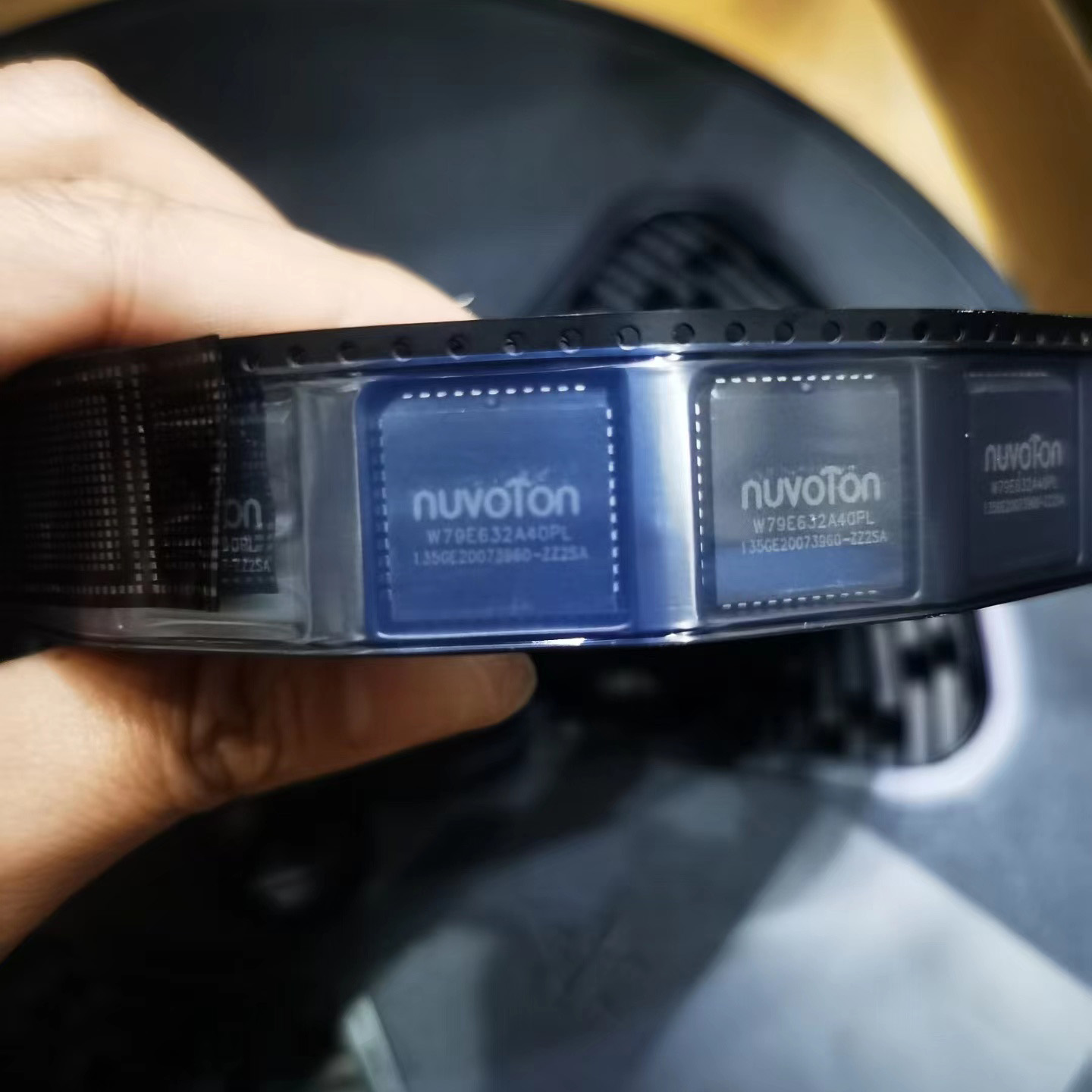

Package: PLCC-44 (Plastic Leaded Chip Carrier). 44 pins, 16.59mm x 16.59mm body, 1.27mm (0.05 inch) lead pitch. J-lead configuration suitable for through-hole sockets or surface mounting. Pin 1 is marked by a dot/notch on the package top.

• Industrial Control and Automation: PLC I/O modules, sensor data concentrators, small machine controllers, and factory automation equipment where the 8051’s proven architecture, rich peripheral set, and industrial temperature range provide reliable operation in demanding factory environments.
• Home Appliances and Consumer Electronics: Washing machines, air conditioners, refrigerators, rice cookers, and other home appliances requiring motor control, sensor interfaces, and user interface handling, leveraging the 6-channel PWM for motor control and 12-channel ADC for temperature and other sensor measurements.
• Motor and Fan Controllers: Brushless DC (BLDC) motor controllers, AC fan regulators, and pump controllers, using the PWM outputs for speed control, ADC for current/temperature sensing, and timers for commutation timing in sensorless or sensored motor drive algorithms.
• Power Supply Management: Digital power supply controllers, battery chargers, and DC-DC converter controllers, where the ADC monitors voltage/current, PWM provides control signals, and UART enables communication with a host system for monitoring and configuration.
• Smart Meters and Energy Monitoring: Electricity, water, and gas metering applications requiring pulse counting, LCD/LED display driving, real-time clock management, and communication interfaces (UART/SPI) for data readout and remote metering protocols.
• Security and Access Control: Access control panels, alarm systems, door lock controllers, and intercom systems, using the GPIO for keypad scanning, UART for card reader communication, and I2C for connecting EEPROM and sensor peripherals.
• LED Lighting Control: LED dimmers, RGB LED controllers, street lighting controllers, and architectural lighting systems, where multiple PWM channels provide independent dimming control for each color or lighting zone, and the ADC enables ambient light sensing.
• Human-Machine Interface (HMI) Panels: Keypad and display controllers for industrial equipment, vending machines, and home automation panels, scanning matrix keypads, driving LED or LCD displays, and communicating with the main system controller via UART or SPI.
