LM3404HVMR

1A Constant-Current Buck LED Driver, 6V-75V In, PWM Dimming, SO-PowerPAD-8

4949

Effective Inventory
Go to Inquiry

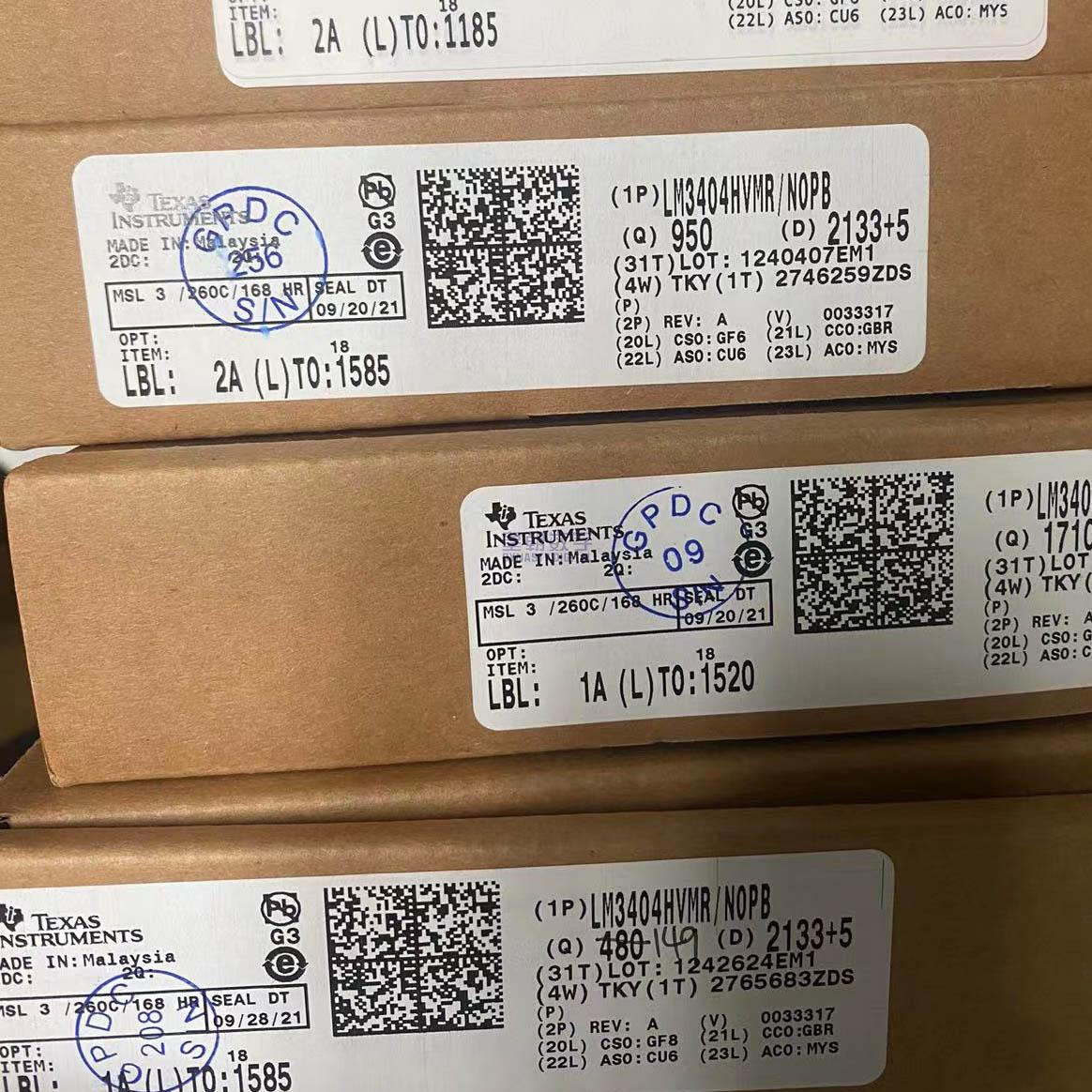

Image for reference only

Manufacturer Part：

LM3404HVMR

Package：

SO PowerPAD-8 (HVSOIC-8), 6.1 x 5.0 x 1.6 mm

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

OC5A2B00

NCV887103D1R2G

NAE12S17-A

MIC4428YM

MIC2951-03BN

LTM4673Y

LTC3780IG

LTC3112EFE

Description

Product Overview

The LM3404HVMR is a high-voltage constant-current buck regulator designed specifically for driving high-power LEDs. Operating from a 6V to 75V input range, this device delivers up to 1A of constant output current with excellent line and load regulation. Featuring hysteretic (ripple) control for fast transient response and simple design, the LM3404 eliminates the need for compensation networks. PWM dimming capability allows precise brightness control with dimming ratios up to 1000:1. The SO PowerPAD-8 package provides superior thermal performance, making it ideal for architectural lighting, automotive lighting, and industrial LED driver applications.

Key Specifications

Parameter Value
Manufacturer Texas Instruments
Part Number LM3404HVMR
Product Category LED Drivers (Constant Current)
Topology Buck (Step-Down) Constant Current
Input Voltage Range 6V to 75V
Output Current Up to 1A (set by sense resistor)
Switching Frequency ~500kHz typical (hysteretic)
LED String Voltage Up to ~70V (depending on VIN)
Dimming Method PWM dimming (up to 1000:1 ratio)
Current Sensing Low-side sense resistor
Package / Case SO PowerPAD-8 (HVSOIC-8)
Operating Temperature -40°C to +125°C

Features

  • Wide 6V to 75V input voltage range (HV version)
  • Constant output current up to 1A (set by external resistor)
  • Hysteretic (ripple) control for fast transient response
  • No compensation network required
  • PWM dimming with up to 1000:1 dimming ratio
  • 1.25V reference for high current accuracy
  • Integrated 75V N-MOSFET power switch
  • SO PowerPAD-8 package for excellent thermal performance
  • Thermal shutdown and current limit protection
  • Low shutdown current: <10µA

Applications

  • Architectural and decorative LED lighting
  • Automotive exterior and interior lighting
  • Industrial LED lighting and signage
  • Constant-current LED driver modules
  • MR16 and high-voltage LED retrofit lamps

The LM3404HVMR is a high-voltage constant-current buck regulator specifically designed for driving high-power LEDs. Part of Texas Instruments extensive LED driver portfolio, the LM3404HV is the high-voltage version supporting input voltages from 6V to 75V, making it suitable for a wide range of LED lighting applications from low-voltage automotive systems to high-voltage industrial lighting.

The LM3404 uses a hysteretic (ripple) control architecture that provides inherent stability and fast transient response without the need for external compensation networks. This greatly simplifies design and reduces component count. The output current is accurately regulated by sensing the voltage across a low-side current sense resistor, with a 1.25V reference providing typical current accuracy of ±5%.

A dedicated DIM pin supports PWM dimming with ratios up to 1000:1, enabling precise brightness control for applications requiring wide dimming range. The PWM signal directly gates the output, turning the LED current on and off for true color dimming without shift in LED emission spectrum.

Packaged in an SO PowerPAD-8 (HVSOIC-8) with exposed thermal pad, the LM3404HVMR provides efficient heat dissipation for reliable operation at high currents and voltages. The device also features thermal shutdown, undervoltage lockout, and cycle-by-cycle current limit for robust operation under fault conditions.

The LM3404HV is a hysteretic (ripple-controlled) buck LED driver with the following operation:

1. Hysteretic Control Architecture: Unlike conventional PWM controllers with a fixed clock, the LM3404 uses hysteretic control. The power switch turns on when the inductor current (sensed across R_SNS) drops below the lower threshold, and turns off when it rises above the upper threshold. This creates a self-oscillating loop that maintains the average LED current at the desired level.

2. Current Sensing and Regulation: A low-side sense resistor (R_SNS) between the LED cathode and ground develops a voltage proportional to the LED current. This voltage is compared against the internal 1.25V reference through a comparator with hysteresis. The nominal LED current is I_LED = 1.25V / R_SNS.

3. Power Switching: When the switch is on, current flows from VIN through the internal N-MOSFET, inductor, LED string, and sense resistor to ground. The inductor current ramps up. When the switch turns off, the inductor current continues through the freewheeling Schottky diode and the LED string, maintaining forward current through the LEDs.

4. PWM Dimming: When the DIM pin is pulled low, the power switch is disabled and the LED current drops to zero. When DIM is high, normal regulation resumes. The LED current rises and falls quickly, enabling high dimming ratios with fast edges. Dimming frequency can be from 100Hz to several kHz.

5. Protection Features: Cycle-by-cycle current limit prevents excessive switch current. Thermal shutdown disables the device at high junction temperatures. Undervoltage lockout ensures proper operation only when VIN is above the minimum threshold.

Pin Name Type Description
1 BOOT Input Bootstrap capacitor input. Provides gate drive voltage above VIN for the high-side N-MOSFET. Connect 0.047µF capacitor from BOOT to SW.
2 VIN Power Input Input voltage supply (6V to 75V). Bypass with 1µF ceramic capacitor to GND, placed close to pin.
3 DIM Input PWM dimming control input. Drive with PWM signal for LED brightness control. 0.4V threshold, <10µA input current.
4 CSN Input Current sense negative input. Connect to the ground side of the sense resistor (R_SNS).
5 CSP Input Current sense positive input. Connect to the LED cathode side of the sense resistor (R_SNS).
6 GND Ground Signal and power ground. Provide robust copper connection to ground plane.
7 SW Output Switch node. Connects to internal MOSFET source. Connect external Schottky diode cathode and inductor here.
8 SW Output Second switch node pin. Connected internally to Pin 7. Both pins connected together externally.
Pad DAP Thermal Exposed die attach pad. Connect to GND plane with multiple thermal vias for maximum heat dissipation.
  • High-voltage LED strings for architectural lighting
  • Automotive daytime running lights and tail lights
  • Industrial LED panel and downlight drivers
  • MR16 and GU10 LED retrofit lamp drivers
  • Constant-current LED driver modules (350mA, 700mA, 1A)
Manufacturer Part Number Package Notes
TI LM3404MR SO PowerPAD-8 Standard 42V input version
TI LM3409HV SO PowerPAD-8 1.2A with thermal foldback
TI LM3402HVMR SO PowerPAD-8 500mA lower current version
Macroblock MBI6651 SOIC-8 1.5A 60V alternative
Diodes Inc AL8860 SOIC-8 1.5A 36V alternative
Monolithic Power MP24893 SOIC-8 3A 55V synchronous option
