L8556E9

High-efficiency 6-channel LED backlight driver, boost DC/DC, I2C/PWM dimming

3128

Effective Inventory
Go to Inquiry

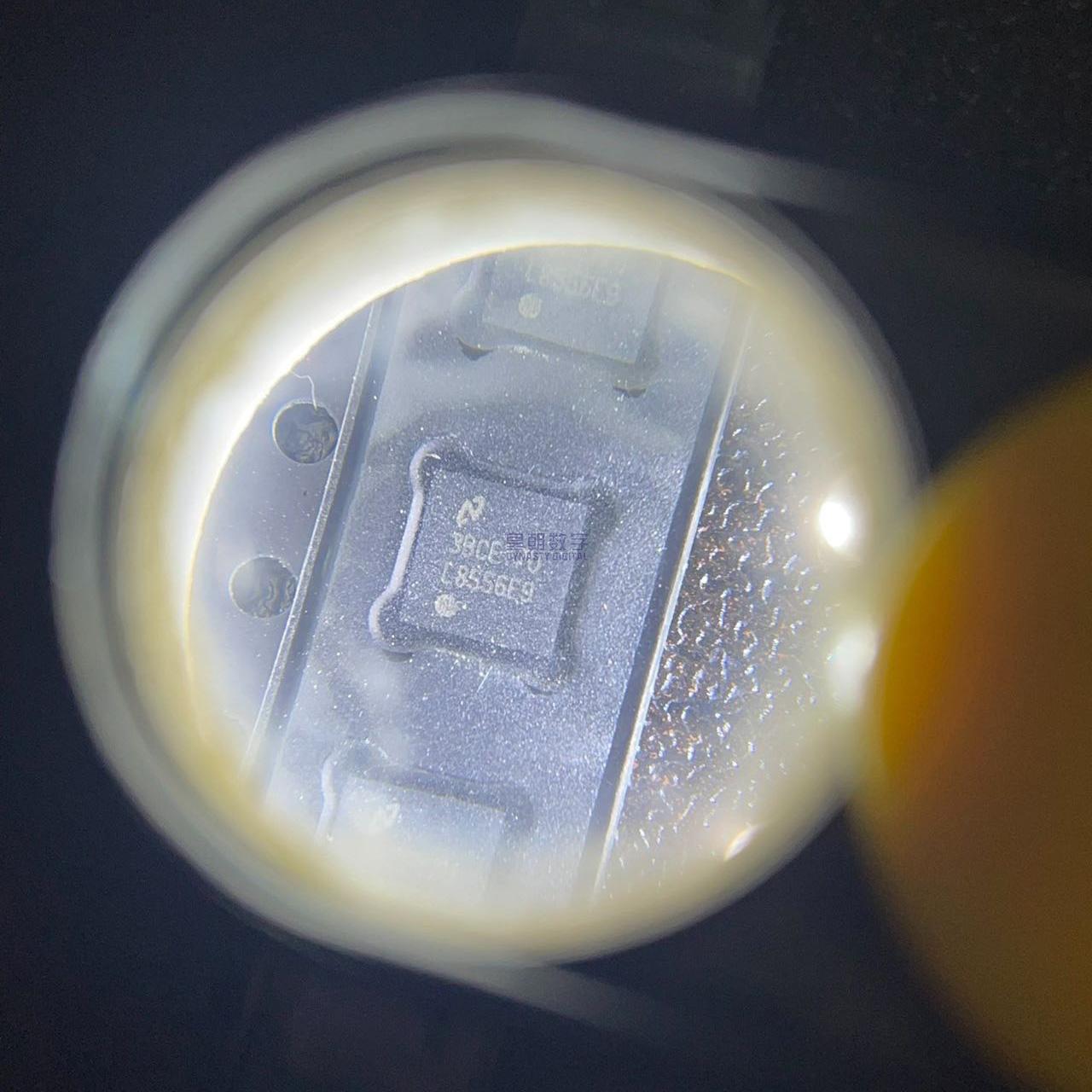

Image for reference only

Manufacturer Part：

L8556E9

Package：

DSBGA (20-pin) / WQFN (24-pin, 4x4mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

OC5A2B00

NCV887103D1R2G

NAE12S17-A

MIC4428YM

MIC2951-03BN

LTM4673Y

LTC3780IG

LTC3112EFE

Description

Product Overview

The LP8556 (L8556E9) is a high-efficiency LED backlight driver from Texas Instruments, designed for tablet and notebook LCD displays. This device integrates a high-efficiency DC/DC boost converter with integrated power MOSFET and six LED current sinks, providing a complete LED backlight solution. The boost converter operates from 2.7V to 20V input and can generate output voltages up to 43V to drive multiple LEDs in series per string. With six channels supporting up to 50mA per channel, the LP8556 provides flexible current matching and dimming control via PWM or I²C interface. Advanced features include adaptive dimming, phase-shift PWM for reduced audible noise, programmable edge rate control, and spread spectrum for reduced EMI. The device is available in space-saving packages including DSBGA and WQFN.

Key Specifications

Manufacturer Texas Instruments
Product Type LED Backlight Driver (Boost + 6 Channels)
Topology Boost DC/DC + Current Sinks
Input Voltage (Boost) 2.7 V to 36 V
Input Voltage (VDD) 2.7 V to 20 V
Output Voltage Range 7 V to 43 V (boost output)
Number of LED Channels 6 (configurable: 1 to 6 channels)
LED Current per Channel Up to 50 mA
Switching Frequency 312 kHz / 625 kHz / 1250 kHz (selectable)
Peak Efficiency Up to 95%
Power MOSFET Integrated 0.19Ω power MOSFET
Dimming Control PWM dimming + I²C control
Dimming Frequency Programmable via I²C
Protection Features UVLO, OVP, OCP, LED fault, TSD
Operating Temperature -30°C to +85°C
Package Options DSBGA (20-pin), WQFN (24-pin)
Status Active / Mature

Features

  • High-efficiency DC/DC boost converter with integrated 0.19Ω MOSFET
  • Three switching frequency options: 312kHz, 625kHz, 1250kHz
  • Wide input voltage range: 2.7V to 20V (VDD), 2.7V to 36V (boost)
  • Up to 43V boost output voltage
  • 6 LED current sinks, up to 50mA per channel
  • Configurable channel count (1 to 6 channels)
  • PWM and/or I²C brightness control
  • Phase-shift PWM mode reduces audible noise
  • Adaptive dimming improves LED drive efficiency
  • Programmable edge rate control and spread spectrum for low EMI
  • Comprehensive fault protection: LED short/open, UVLO, TSD, OCP, OVP

Applications

  • Tablet PC LCD LED backlighting
  • Notebook and netbook display backlights
  • Portable media player displays
  • Industrial display panels
  • Automotive display backlighting
  • High-brightness LED drivers
  • General purpose LED lighting with boost topology

The LP8556 (referred to as L8556E9) is a high-efficiency LED backlight driver from Texas Instruments, designed specifically for tablet and notebook LCD display backlighting applications. This device integrates a high-efficiency current-mode DC/DC boost converter with integrated 0.19Ω power MOSFET and six LED current sinks, providing a complete LED driver solution in a single chip. The boost converter accepts input voltages from 2.7V to 20V (VDD) and 2.7V to 36V (boost input), and can generate output voltages up to 43V to drive multiple white LEDs in series per string. Six current sink channels, each capable of up to 50mA, provide precise current regulation for uniform LED brightness. The number of active channels is configurable from 1 to 6, allowing optimization for different LED string configurations. Brightness control is available through both PWM dimming and I²C interface, with phase-shift PWM technology to reduce audible noise from ceramic capacitors. Adaptive dimming technology automatically adjusts the boost output voltage based on LED forward voltage, maximizing efficiency. Advanced features include programmable switching frequency (312kHz/625kHz/1.25MHz), spread spectrum modulation, and programmable edge rate control for reducing electromagnetic interference (EMI). Comprehensive fault protection includes LED open and short detection, over-voltage protection (OVP), over-current protection (OCP), thermal shutdown (TSD), and under-voltage lockout (UVLO). Available in compact DSBGA and WQFN packages, the LP8556 is ideal for space-constrained portable display applications.

The LP8556/L8556E9 operates as a boost LED driver with integrated current sinks and digital control. Its architecture includes: 1) Boost DC/DC Converter: A current-mode boost converter with integrated 0.19Ω power MOSFET steps up the input voltage to the required LED string voltage. The converter uses a current-mode control architecture with external compensation for stability. Switching frequency is programmable at 312kHz, 625kHz, or 1.25MHz via configuration pins or I²C. The adaptive boost output voltage automatically adjusts to the minimum voltage needed for the LED strings, optimizing efficiency. 2) LED Current Sinks: Six precision current sinks regulate the current through each LED string, ensuring uniform brightness across all LEDs. Each sink can handle up to 50mA of LED current. The current is set via external resistor or I²C register. The current sinks feature excellent current matching across channels, ensuring uniform backlight brightness. 3) Dimming Control: Brightness control is achieved through PWM dimming, where the LED current is pulsed on and off at a frequency above the human flicker threshold. Phase-shift PWM technology staggers the turn-on/off times of different channels to reduce peak current draw and audible noise from ceramic capacitors. I²C interface allows programming of brightness levels, dimming frequency, and other parameters. 4) Protection and Monitoring: Comprehensive fault protection ensures reliable operation. LED open-circuit detection identifies broken LED strings. LED short-circuit detection protects against shorted LEDs. Over-voltage protection prevents excessive output voltage. Over-current protection limits inductor and switch current. Thermal shutdown protects the device from overheating. Under-voltage lockout ensures proper operation above minimum supply voltage.

Pin Name Type Function Description
VDD Power Digital supply voltage (2.7V to 20V)
VIN Power Boost converter input voltage (2.7V to 36V)
SW Switch Boost switch node (connect to inductor and Schottky diode)
VOUT Output Boost output voltage sense / LED supply
GND Ground Ground connection
LED1 – LED6 Current Sink LED current sink outputs (6 channels)
FB Feedback Boost output voltage feedback
PWM Input PWM dimming control input
SCL/SDA I2C I²C serial clock and data
EN Input Chip enable input
FSET Config Switching frequency setting
RSET Config LED full-scale current setting resistor
FAULT Output Fault indicator output (open-drain)
COMP Analog Compensation network for boost controller
  • Tablet computer LCD display LED backlight drivers
  • Notebook and netbook screen backlight power supplies
  • Portable media player and e-reader display lighting
  • Industrial control panel and HMI display backlights
  • Automotive infotainment and instrument cluster displays
  • High-brightness LED lighting with boost topology
  • Medical equipment display backlighting
Manufacturer Part Number Channels Notes
Texas Instruments LP8556SQE-E09 6 24-pin WQFN package variant
Texas Instruments LP8555 8 8-channel version, boost + buck
Texas Instruments LP8580 8 Newer generation, MIPI-DSI interface
Maxim MAX17107 8 8-string boost LED driver
ON Semiconductor NCP3065 1 Single-channel boost LED driver
