DLPC3432CZVB

DLP display controller for DLP230GP qHD DMD, 240Hz, MIPI DSI, IntelliBright, NFBGA-176

6938

Effective Inventory
Go to Inquiry

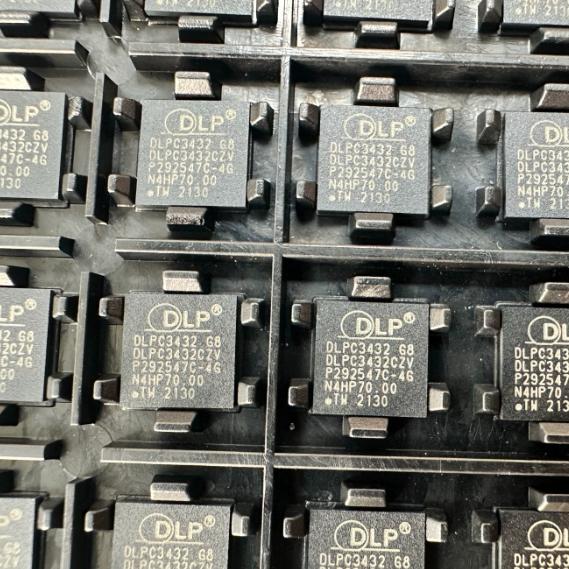

Image for reference only

Manufacturer Part：

DLPC3432CZVB

Package：

NFBGA-176 (ZVB, 7 mm x 7 mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

AD8244BRMZ

AD5024BRUZ

A4915MLPTR-T

A2412S-2WRS

88W8782-NAP2

74HC573D

5M160ZT100C5N

5G921C

Description

Product Overview

The DLPC3432CZVB is a DLP display controller from Texas Instruments designed for the DLP230GP (0.23-inch qHD) DMD. It supports input resolutions up to qHD at frame rates up to 240 Hz with IntelliBright processing (CAIC, LABB), MIPI DSI Type 3 input, and 24-bit parallel pixel interface. The controller pairs with DLPA2000/DLPA2005/DLPA3000 PMIC/LED drivers and features an internal Arm Cortex-M3 processor with embedded eDRAM frame memory.

Key Specifications

Target DMD DLP230GP (0.23-inch qHD)
Max Input Resolution qHD (960 x 540)
Max Frame Rate 240 Hz
Pixel Clock Up to 155 MHz
Video Input 24-bit parallel / BT656 / MIPI DSI Type 3
MIPI DSI 1-4 lanes, up to 470 Mbps/lane
Processor Arm Cortex-M3
Image Processing IntelliBright (CAIC, LABB), 1D keystone, scaling
Frame Memory Embedded eDRAM
Package NFBGA-176 (ZVB)
Body Size 7 mm x 7 mm
Operating Temp 0°C to 70°C
Part Status Active

Features

  • Display controller for DLP230GP (0.23-inch qHD) DMD
  • Supports input resolutions up to qHD at 240 Hz
  • IntelliBright suite: CAIC, LABB, scaling, 1D keystone
  • MIPI DSI Type 3: 1-4 lanes, up to 470 Mbps
  • 24-bit parallel or BT656 input interface
  • Color space conversion and chroma interpolation
  • Embedded frame memory (eDRAM)
  • I2C device control, programmable splash and LED current
  • Display image rotation support
  • Pairs with DLPA2000, DLPA2005, or DLPA3000 PMIC/LED driver

Applications

  • Mobile pico projectors
  • Smart displays and smartphone companions
  • Augmented reality glasses
  • Smart home and appliance displays

The DLPC3432CZVB is a DLP display controller from Texas Instruments designed for the DLP230GP (0.23-inch qHD) DMD. It supports input resolutions up to qHD (960 x 540) at frame rates up to 240 Hz with IntelliBright image processing including Content Adaptive Illumination Control (CAIC) and Local Area Brightness Boost (LABB). The controller supports MIPI DSI Type 3 (1-4 lanes at 470 Mbps) and 24-bit parallel/BT656 input interfaces, making it versatile for mobile and IoT platforms. An internal Arm Cortex-M3 processor handles image processing pipelines. Embedded eDRAM frame memory eliminates external frame buffer requirements.

The DLPC3432 receives video data through the 24-bit parallel interface or MIPI DSI Type 3 port. The internal Cortex-M3 processor applies IntelliBright algorithms: CAIC adjusts LED current based on image content for power efficiency, LABB enhances perceived brightness in dark regions. The image scaler resizes input to match the qHD DMD resolution. 1D keystone correction compensates for projection angle. Color space conversion and 4:2:2 to 4:4:4 chroma interpolation handle format adaptation. Processed data is output to the DMD via SubLVDS. The controller manages DMD power sequencing and LED current control through the PMIC via I2C, and auto-parks the DMD on power-down.

Pin Group Interface Function
Parallel Input CMOS 24-bit pixel data input
MIPI DSI Serial 1-4 lane DSI input (470 Mbps)
I2C Open Drain I2C host control interface
SPI Flash CMOS SPI for firmware and splash storage
DMD Interface SubLVDS High-speed data to DLP230GP
PMIC Control CMOS PROJ_ON, HOST_IRQ, CTRL, RLIM
  • Ultra-compact qHD pico projectors for mobile devices
  • AR glasses near-eye projection modules
  • Smart home appliance display interfaces
  • Wearable and IoT projection devices
Manufacturer Part Number Package Notes
TI DLPC3430CZVBR NFBGA-176 For DLP2010 WVGA DMD
TI DLPC3472CZVB NFBGA-176 Light control variant for DLP230GP
TI DLPC3435CZVBR NFBGA-176 For DLP2010 without MIPI DSI
