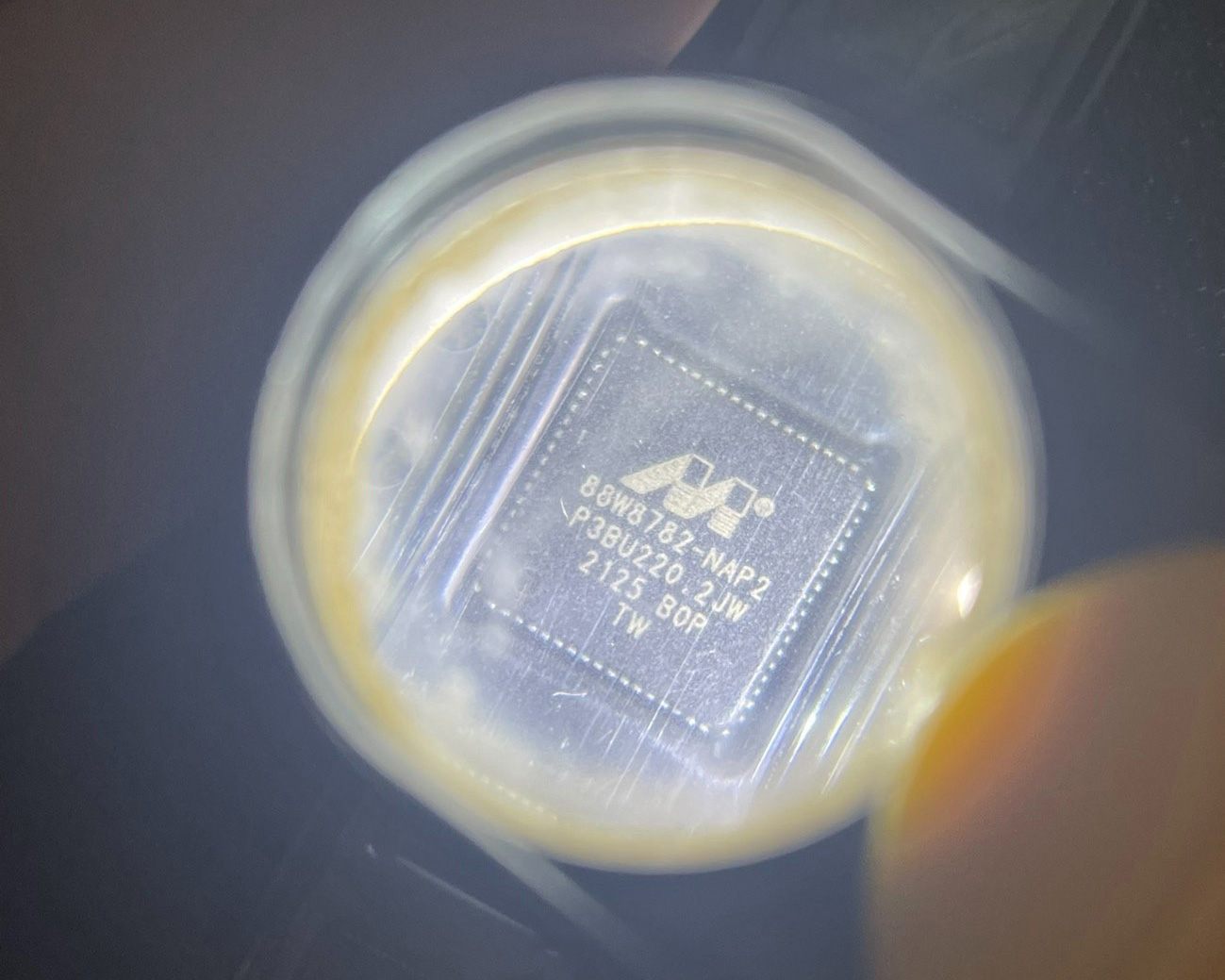

88W8782-NAP2

The 88W8782-NAP2 is a member of Marvell’s Avastar family of highly integrated wireless LAN system-on-chip devices, designed to deliver robust WLAN connectivity with minimal external components and low power consumption. This single-chip solution integrates the complete WLAN functionality including the RF radio, baseband modem, media access controller (MAC), embedded processor, and host interface on a single die. Supporting IEEE 802.11a/b/g/n standards, the device operates in both 2.4GHz and 5GHz frequency bands with a 1×1 SISO (single-input single-output) configuration, achieving PHY data rates up to 150 Mbps using MCS7 modulation with 40MHz channel bandwidth. The integrated direct-conversion radio architecture eliminates the need for external SAW filters, while on-chip power amplifiers (PA), low noise amplifiers (LNA), and transmit/receive switches further reduce the bill of materials. The 2.4GHz path integrates a complete T/R switch, PA, and LNA, while the 5GHz path integrates PA and LNA. The device incorporates a Marvell Feroceon CPU (ARMv5TE compliant) running at up to 128 MHz, along with two independent DMA channels, to handle protocol processing and data management on-chip, reducing the load on the host processor. Host connectivity is provided through SDIO (supporting 1-bit and 4-bit modes up to 75 MHz), G-SPI, and USB 2.0 interfaces. Additional peripherals include a 16550-compatible UART, general-purpose I/O pins, a clocked serial unit supporting multiple serial protocols, and SPI EEPROM interface. On-chip OTP (one-time programmable) memory eliminates the need for external configuration EEPROM in many designs. Security features include hardware-accelerated WEP 64/128-bit encryption with TKIP processing, AES-CCMP for WPA2, AES-CMAC for 802.11w, and WAPI support. The 88W8782-NAP2 also supports 802.11e QoS for prioritized multimedia traffic, 802.11h Dynamic Frequency Selection (DFS) for 5GHz radar detection, and a coexistence interface for co-located Bluetooth or other 2.4GHz radios. Target applications include wireless printers, smart home devices, IP cameras, set-top boxes, industrial wireless modules, and portable electronics where compact form factor and low power consumption are critical.

The 88W8782-NAP2 operates as a complete WLAN subsystem on a single chip, integrating all layers from the RF front-end through the MAC and host interface. In the receive path, RF signals from the antenna pass through the on-chip T/R switch and low noise amplifier (LNA) before being downconverted from RF to baseband using a direct-conversion (zero-IF) architecture. The baseband processor then performs OFDM or DSSS demodulation, channel equalization, and error correction (FEC decoding) to recover the transmitted data. The MAC layer handles frame assembly/disassembly, acknowledgment, retransmission, encryption/decryption, and quality-of-service (QoS) scheduling per 802.11e standards. In the transmit path, the MAC assembles data frames and passes them to the baseband processor for modulation and coding according to the selected data rate and modulation scheme (BPSK through 64-QAM for OFDM, CCK for DSSS). The baseband signal is upconverted to the operating RF frequency, amplified by the on-chip power amplifier (PA), and routed to the antenna through the T/R switch. The transmit power control system provides both closed-loop and open-loop power adjustment with 0.5 dB steps. The integrated Feroceon CPU executes the WLAN firmware, managing association, authentication, key management, roaming, power management, and other protocol-level functions on-chip, reducing the processing burden on the host processor. The host interface (SDIO, G-SPI, or USB) provides the data path between the WLAN chip and the host system, supporting high-speed data transfer with DMA assistance. Power management features include various sleep modes and wake-on-wireless functionality to minimize power consumption during idle periods, which is particularly important for battery-operated devices. The coexistence interface enables coordination with other radios (such as Bluetooth) sharing the 2.4GHz band, optimizing performance through time-slot arbitration and packet scheduling.

• Wireless printers and multi-function printer (MFP) connectivity modules
• Smart home hubs and IoT gateway devices
• IP cameras (IPCs) and wireless security systems
• Set-top boxes (STB) and over-the-top (OTT) media devices
• Portable electronics: wireless storage, mobile hotspots
• Industrial wireless communication and sensor gateway modules
• Medical devices with wireless connectivity requirements
• Automotive infotainment and telematics systems
• Digital picture frames and smart display devices
• Home automation and smart appliance Wi-Fi modules
