DSPIC33EV256GM104-I

The DSPIC33EV256GM104-I is a 5V-tolerant 16-bit digital signal controller from Microchip’s dsPIC33EV family, specifically designed for motor control and digital power applications that operate in noisy industrial and automotive environments. A distinguishing feature of the dsPIC33EV family is its ability to operate from a 5V power supply with 5V-tolerant I/Os, providing superior noise immunity compared to 3.3V-only devices and enabling direct interfacing with 5V sensors, actuators, and legacy systems without the need for level shifters. The device core runs at 3.3V, generated by an on-chip linear regulator from the 5V supply, achieving 70 MIPS performance while the I/O pins are 5V capable. Built around the dsPIC modified Harvard architecture with a 24-bit instruction word, the core integrates a full DSP engine supporting single-cycle 16×16 multiply-accumulate operations, a 40-bit accumulator with saturation, barrel shifting, and bit-reversed addressing for efficient FFT computation. The device includes 256 KB of on-chip Flash program memory and 16 KB of data RAM, supported by a 4-channel DMA controller for autonomous data transfer between peripherals and memory. The motor control and power peripherals are a key strength: up to 8 high-resolution PWM outputs (4 complementary pairs) with 2.1 nanosecond resolution, integrated dead-band generation, and fault input pins for fast over-current protection; a 12-bit SAR ADC with up to 3.5 Msps throughput supporting up to 27 analog input channels with simultaneous sampling capability; and integrated operational amplifiers and analog comparators that eliminate external signal conditioning components in current sensing and protection circuits. Communication peripherals include a CAN 2.0B controller with 32 message buffers, two UARTs, two SPI ports, and one I2C port. A quadrature encoder interface provides direct connection to incremental position encoders for closed-loop motor control. With industrial temperature range (-40°C to +85°C), AEC-Q100 automotive qualification available on selected variants, and a compact 44-pin TQFP package, the DSPIC33EV256GM104-I is an excellent choice for cost-sensitive motor control, digital power, and automotive applications requiring high noise immunity and 5V operation.

The DSPIC33EV256GM104-I operates as a 5V-tolerant digital signal controller using a dual-voltage architecture: the I/O pins interface at 5V levels for high noise immunity, while the core logic runs at 3.3V generated by an internal regulator from the 5V supply. The dsPIC CPU core is a 16-bit modified Harvard architecture where instructions (24 bits wide) are fetched from Flash memory while data (16 bits wide) is accessed from RAM, allowing both operations to occur in parallel for maximum throughput. The integrated DSP engine provides hardware acceleration for signal processing operations: a single-cycle 17×17-bit multiplier supports both fractional and integer multiplication, accumulating results into a 40-bit accumulator that can be configured for either saturation or wrap-around behavior. Two accumulator registers are available for back-to-back MAC operations common in digital filter algorithms. The barrel shifter provides efficient multi-bit shifts in a single cycle, and dedicated bit-reversed addressing mode simplifies the index calculation for FFT butterfly operations. The PWM module generates high-resolution pulse-width modulated signals using dedicated hardware timers and comparators that operate independently of the CPU, ensuring minimal jitter and precise timing — essential for high-efficiency motor control and high-frequency power conversion. The complementary PWM outputs support programmable dead-band insertion to prevent shoot-through currents in half-bridge and full-bridge circuits. Fault input pins provide hardware-level over-current protection that can disable PWM outputs within nanoseconds, without CPU intervention. The multi-channel ADC uses successive approximation architecture with multiple SAR cores, enabling simultaneous sampling of multiple analog inputs — critical for multi-phase motor control where phase currents and DC bus voltage must be captured at the same moment. Integrated op amps can be configured as differential amplifiers for current shunt sensing or as general-purpose signal conditioning circuits, while the analog comparators with internal DAC references provide fast over-current and over-voltage detection. The DMA controller transfers data between peripherals and memory in the background, allowing the CPU to focus on algorithm computation. The 5V I/O capability is achieved through specialized I/O buffer circuits that can tolerate higher voltages while the core operates at 3.3V, providing the noise immunity benefits of 5V logic with the power efficiency of a 3.3V core.

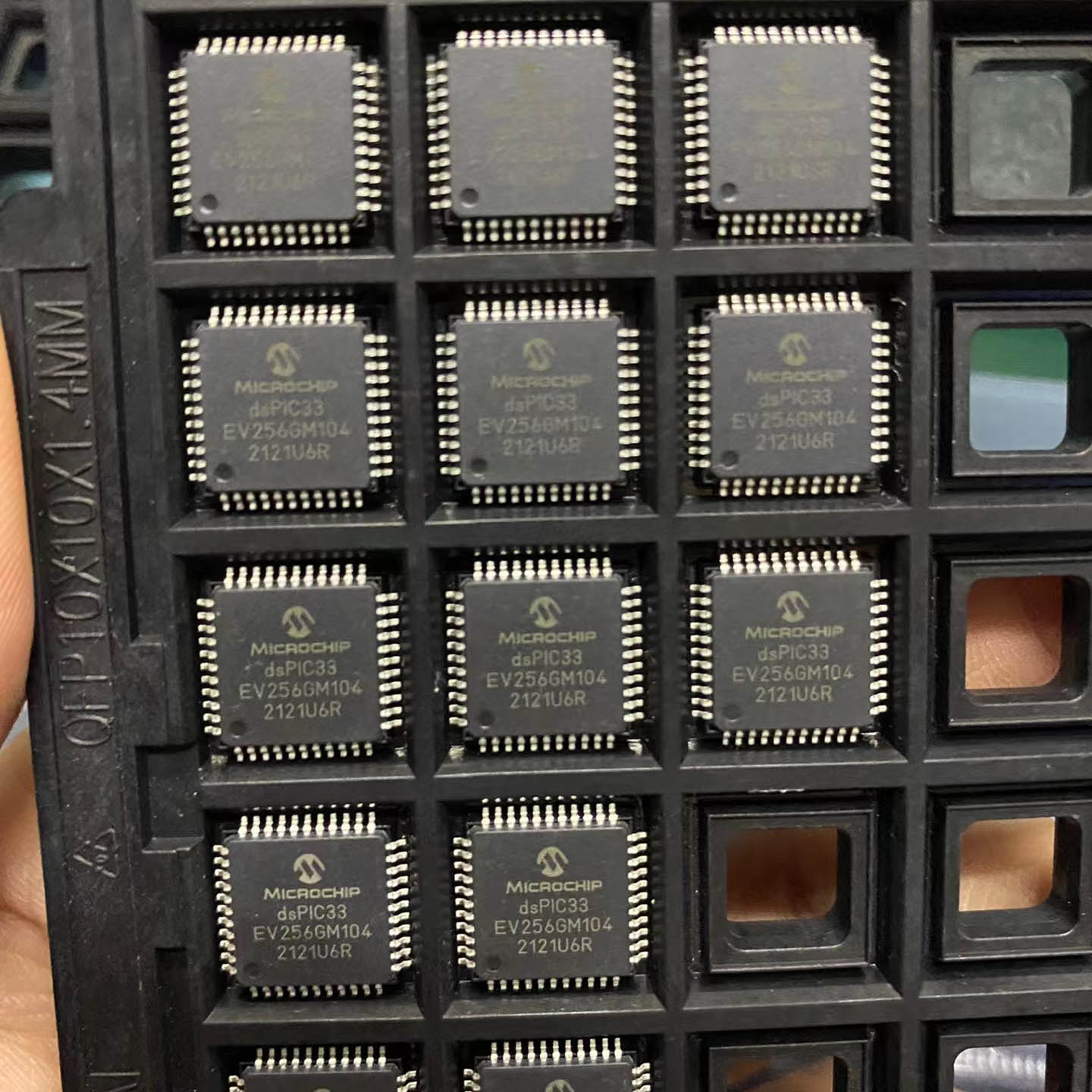

The DSPIC33EV256GM104-I is available in a 44-lead TQFP package. Major pin groups:

Note: Many pins have multiple multiplexed functions. The exact pinout depends on the specific package variant and pin configuration settings. Refer to the official dsPIC33EV256GM104 datasheet for complete pin assignments and electrical characteristics.

• BLDC / PMSM Motor Control: Used in brushless DC and permanent magnet synchronous motor drives for power tools, garden equipment, e-bikes, and small industrial motors, implementing sensored or sensorless FOC algorithms
• Digital Power Supplies & SMPS: Deployed in high-efficiency switch-mode power supplies, DC-DC converters, and battery chargers, using the high-resolution PWM and DSP engine for digital control loop implementation
• Power Factor Correction (PFC): Used in active PFC circuits for power supplies, LED drivers, and motor drives where the DSP core runs PFC control algorithms to achieve high power factor and low THD
• Automotive Electronics (5V Systems): Used in automotive body electronics, auxiliary motor drives (fans, pumps, wipers), and sensor interfaces in 5V automotive electrical systems, with AEC-Q100 qualified variants available
• Industrial Automation & Drives: Found in small variable frequency drives, conveyor controllers, and industrial actuator drives requiring 5V I/O tolerance for direct connection to industrial sensors and 5V logic
• Consumer Appliances (White Goods): Used in washing machines, refrigerators, air conditioners, and other major appliances for high-efficiency compressor and motor control with high noise immunity
• Power Tools & Garden Equipment: Deployed in cordless drills, saws, blowers, and trimmers for BLDC motor control with robust EMC performance and 5V battery operation
• CAN-Based Control Networks: Serves as a CAN node in industrial and automotive distributed control systems, combining CAN 2.0B communication with motor control or sensor processing in a single chip
