DSPIC33EV256GM106-I

The DSPIC33EV256GM106-I is a 64-pin variant of Microchip’s dsPIC33EV family of 5V-capable 16-bit digital signal controllers, designed for motor control and digital power applications that require more I/O pins, additional PWM channels, and a richer peripheral set than the 44-pin versions. The dsPIC33EV family is unique in its 5V operating capability: the I/O pins are 5V tolerant and the device can be powered directly from a 5V supply, providing superior noise immunity in industrial and automotive environments while the core logic runs at 3.3V via an on-chip regulator. This 64-pin variant expands significantly on the 44-pin version with up to 53 general-purpose I/O pins, 14 high-resolution PWM outputs (7 complementary pairs), 49 analog input channels, four integrated operational amplifiers, two quadrature encoder interfaces, and additional communication peripherals including three UARTs and two I2C ports. The dsPIC core achieves 70 MIPS performance and integrates a full DSP engine with single-cycle 16×16 multiply-accumulate capability, a 40-bit accumulator, barrel shifter, and bit-reversed addressing — all essential for implementing advanced motor control algorithms like Field-Oriented Control (FOC) and digital power supply control loops. With 256 KB of Flash program memory, 16 KB of RAM, and six DMA channels, there is ample code and data space for complex applications. The PWM module features 2.1 nanosecond resolution with programmable dead-band and fault protection inputs, enabling high-efficiency, high-frequency power conversion. The 12-bit SAR ADC with multiple cores supports simultaneous sampling of multiple analog channels, critical for multi-phase motor control. A CAN 2.0B controller with 32 message buffers enables robust industrial and automotive networking. Two quadrature encoder interfaces support dual-axis position feedback for multi-motor or dual-encoder applications. Packaged in a 64-lead TQFP with industrial temperature range (-40°C to +85°C), the DSPIC33EV256GM106-I offers an excellent balance of performance, peripheral count, and 5V noise immunity for demanding embedded control applications.

The DSPIC33EV256GM106-I uses the same 5V-capable dsPIC33EV architecture as other family members, but with expanded peripheral and I/O capabilities enabled by the 64-pin package. The core operates from a 3.3V internal supply generated by an on-chip linear regulator that steps down the 5V I/O supply, providing the power efficiency of a 3.3V core with the noise immunity of 5V I/O buffers. The dsPIC CPU is a 16-bit modified Harvard architecture with a 24-bit instruction word and separate program and data buses, achieving single-cycle instruction execution for most instructions at 70 MIPS. The DSP engine within the core provides hardware-accelerated multiply-accumulate operations using a 17×17-bit multiplier and 40-bit accumulator pair, plus barrel shifting and bit-reversed addressing for efficient digital signal processing. The PWM subsystem in this 64-pin variant supports up to 14 PWM outputs organized as 7 complementary pairs, each with independent time base, dead-band generation, and fault input capability — allowing control of multiple motors or multiple power stages from a single device. The high 2.1 ns resolution of the PWM generators enables high-frequency operation for digital power applications and smooth, low-distortion motor control. The analog subsystem includes a multi-core 12-bit SAR ADC with up to 49 input channels, supporting simultaneous sampling across multiple channels, plus four integrated operational amplifiers that can be configured as differential amplifiers for current sensing or as general-purpose signal conditioning. Multiple analog comparators with programmable DAC references provide fast over-current and over-voltage protection. The 6-channel DMA controller offloads data movement between peripherals and RAM, allowing the CPU to focus on algorithm computation. Two quadrature encoder interfaces (QEI) provide direct hardware support for incremental position encoders on two independent axes, enabling multi-axis position control. The CAN 2.0B controller supports standard and extended frames with 32 message buffers, suitable for industrial CANopen and automotive CAN networking. The combination of 5V tolerance, rich peripherals, and DSP performance makes this device particularly well-suited for multi-motor control and high-channel-count digital power applications in noisy environments.

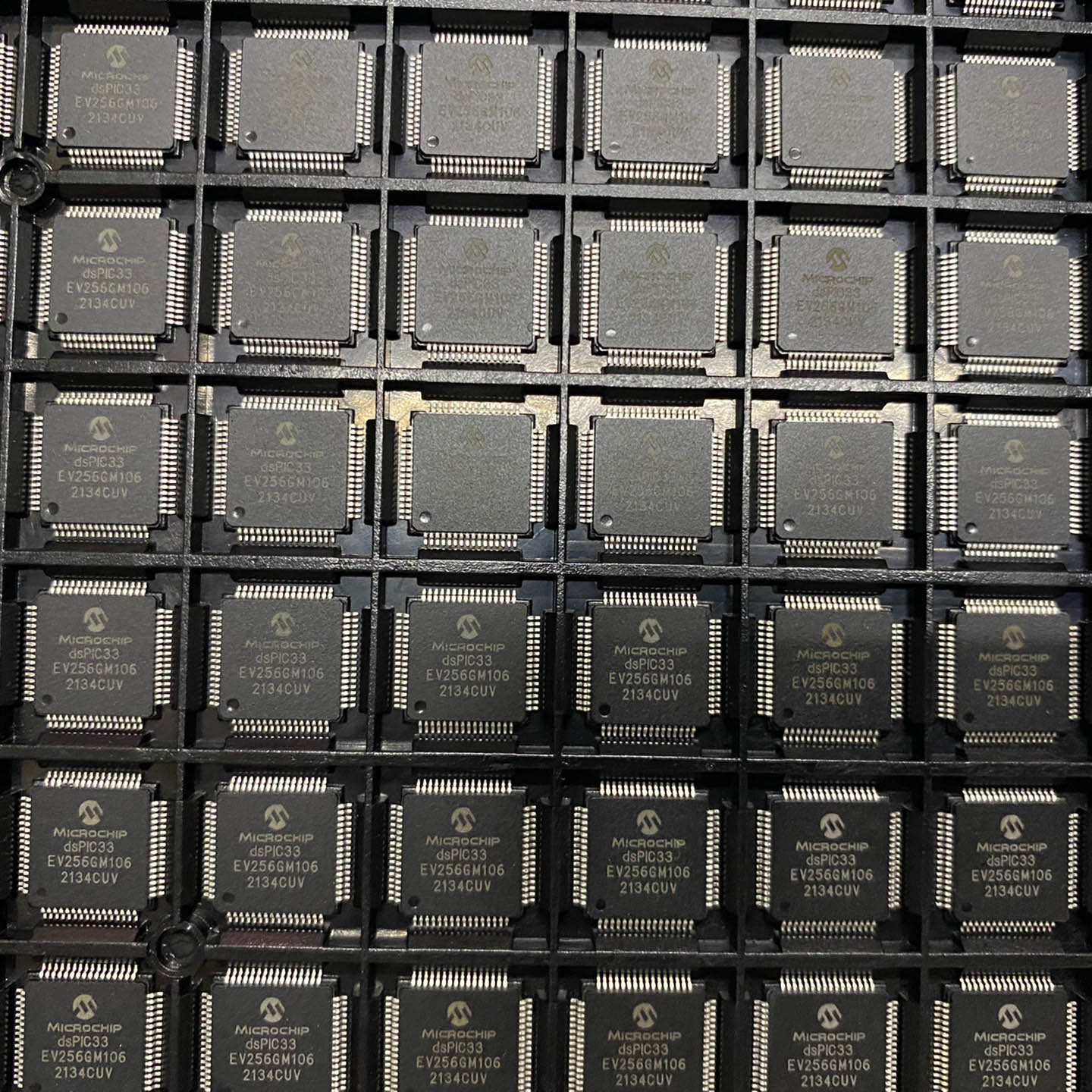

The DSPIC33EV256GM106-I is available in a 64-lead TQFP package. Major pin groups:

Note: Many pins have multiple multiplexed functions. Exact pin assignments depend on package variant and pin configuration settings. Refer to the official dsPIC33EV256GM106 datasheet and pinout diagrams for complete details.

• Multi-Axis Motor Control: Used in dual-axis and multi-motor control systems including robotics, CNC machines, 3D printers, and industrial positioning stages, where multiple PWM channels and quadrature encoder interfaces enable independent control of two or more motors from a single DSC
• High-Performance Motor Drives: Deployed in PMSM/BLDC motor drives with Field-Oriented Control (FOC), AC induction motor VFDs, and servo controllers requiring high-resolution PWM, fast ADC, and DSP processing capability
• Digital Power & PFC: Used in high-efficiency switch-mode power supplies, interleaved PFC circuits, and multi-phase DC-DC converters where multiple PWM channels and high resolution enable advanced digital control topologies
• Automotive Electronics (5V): Used in automotive motor control applications (fuel pumps, cooling fans, blower motors) and body electronics with 5V supply systems, benefiting from the 5V I/O noise immunity and CAN controller
• Industrial Drives & Automation: Found in variable frequency drives, conveyor controllers, and industrial automation systems requiring robust 5V operation, CAN communication, and multiple motor control channels
• Robotics & Motion Control: Deployed in mobile robots, robotic arms, and motion controllers where multi-axis coordination, real-time control, and reliable communication are essential
• Renewable Energy Micro-Inverters: Used in solar micro-inverters and small wind power converters where the DSP engine handles MPPT, grid-tie control, and power conversion algorithms
• CAN-Based Distributed Control: Serves as intelligent CAN nodes in industrial and automotive distributed control systems, combining local motor control or sensor processing with CAN 2.0B network communication
