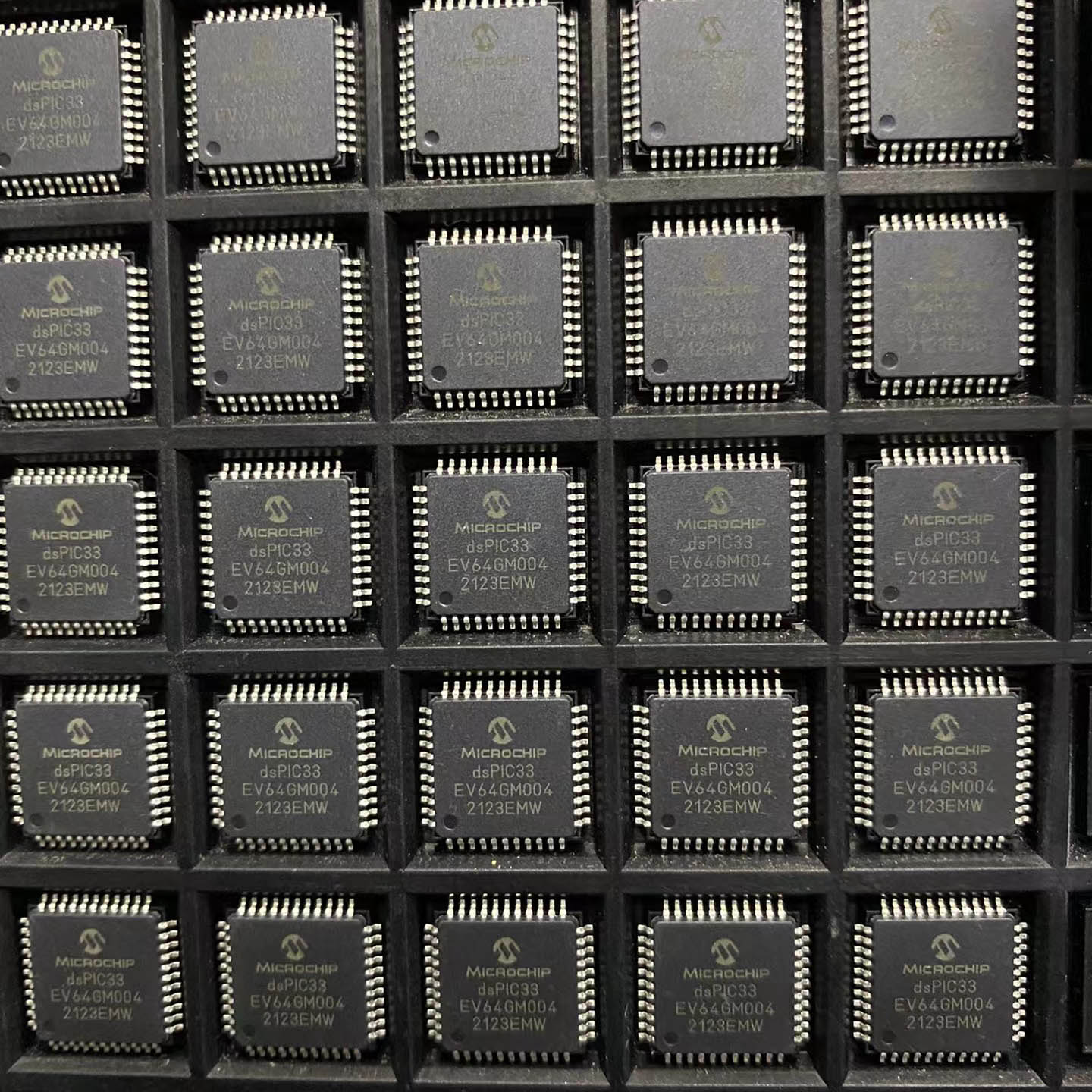

DSPIC33EV64GM004-I

The DSPIC33EV64GM004-I is the entry-level member of Microchip’s dsPIC33EV family of 5V-capable 16-bit digital signal controllers, offering cost-optimized DSP performance for basic motor control and digital power applications. Despite its position as the entry point in the family, it still features the full 70 MIPS dsPIC DSC core with integrated DSP engine, 5V-tolerant I/Os, high-resolution PWM, simultaneous-sampling ADC, and integrated op amps — just with reduced memory and fewer peripherals compared to higher-end variants. The 5V operation is a key differentiator from competing 3.3V microcontrollers: it provides significantly higher noise immunity in electrically noisy environments like motor drives and industrial equipment, and eliminates the need for level shifters when interfacing with 5V sensors and logic. The core runs at 3.3V from an on-chip regulator, balancing power efficiency with 5V I/O compatibility. With 64 KB of Flash program memory and 8 KB of RAM, the DSPIC33EV64GM004-I has sufficient resources for most basic to mid-range motor control algorithms including six-step BLDC control, sensorless BLDC, basic FOC for PMSM motors, and simple digital power control loops. The motor control peripherals include 8 high-resolution PWM outputs (4 complementary pairs) with 2.1 ns resolution, programmable dead-band generation, and fault input pins for fast over-current protection. The dual-core 12-bit SAR ADC supports simultaneous sampling across multiple channels, essential for multi-phase current sensing. Three integrated op amps and three analog comparators reduce the need for external signal conditioning components. Communication peripherals include two UARTs, two SPI ports, and one I2C port — covering the most common embedded communication requirements. A single quadrature encoder interface provides direct support for incremental position encoders. With its compact 44-pin TQFP package, industrial temperature range, and attractive price point, the DSPIC33EV64GM004-I is an excellent choice for cost-sensitive applications that still need the DSP performance and 5V noise immunity of the dsPIC33EV family.

The DSPIC33EV64GM004-I operates on the same 5V-tolerant dsPIC33EV architecture as higher-end family members, but with reduced memory and peripheral count for cost optimization. The dual-voltage architecture provides 5V I/O buffers for high noise immunity while the core logic runs at 3.3V from an internal regulator, achieving 70 MIPS performance. The dsPIC CPU is a 16-bit modified Harvard architecture with 24-bit instruction width, featuring separate program and data buses that allow instruction fetch and data access to occur in the same cycle for maximum throughput. The integrated DSP engine provides hardware acceleration for signal processing: a single-cycle 17×17-bit multiplier supports both fractional and integer multiply-accumulate operations, with results accumulated into a 40-bit accumulator with configurable saturation behavior. A barrel shifter provides efficient multi-bit shifts, and bit-reversed addressing mode simplifies FFT index calculations. The PWM module generates 8 high-resolution pulse-width modulated outputs organized as 4 complementary pairs, with 2.1 nanosecond resolution for precise control of power switching devices. Each pair has independent dead-band generation to prevent shoot-through in bridge circuits, and fault input pins provide hardware-level over-current protection that can disable the PWM outputs within nanoseconds without CPU intervention. The dual-core 12-bit SAR ADC can sample two analog channels simultaneously, which is sufficient for single-motor applications requiring at least two phase current measurements plus DC bus voltage. The three integrated op amps can be configured as differential amplifiers for shunt current sensing or as general-purpose amplifiers, while the three comparators with internal DAC references provide fast analog threshold detection for protection functions. The 3-channel DMA controller transfers data between peripherals and memory autonomously, reducing CPU loading. The device’s compact design — with just 64 KB Flash and 8 KB RAM — is sufficient for many basic motor control algorithms such as six-step BLDC trapezoidal control, sensorless back-EMF control, and simple field-oriented control for small motors. Overall, this device provides the essential dsPIC33EV features (5V operation, DSP engine, high-res PWM, simultaneous ADC, op amps) in a cost-optimized configuration for entry-level applications.

The DSPIC33EV64GM004-I is available in a 44-lead TQFP package. Major pin groups:

Note: Many pins have multiple multiplexed functions. The exact pinout varies by package variant and pin configuration settings. Refer to the official dsPIC33EV64GM004 datasheet for complete pin assignments and electrical specifications.

• Cost-Sensitive BLDC Motor Drives: Used in low-cost brushless DC motor applications like power tools, garden equipment, ceiling fans, and small pumps where six-step or basic sensorless control is sufficient and cost optimization is critical
• Power Tools & Garden Equipment: Deployed in cordless drills, saws, blowers, trimmers, and other battery-powered tools for BLDC motor control, benefiting from the 5V operation and high noise immunity
• Consumer Appliances (White Goods): Used in washing machines, refrigerators, air conditioners, and small appliances for compressor and fan motor control where the 5V tolerance simplifies design and improves EMC performance
• Pump & Fan Controllers: Used in industrial and commercial pump drives, HVAC fans and blowers, and cooling systems requiring reliable motor control with high noise immunity in 5V systems
• Simple Digital Power Supplies: Deployed in low-cost DC-DC converters, battery chargers, and LED drivers where the DSP engine handles basic digital control loops and the 5V operation matches typical power supply voltages
• Industrial Sensor Interfaces: Used in industrial sensor signal conditioning and processing modules where the integrated op amps and ADC handle analog sensor inputs and 5V I/O simplifies industrial interfacing
• 5V Embedded Control Systems: Serves as a general-purpose controller in legacy 5V embedded systems that need DSP performance without redesigning the power supply or adding level shifters
• High Noise Immunity Applications: Used in electrically noisy environments (motor rooms, factory floors, automotive) where 3.3V microcontrollers would suffer from noise-induced glitches or erratic operation
