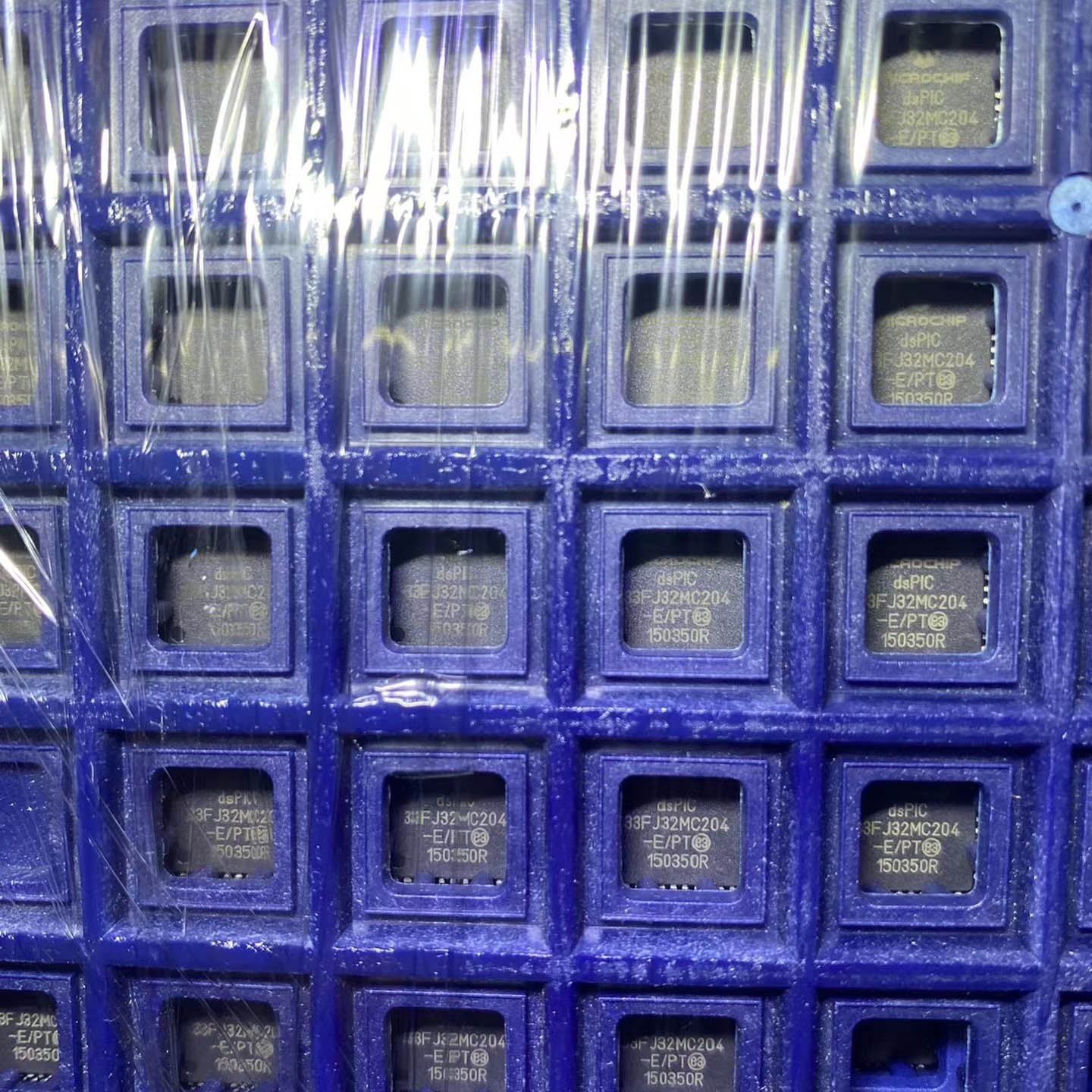

DSPIC33FJ32MC204-E

The DSPIC33FJ32MC204-E is a motor-control-optimized 16-bit digital signal controller from Microchip’s dsPIC33FJ ‘MC’ (Motor Control) family, designed specifically for embedded motion control and digital power conversion applications. As part of the earlier dsPIC33FJ generation, it offers a cost-effective balance of 40 MIPS DSP performance, motor control peripherals, and extended temperature range in a compact 44-pin package. The ‘E’ suffix indicates the extended temperature range of -40°C to +125°C, making this device suitable for high-temperature environments such as under-hood automotive applications, industrial motor drives, and enclosed power supplies where ambient temperatures can exceed standard industrial limits. The dsPIC core integrates a full DSP engine with single-cycle 16×16 multiply-accumulate capability, a 40-bit accumulator pair, barrel shifter, and bit-reversed addressing — enabling efficient implementation of advanced motor control algorithms including Field-Oriented Control (FOC), sensorless control, and digital power control loops. With 32 KB of Flash program memory and 2 KB of RAM, the device provides sufficient code and data space for most single-motor control applications. The motor control peripheral set includes 8 PWM outputs organized as 4 complementary pairs with programmable dead-band generation and fault input protection, a 12-bit SAR ADC with up to 1.1 Msps throughput and 22 input channels, two analog comparators with internal DAC references, and a quadrature encoder interface for position feedback. The 3-channel DMA controller reduces CPU overhead by handling data transfers between peripherals and memory autonomously. Communication peripherals include two UARTs, two SPI ports, and one I2C port for system connectivity. Packaged in a 44-lead TQFP with extended temperature operation and RoHS compliance, the DSPIC33FJ32MC204-E is a proven and cost-effective solution for a wide range of motor control and digital power applications.

The DSPIC33FJ32MC204-E is based on the dsPIC33FJ core, a 16-bit modified Harvard architecture digital signal controller that operates at up to 40 MIPS. The CPU fetches 24-bit wide instructions from Flash program memory while accessing 16-bit wide data from RAM, with separate buses enabling parallel instruction fetch and data access for maximum throughput. The integrated DSP engine provides hardware acceleration for mathematical operations critical to motor control and power conversion: a 17×17-bit hardware multiplier performs single-cycle 16×16 fractional or integer multiplications with accumulation into a 40-bit accumulator; two accumulator registers support back-to-back MAC operations for filter algorithms; and a barrel shifter performs multi-bit shifts in a single cycle. The motor control PWM module is the heart of the device’s motion control capability. It generates up to 8 pulse-width modulated outputs arranged as 4 complementary pairs, each with independently controlled duty cycle and dead-band timing. The PWM time base can operate in various modes including up-count, up-down count, and center-aligned. Fault input pins provide hardware-level over-current protection that can immediately disable PWM outputs when a fault condition is detected, with response times measured in nanoseconds — much faster than software-based protection. The 12-bit SAR ADC converts analog signals to digital values at up to 1.1 million samples per second, with multiple sample-and-hold channels enabling simultaneous sampling of multiple analog inputs — essential for measuring multiple phase currents and voltages in motor control applications. Analog comparators with programmable DAC references provide fast over-current and over-voltage detection without requiring CPU intervention. The quadrature encoder interface (QEI) decodes signals from an incremental rotary encoder, tracking position and direction in hardware to offload this task from the CPU. The 3-channel DMA controller operates independently of the CPU, transferring data between peripherals and memory in the background — for example, automatically storing ADC conversion results into a RAM buffer or loading new PWM duty cycle values from memory. This parallel operation allows the CPU to focus on running the control algorithm while peripheral data movement happens autonomously. The overall architecture is optimized for implementing closed-loop motor control systems: the ADC measures motor currents and voltages, the DSP engine runs the control algorithm (PI controllers, Clarke/Park transforms for FOC, etc.), and the PWM module outputs the resulting gate drive signals — all on a single chip.

The DSPIC33FJ32MC204-E is available in a 44-lead TQFP package. Major pin groups:

Note: Many pins have multiple multiplexed functions. Exact pin assignments depend on package variant and pin configuration settings. Refer to the official dsPIC33FJ32MC204 datasheet for complete pin descriptions and pinout diagrams.

• BLDC Motor Control: Used in brushless DC motor drives for power tools, fans, pumps, and automotive actuators, implementing both sensored (Hall-effect) and sensorless (back-EMF) control algorithms
• PMSM FOC Control: Deployed in permanent magnet synchronous motor drives implementing Field-Oriented Control for high-efficiency, high-performance applications like servo drives, robotics, and industrial automation
• Stepper Motor Controllers: Used in stepper motor drivers for 3D printers, CNC machines, and positioning systems, implementing micro-stepping and closed-loop stepper control
• Switched Reluctance Motor Drives: Found in switched reluctance motor controllers for appliances and automotive applications where the DSP engine handles advanced commutation and control algorithms
• Digital Power Supplies & PFC: Used in switch-mode power supplies, DC-DC converters, and active power factor correction circuits where the DSP engine runs digital control loops with high bandwidth
• Industrial Drives & Automation: Deployed in variable frequency drives, conveyor systems, and industrial automation equipment requiring robust motor control with extended temperature operation
• Automotive Motor Control: Used in automotive applications (fuel pumps, cooling fans, EGR valves, HVAC blowers) where the -40°C to +125°C temperature range supports under-hood and high-temperature environments
• Consumer Appliances & Power Tools: Found in washing machines, refrigerators, power tools, and garden equipment for high-efficiency motor control with robust EMC performance
