DSPIC33FJ64GS606-50I

The DSPIC33FJ64GS606-50I is a dedicated digital power supply 16-bit digital signal controller from Microchip’s dsPIC33FJ ‘GS’ (Green Switching) family, designed specifically for high-efficiency switch-mode power supplies and digital power conversion applications. Unlike general-purpose dsPIC devices, the GS series features an enhanced PWM module with exceptional 2.0 nanosecond resolution, multiple high-speed ADC cores, fast analog comparators, and integrated op amps — all optimized for implementing high-frequency digital power control loops. The dsPIC core operates at 50 MIPS and integrates a full DSP engine with single-cycle 16×16 multiply-accumulate capability, a 40-bit accumulator pair, barrel shifter, and bit-reversed addressing — essential for implementing advanced digital control algorithms like digital compensators (PID/PI controllers, 2-pole 2-zero filters), current-mode control, and feed-forward control. The high-speed PWM module is the centerpiece of the GS series: it provides 12 PWM outputs arranged as 6 complementary pairs, each with an independent time base, programmable dead-band generation, phase-shifting capability, and fault protection inputs. The 2.0ns resolution enables very high switching frequencies (well into the MHz range) with precise duty cycle control, maximizing power supply efficiency and enabling the use of smaller passive components. The 4-channel 10-bit ADC achieves up to 4 megasamples per second with simultaneous sampling capability — critical for multi-channel power supply current and voltage sensing. Four high-speed analog comparators with 12 nanosecond response time provide cycle-by-cycle current limiting and fast fault protection. Four integrated operational amplifiers eliminate the need for external current sense amplifiers in many designs. With 64 KB of Flash program memory, 9 KB of RAM, and 4 DMA channels, there are sufficient resources for complex digital power control algorithms. Communication peripherals include CAN 2.0B for power system networking, plus UART, SPI, and I2C. Packaged in a 64-pin TQFP with industrial temperature range, the DSPIC33FJ64GS606-50I is the ideal choice for high-efficiency digital power supplies, PFC circuits, LED drivers, and renewable energy applications.

The DSPIC33FJ64GS606-50I operates as a digital power controller that replaces traditional analog PWM controller ICs with a fully programmable digital solution. At the core is the 50 MIPS dsPIC DSC, which runs the power supply control algorithm in software — this allows the control loop characteristics (gain, bandwidth, compensation) to be dynamically adjusted, and enables sophisticated features like adaptive control, nonlinear compensation, and communication interfaces that would be difficult or impossible with analog controllers. The high-speed PWM module generates the gate drive signals for the power switching devices (MOSFETs, IGBTs). With 2.0 nanosecond resolution, the PWM duty cycle can be adjusted with extremely fine granularity, even at switching frequencies of 1 MHz or higher. Each PWM pair can be configured for complementary mode (with dead-band to prevent shoot-through), independent mode, or push-pull mode, and phase shifting between multiple channels enables interleaved power converter topologies. The 4-channel 10-bit SAR ADC simultaneously samples multiple analog signals (input voltage, output voltage, inductor current, switch current, etc.) at up to 4 Msps total throughput. The ADC can be triggered by the PWM module at specific points in the switching cycle (e.g., at the midpoint of the on-time), ensuring that current and voltage measurements are taken at optimal moments to avoid switching noise. The high-speed comparators provide cycle-by-cycle current limiting: if the switch current exceeds a programmed threshold, the comparator immediately terminates the current PWM cycle, providing fast over-current protection without CPU intervention — response time is just 12 nanoseconds. The integrated op amps are typically used to amplify the voltage across current sense shunts, providing differential amplification for accurate current measurement. The DMA controller transfers ADC results and PWM duty cycle values in the background, allowing the CPU to focus on running the control algorithm (typically a digital compensator implemented using the DSP engine’s MAC instructions). The overall architecture enables a fully digital control loop: the ADC samples the output voltage/current, the DSP engine runs the compensation algorithm (PI/PID controller, or more advanced 2P2Z/3P3Z digital filters), and the PWM module applies the new duty cycle — all completed within a single switching cycle for high-bandwidth, stable control loops.

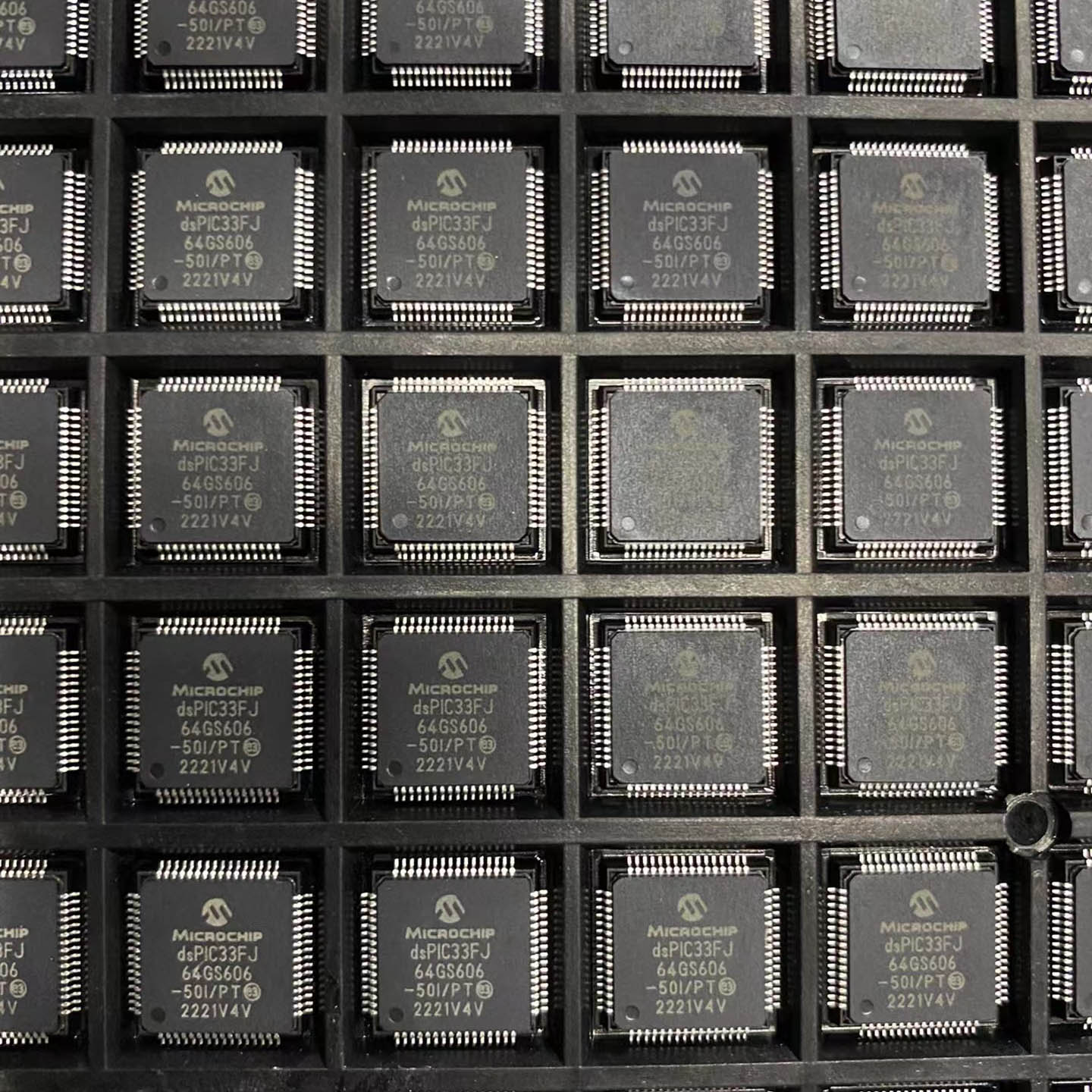

The DSPIC33FJ64GS606-50I is available in a 64-lead TQFP package. Major pin groups:

Note: Many pins have multiple multiplexed functions. Exact pin assignments depend on package variant and pin configuration settings. Refer to the official dsPIC33FJ64GS606 datasheet for complete pin descriptions and pinout diagrams.

• Digital Power Supplies (SMPS): Used in high-efficiency switch-mode power supplies for servers, telecom, datacom, and consumer electronics, implementing digital control loops with adaptive compensation for optimal efficiency across load ranges
• DC-DC Converters: Deployed in buck, boost, buck-boost, flyback, and forward converter topologies, supporting multi-phase and interleaved operation with phase-shifted PWM for high-current applications
• Power Factor Correction (PFC): Used in active PFC circuits for power supplies, LED drivers, and motor drives, where the DSP engine runs PFC control algorithms (CRM, DCM, CCM) to achieve high power factor (>0.99) and low total harmonic distortion
• Digital Lighting & LED Drivers: Used in high-power LED drivers, street lighting, and stage lighting, implementing constant-current control with dimming, color mixing, and power line communication
• Uninterruptible Power Supplies (UPS): Deployed in online UPS systems for inverter control, battery charger management, and grid synchronization, leveraging the high-resolution PWM and fast control loop capability
• Renewable Energy: Used in solar micro-inverters, DC optimizers, small wind power converters, and battery energy storage systems where the DSP engine handles MPPT algorithms and grid-tie control
• Battery Chargers & BMS: Used in battery chargers for EVs, industrial batteries, and consumer electronics, implementing multi-stage charging profiles and battery management functions
• Server & Telecom Power: Deployed in high-density server power supplies and telecom rectifiers requiring high efficiency (80+ Titanium/Platinum), digital communication (PMBus), and advanced power management features
