HCPL-7800A-500E

Broadcom HCPL-7800A-500E optically isolated amplifier, 3750Vrms isolation, 100kHz bandwidth, 8V/V gain, SOIC-8

6780

Effective Inventory
Go to Inquiry

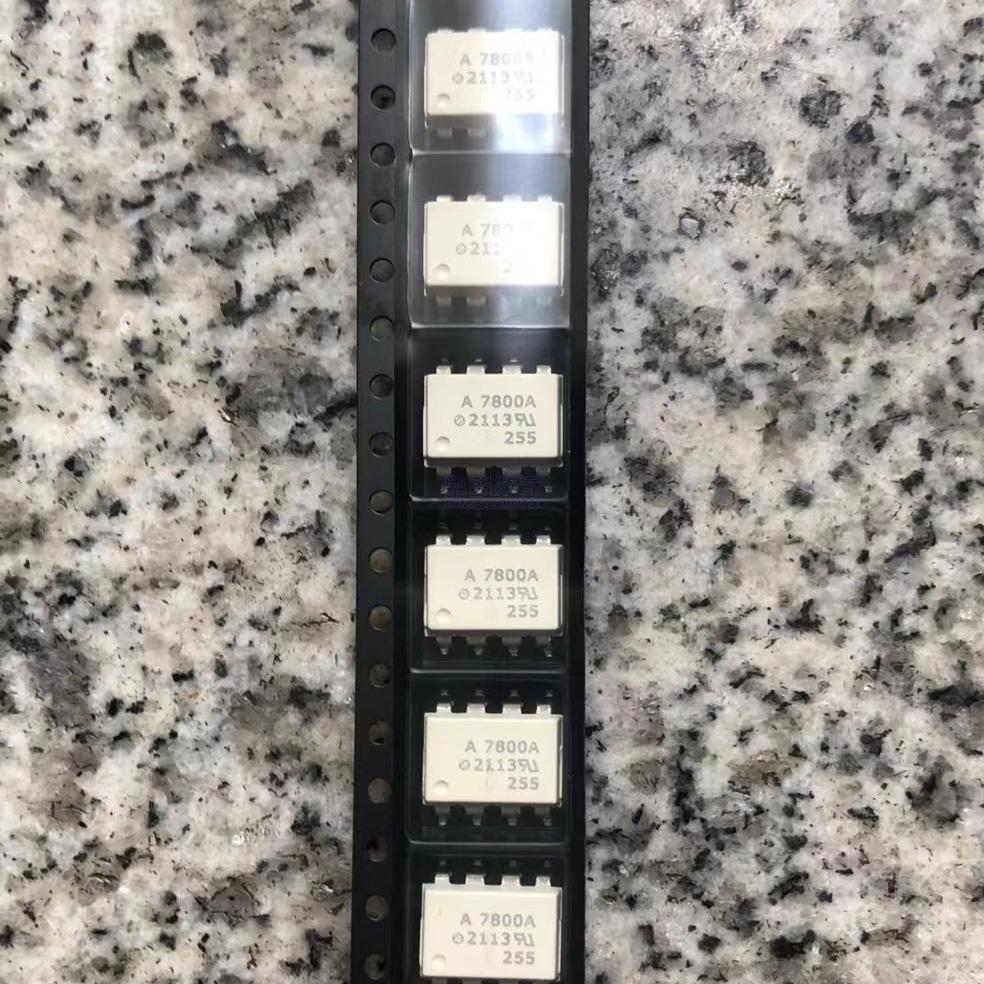

Image for reference only

Manufacturer Part：

HCPL-7800A-500E

Package：

SOIC-8

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

67-235-YDGBGBC-B01E-ET8-CS

15-21UYD/S530-A3/TR8

LTK070WX40HFM026-QC-REV2-LTK

L-937GE/2GEW

R5F1007EANA#40

PIC16F648A-I/SO

PIC32MX340F512H-80I/PT

STM32F415RGT6TR

Description

Product Overview

The HCPL-7800A-500E is an optically isolated amplifier from Broadcom (Avago) designed for precision current and voltage sensing in high-voltage applications. This isolation amplifier provides 3750Vrms galvanic isolation with a 100kHz bandwidth and 8V/V fixed gain.

Key Specifications

Manufacturer Broadcom / Avago
Device Type Optically Isolated Amplifier
Isolation Voltage 3750 Vrms
Gain 8 V/V
Bandwidth 100 kHz
Input Offset Voltage 300 µV max
Supply Voltage 4.5V to 5.5V
Supply Current 10.86 mA
Package SOIC-8 (SMT-8)
Operating Temperature -40°C to +105°C

Features

  • High common-mode transient immunity (CMTI)
  • Precision optical isolation technology
  • Fixed 8V/V gain for easy system design
  • Wide operating temperature range
  • Safety and regulatory approvals (UL, CSA, VDE)
  • RoHS compliant, surface mount package

Applications

  • Motor drive current sensing
  • Switching power supply feedback
  • Industrial inverters and converters
  • Battery management systems
  • Current monitoring in high-voltage systems
  • General purpose isolation amplifiers

The HCPL-7800A-500E is a high-performance optically isolated amplifier manufactured by Broadcom (formerly Avago Technologies). It provides galvanic isolation of up to 3750Vrms while delivering precision analog signal amplification with a fixed gain of 8V/V and 100kHz bandwidth. This device is ideal for current sensing in motor drives, power inverters, and high-voltage monitoring systems where electrical isolation is critical for safety and noise immunity.

The HCPL-7800A uses sigma-delta modulation technology combined with optical coupling to achieve isolated signal transmission. The input side amplifies and converts the analog signal into a digital bitstream, which is then transmitted across the optical isolation barrier. On the output side, the digital signal is reconstructed back into an analog output with 8V/V gain. This approach provides high common-mode rejection and excellent transient immunity.

Pin Number Pin Name Function
1 VDD1 Input Side Power Supply (2.7V to 5.5V)
2 IN- Negative Input (Differential)
3 IN+ Positive Input (Differential)
4 GND1 Input Side Ground
5 GND2 Output Side Ground
6 VOUT Analog Output Voltage
7 VDD2 Output Side Power Supply (4.5V to 5.5V)
8 NC No Connection
  • AC motor drives and servo systems
  • Switch-mode power supplies with isolated feedback
  • Industrial inverters and UPS systems
  • Battery management and monitoring
  • Current sensing in high-voltage systems
  • Photovoltaic inverters
Model Manufacturer Description
HCPL-7800-500E Broadcom Standard version, lower precision
HCPL-7800A-000E Broadcom DIP-8 package version
AMC1200 TI Alternative isolated amplifier
