Product Overview

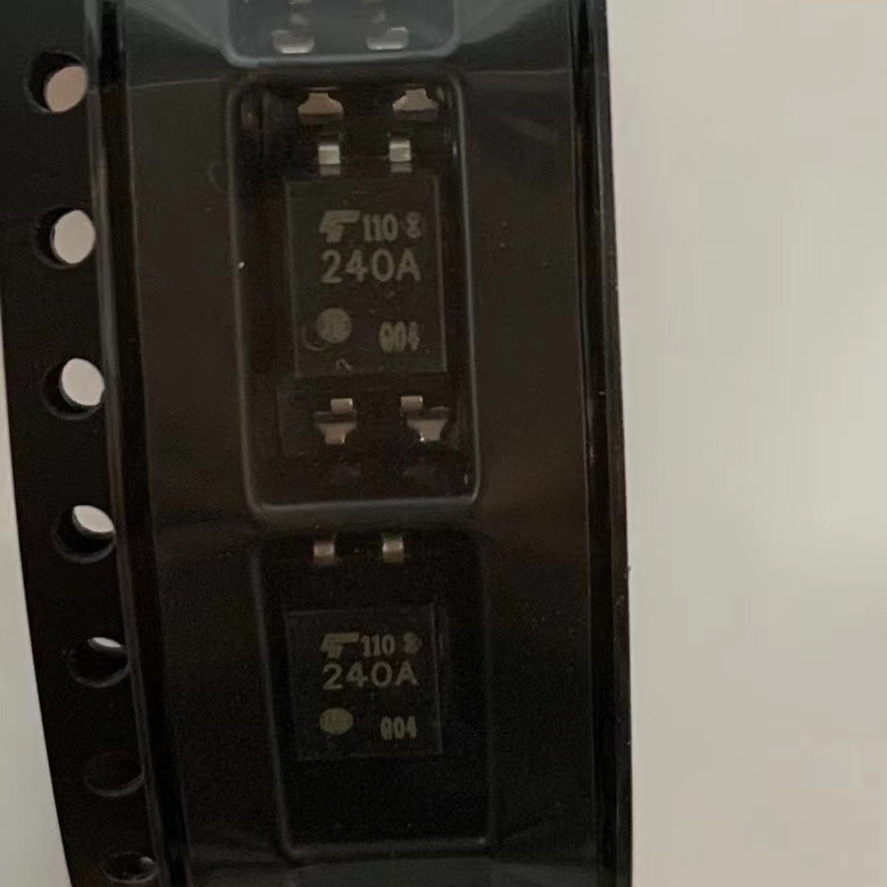

The TLP240ATP1F is the surface-mount tape-and-reel variant of Toshiba’s TLP240A single-channel MOSFET-output photorelay. Featuring TP1 gull-wing lead forming for surface-mount assembly and supplied in 1500-piece tape-and-reel packaging, it is optimized for high-volume automated SMT production. The device offers 60 V off-state voltage, 0.5 A on-state current, and a low 2 ohm maximum on-resistance with just 3 mA trigger LED current. It provides 5000 Vrms reinforced isolation between the input LED and output MOSFET, certified to UL 1577, cUL (CSA), VDE (EN 60747-5-5), and CQC (GB 4943.1-2022) standards. RoHS compliant and halogen-free, the TLP240ATP1F delivers all the benefits of the TLP240A photorelay including long operational life, no contact bounce, and bidirectional switching capability in a surface-mountable format ideal for modern PCB designs in industrial automation, security systems, measurement instrumentation, and smart metering applications.
Key Specifications
| Type | Photorelay (MOSFET Output, 1-Form-A) |
| Number of Channels | 1 |
| OFF-State Output Voltage (V_OFF) | 60 V (min) |
| ON-State Current (I_ON) | 0.5 A (max, continuous) |
| On-State Resistance (R_ON) | 2 ohms (max @ I_F=5mA, I_ON=0.5A) |
| Trigger LED Current (I_FT) | 3 mA (max) |
| Terminal Capacitance (C_OFF) | 130 pF (typ.) |
| Isolation Voltage (BVS) | 5000 Vrms (min, 1 min) |
| Turn-ON Time (t_ON) | 3 ms (max) |
| Turn-OFF Time (t_OFF) | 1 ms (max) |
| Operating Temperature | -40 degC to +85 degC |
| Safety Standards | UL 1577, cUL, VDE, CQC approved |
| RoHS / Halogen Free | Yes |
| Lead Form | TP1 (gull-wing SMD lead) |
| Packaging | Tape & Reel, 1500 pcs/reel |
| Package Type | DIP-4 with surface mount lead forming |
Features
- Single-channel photorelay, MOSFET output (1-Form-A / normally open)
- OFF-state voltage: 60 V minimum
- ON-state current: 0.5 A maximum
- On-resistance: 2 ohms maximum
- Low trigger LED current: 3 mA max
- 5000 Vrms reinforced isolation (1 minute)
- Fast switching: t_ON 3 ms, t_OFF 1 ms maximum
- TP1 surface mount lead form (gull-wing)
- Tape and reel packaging for automated SMT assembly
- UL 1577, cUL, VDE, and CQC safety certified
- RoHS compliant, halogen-free construction
- Bidirectional output (switches both AC and DC)
- No contact bounce, no contact wear, long life
- Low off-state capacitance: 130 pF typical
- Wide operating temperature: -40 degC to +85 degC
Applications
- High-volume surface-mount PCB production
- Factory automation and industrial I/O modules
- Security systems and access control equipment
- Measurement instrumentation and DAQ systems
- Smart meters and energy management systems
- Medical device isolation and patient monitoring
- Mixed-technology PCB assemblies
- Signal switching and multiplexing
- Telecommunications equipment
- Building automation and HVAC control
