IR1155STRPBF

Infineon IR1155STRPBF PFC controller, One Cycle Control, 48-200kHz, 1.5A gate drive, SOIC-8

8760

Effective Inventory
Go to Inquiry

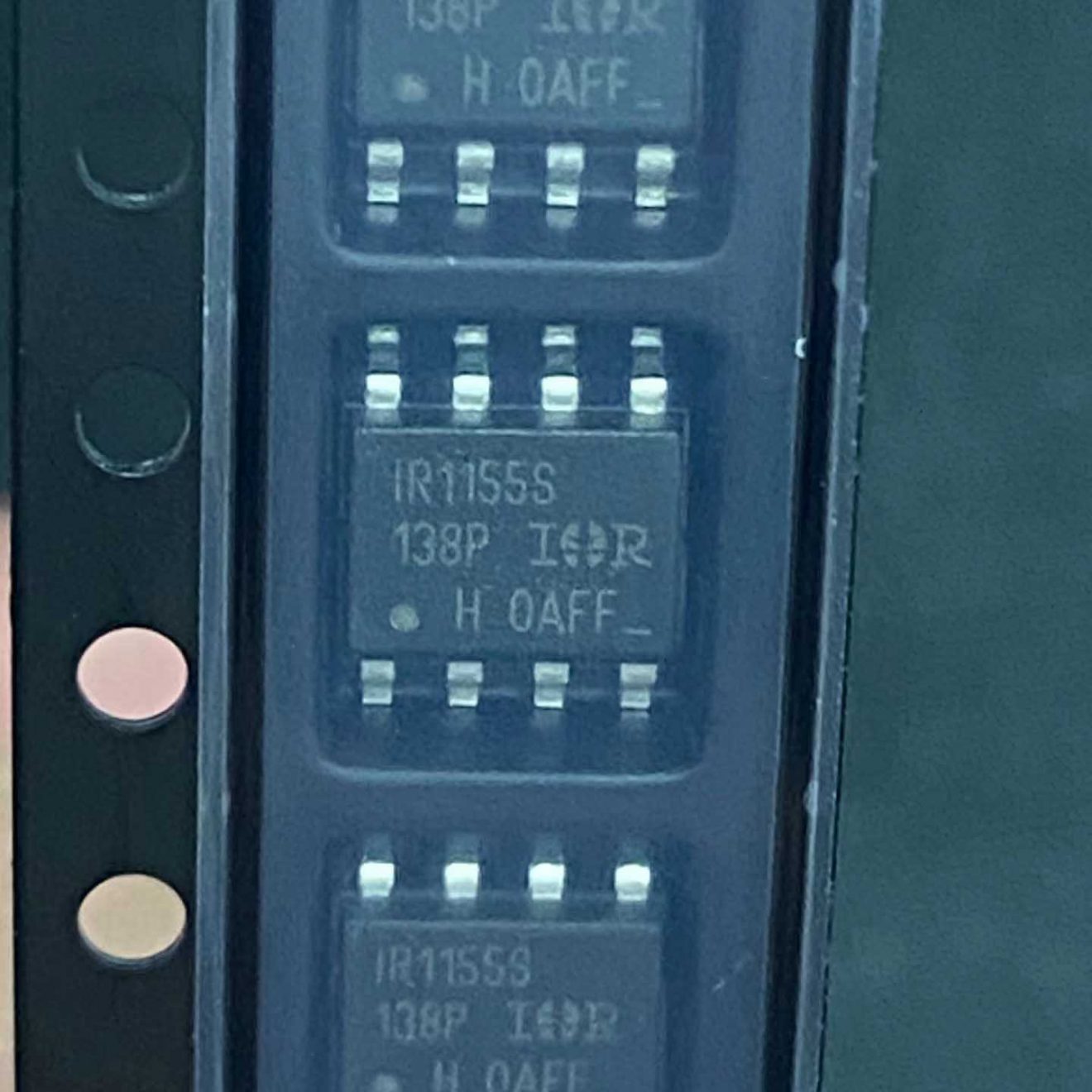

Image for reference only

Manufacturer Part：

IR1155STRPBF

Package：

SOIC-8

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

OC5A2B00

NCV887103D1R2G

NAE12S17-A

MIC4428YM

MIC2951-03BN

LTM4673Y

LTC3780IG

LTC3112EFE

Description

Product Overview

The IR1155STRPBF is a high-performance Power Factor Correction (PFC) controller IC from Infineon Technologies. Featuring proprietary One Cycle Control (OCC) technology with programmable frequency, this device enables compact, efficient CCM boost PFC designs with minimal external components.

Key Specifications

Manufacturer Infineon Technologies
Device Type PFC Controller (CCM)
Control Method One Cycle Control (OCC), Average Current Mode
Switching Frequency 48 kHz to 200 kHz (programmable)
Supply Voltage Range 12 V to 19 V
UVLO Threshold 9.8 V (turn-off)
Startup Current 175 µA (typ)
Operating Current 10 mA (typ)
Gate Drive Current 1.5 A peak
Package SOIC-8
Operating Temperature -25°C to +125°C

Features

  • One Cycle Control (OCC) PFC technology
  • Continuous Conduction Mode (CCM) boost PFC
  • Programmable switching frequency: 48kHz to 200kHz
  • Average current mode control
  • Output overvoltage protection (OVP)
  • Cycle-by-cycle peak current limit
  • Programmable soft-start
  • Micropower startup and sleep mode
  • 1.5A peak gate drive output
  • RoHS compliant, SOIC-8 package

Applications

  • Active Power Factor Correction circuits
  • ATX and server power supplies
  • Telecom power systems
  • LED lighting drivers
  • Industrial power supplies
  • Consumer electronics SMPS
  • Home appliance power modules

The IR1155STRPBF is Infineon’s µPFC (micro-PFC) controller IC featuring proprietary One Cycle Control (OCC) technology for active power factor correction. Operating in continuous conduction mode (CCM) with average current mode control, the IR1155S achieves near-unity power factor and low total harmonic distortion while dramatically reducing component count compared to traditional PFC solutions. The switching frequency is user-programmable from 48kHz to 200kHz via a single capacitor. The device integrates comprehensive protection features including output overvoltage protection, cycle-by-cycle peak current limit, open-loop protection, VCC undervoltage lockout, and programmable soft-start. With micropower startup current of only 175µA and sleep mode capability, the IR1155STRPBF helps meet strict standby power regulations.

The IR1155STRPBF uses One Cycle Control (OCC) technology to achieve power factor correction. This control method forces the input current to follow the input voltage waveform by controlling the duty cycle such that the average input current is proportional to the input voltage within each switching cycle. A resettable integrator generates a PWM ramp that tracks the voltage error signal (Vm) each cycle. The amplified current sense signal is subtracted from Vm and compared with the PWM ramp to determine the duty cycle. This approach eliminates the need for an external multiplier and provides inherent feed-forward from line voltage variations. The 1.5A totem-pole gate driver directly drives external power MOSFETs with internal clamping at 13V.

Pin Number Pin Name Function
1 COMP Error Amplifier Output / Compensation
2 VFB Output Voltage Feedback Input
3 FREQ Oscillator Frequency Programming
4 OVP/EN Overvoltage Protection / Enable
5 ISNS Current Sense Input
6 COM Ground / Common
7 GATE Gate Drive Output
8 VCC Power Supply Input
  • Active PFC stages in ATX and server power supplies
  • Telecommunications power systems
  • High-power LED driver front-ends
  • Industrial switch-mode power supplies
  • Consumer electronics power adapters
  • Home appliance power modules
  • Uninterruptible power supplies
Model Manufacturer Description
IR1150S Infineon Fixed frequency OCC PFC controller
ICE1PCS01 Infineon CCM PFC controller
L6562 STMicroelectronics Alternative transition mode PFC
