IR21531STRPBF

Infineon IR21531STRPBF self-oscillating half-bridge driver, 600V, 180mA/260mA, SOIC-8

1097

Effective Inventory

Go to Inquiry

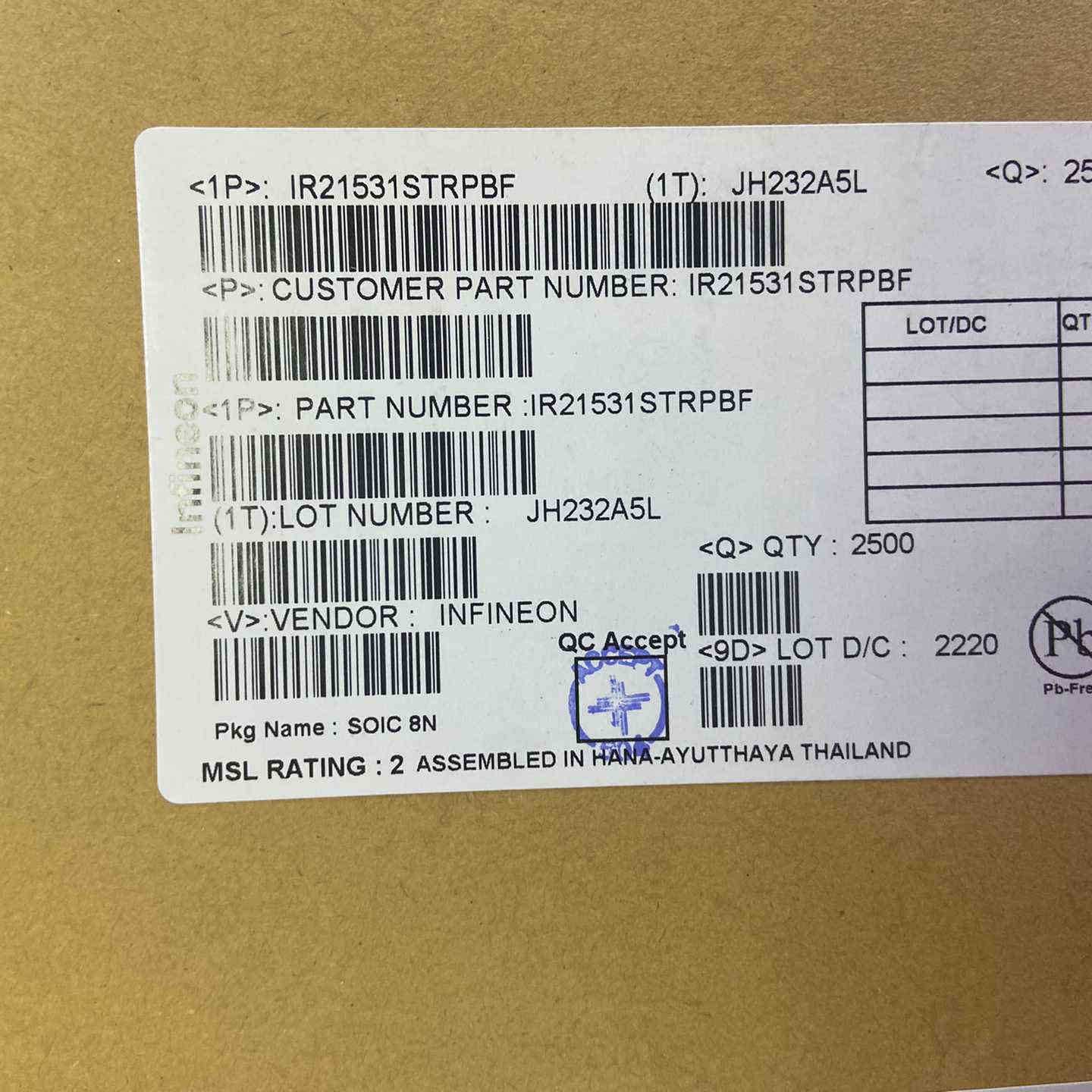

Image for reference only

Manufacturer Part：

IR21531STRPBF

Package：

SOIC-8

Description

Product Overview

The IR21531STRPBF is a self-oscillating 600V half-bridge gate driver IC from Infineon Technologies. With integrated oscillator and both high-side and low-side drivers in a SOIC-8 package, this device provides a compact solution for half-bridge resonant converters, lamp ballasts, and switch-mode power supplies.

Key Specifications

Manufacturer	Infineon Technologies
Device Type	Self-Oscillating Half-Bridge Driver
V_OFFSET	600 V (max)
Output Current (Source/Sink)	180 mA / 260 mA (typ)
Oscillator Frequency Range	Programmable via RT/CT
Dead Time	0.6 µs (typ)
VCC Zener Clamp	15.4 V (typ)
Micropower Startup	Yes
Shutdown Feature	CT pin, non-latched
Package	SOIC-8
Operating Temperature	-40°C to +125°C

Features

Integrated 600V half-bridge driver
CT/RT programmable oscillator (555-like)
15.4V Zener clamp on VCC
Micropower startup current
Non-latched shutdown on CT pin
Internal bootstrap FET (IRS21531D variant)
Internal dead time: 0.6µs typical
dV/dt immunity: 50 V/ns
RoHS compliant, SOIC-8 package

Applications

Electronic lamp ballasts
Half-bridge resonant converters
DC-DC converters
EV charging systems
Power tools
Motor control
Domestic robotics
Switch-mode power supplies

Product Introduction:IR21531STRPBF Product Introduction

The IR21531STRPBF is an improved version of the popular IR2153 self-oscillating half-bridge gate driver from Infineon Technologies. This device incorporates a high-voltage half-bridge gate driver with a front-end oscillator similar to the industry-standard CMOS 555 timer, all in a single SOIC-8 package. Compared to previous generations, the IR21531 features better noise immunity through lower peak di/dt gate drivers and increased UVLO hysteresis. A shutdown feature on the CT pin allows both gate driver outputs to be disabled with a low-voltage control signal. The device maintains constant HO and LO pulse widths at startup for more stable frequency vs time profile. With micropower startup and 15.4V Zener clamp on VCC, the IR21531S is ideal for offline half-bridge applications including electronic ballasts and resonant converters.

Working Principle:IR21531STRPBF Working Principle

The IR21531STRPBF integrates an RT/CT programmable oscillator with a high-voltage half-bridge driver. The oscillator operates similarly to a 555 timer, with the timing capacitor (CT) charging between 1/3 and 2/3 of VCC through the timing resistor (RT). The oscillator alternately drives the high-side (HO) and low-side (LO) outputs with approximately 50% duty cycle. Internal dead time of approximately 0.6µs prevents shoot-through. The high-side driver uses bootstrap technique to operate at up to 600V offset voltage. The CT pin doubles as a shutdown input – pulling CT below 1/6 VCC disables both outputs. Micropower startup circuitry allows the device to be powered directly from the high-voltage bus through a startup resistor.

Pin Description:IR21531STRPBF Pin Definition and Functions

Pin Number	Pin Name	Function
1	VCC	Supply Voltage (with 15.4V Zener clamp)
2	HO	High-Side Gate Drive Output
3	VB	Floating High-Side Supply (Bootstrap)
4	RT	Oscillator Timing Resistor
5	CT	Oscillator Timing Capacitor / Shutdown
6	SD/SD	Shutdown Pin (variant dependent)
7	COM	Common / Ground
8	LO	Low-Side Gate Drive Output
