IR2156STRPBF

Infineon IR2156STRPBF ballast control IC with half-bridge driver, 600V, SOIC-14

7989

Effective Inventory
Go to Inquiry

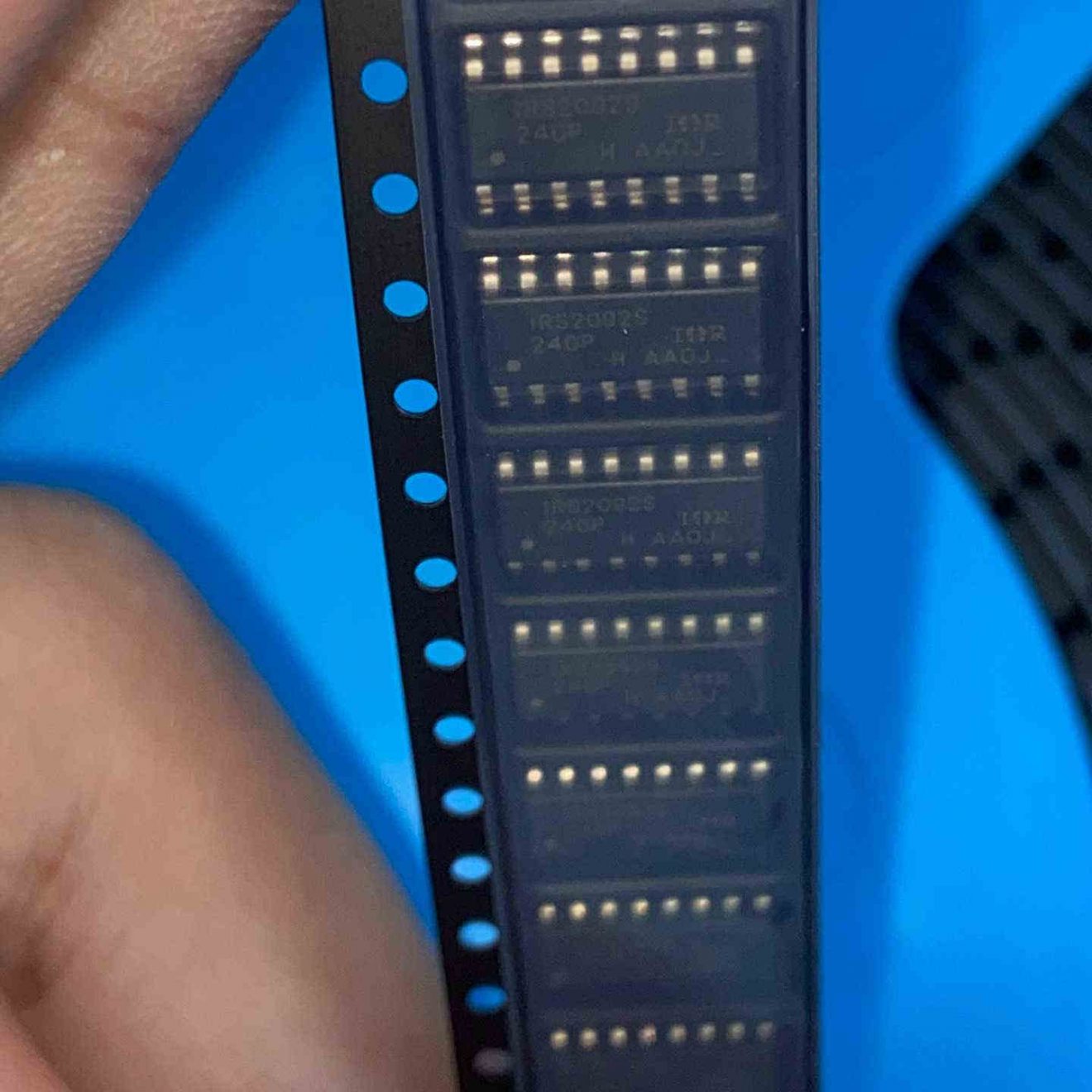

Image for reference only

Manufacturer Part：

IR2156STRPBF

Package：

SOIC-14 NB

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

OC5A2B00

NCV887103D1R2G

NAE12S17-A

MIC4428YM

MIC2951-03BN

LTM4673Y

LTC3780IG

LTC3112EFE

Description

Product Overview

The IR2156STRPBF is a comprehensive ballast control IC from Infineon Technologies, integrating a high-voltage half-bridge gate driver with a programmable oscillator and complete state machine for Compact Fluorescent Lamp (CFL) ballast applications. Features include programmable preheat, ignition, and run modes.

Key Specifications

Manufacturer Infineon Technologies
Device Type Ballast Control IC with Half-Bridge Driver
V_OFFSET 600 V (max)
Output Current (Source/Sink) 250 mA / 400 mA
Supply Voltage Range 10 V to 25 V
Operating Frequency 36 kHz to 44 kHz (typ range)
Startup Current 150 µA (typ)
VCC Zener Clamp 15.6 V (typ)
Protection Features OCP, UVLO, brown-out, fault latch
Package SOIC-14 (narrow)
Operating Temperature -25°C to +125°C

Features

  • Ballast control and half-bridge driver in one IC
  • Programmable preheat frequency and time
  • Internal ignition ramp
  • Programmable run frequency and dead time
  • Programmable overcurrent threshold
  • DC bus undervoltage reset
  • Shutdown pin with hysteresis
  • 15.6V Zener clamp on VCC
  • Micropower startup (150µA)
  • Latch immunity and ESD protection

Applications

  • Compact fluorescent lamp (CFL) ballasts
  • Fluorescent lamp electronic ballasts
  • Resonant half-bridge converters
  • Lighting control systems
  • Home and building automation
  • Dimmable ballast circuits

The IR2156STRPBF is a complete ballast control IC from Infineon Technologies that combines a high-voltage half-bridge gate driver with a programmable oscillator and comprehensive state machine for fluorescent lamp ballast applications. This device provides programmable preheat frequency and time, internal ignition ramp, programmable run frequency, and programmable dead time – all in a single 14-pin SOIC package. Comprehensive protection features include overcurrent protection (CS pin), lamp strike failure detection, filament failure detection, DC bus undervoltage reset, and automatic restart. The IR2156 operates with micropower startup (150µA typical) and includes an internal 15.6V Zener clamp on VCC for offline operation. Latch immunity and ESD protection ensure reliable operation in harsh environments.

The IR2156STRPBF operates in several distinct modes to implement a complete fluorescent lamp ballast function. At startup, the IC enters Preheat Mode where it oscillates at the preheat frequency determined by RT and RPH resistors in parallel with CT. During this time, the CPH pin capacitor charges linearly, and when CPH reaches 13V, the IC transitions to Ignition Mode. In Ignition Mode, the frequency ramps down from preheat frequency to run frequency as the RPH resistor is gradually disconnected, generating the high voltage needed to strike the lamp. Once the lamp ignites, the IC enters Run Mode where the frequency is determined by RT and CT, and the lamp operates at steady-state. Overcurrent protection (1.3V threshold on CS pin) triggers Fault Mode, latching both outputs low until VCC is recycled or SD pin is toggled.

Pin Number Pin Name Function
1 VCC Power Supply (with 15.6V Zener clamp)
2 VB High-Side Floating Supply (Bootstrap)
3 HO High-Side Gate Drive Output
4 VS High-Side Floating Return
5 LO Low-Side Gate Drive Output
6 COM Common / Ground
7 CS Current Sense Input (OCP)
8 CPH Preheat Timing Capacitor
9 VDC DC Bus Voltage Sensing
10 RPH Preheat Frequency Resistor
11 RT Run Frequency Timing Resistor
12 CT Timing Capacitor
13 SD Shutdown Input
14 NC No Connection
  • Compact fluorescent lamp (CFL) ballasts
  • Linear fluorescent lamp ballasts
  • Resonant half-bridge lighting power supplies
  • Home and building automation lighting
  • Industrial lighting control
  • Dimmable fluorescent ballast circuits
Model Manufacturer Description
IR2156PBF Infineon DIP-14 through-hole version
IR2159 Infineon Dimmable ballast controller
L6574 STMicroelectronics Alternative ballast driver
