IR2184PBF

Infineon IR2184PBF half-bridge gate driver, 600V, 1.4A/1.8A, internal dead time, PDIP-8

2975

Effective Inventory

Go to Inquiry

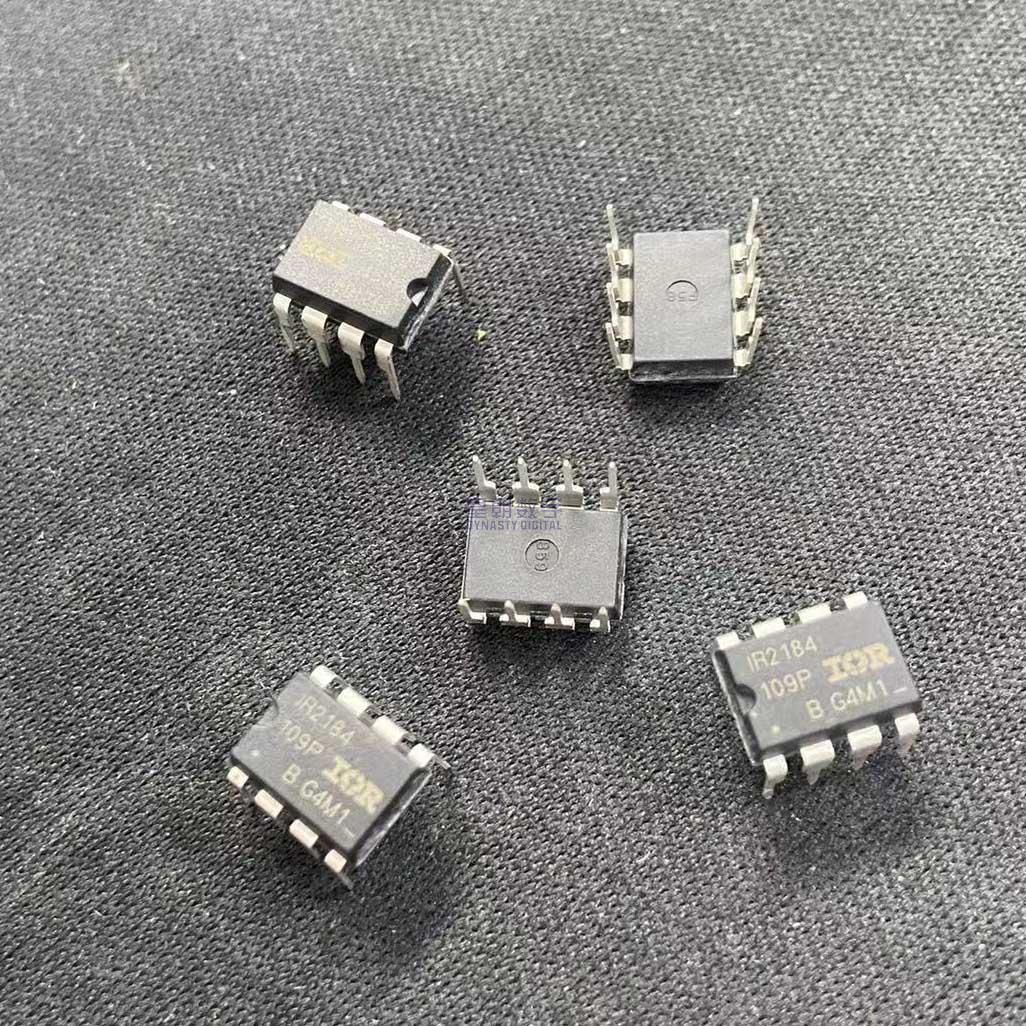

Image for reference only

Manufacturer Part：

IR2184PBF

Package：

PDIP-8

Description

Product Overview

The IR2184PBF is a high-voltage half-bridge gate driver IC from Infineon Technologies in a PDIP-8 through-hole package. This 600V driver features single-input complementary output control with internal dead time, designed for driving N-channel power MOSFETs and IGBTs in half-bridge configurations.

Key Specifications

Manufacturer	Infineon Technologies
Device Type	Half-Bridge Gate Driver
V_OFFSET	600 V (max)
Output Current (Source/Sink)	1.4 A / 1.8 A (typ)
Supply Voltage Range	10 V to 20 V
Dead Time	Internal ~500 ns (typ)
Propagation Delay	680 ns (on) / 270 ns (off)
Input Logic	CMOS / LSTTL, 3.3V/5V compatible
Package	PDIP-8 (8-Lead DIP)
Operating Temperature	-40°C to +125°C

Features

Floating channel for bootstrap operation up to 600V
Internal dead time (~500ns) prevents shoot-through
Output source/sink current: 1.4A/1.8A
dV/dt immune, negative transient tolerant
Undervoltage lockout for both channels
3.3V and 5V input logic compatible
Matched propagation delay
Lower di/dt for better noise immunity
Single input controls both channels
PDIP-8 through-hole package

Applications

Half-bridge DC-DC converters
Switch-mode power supplies
Motor drives
Electronic ballasts
LED lighting drivers
Class D audio amplifiers
UPS systems
Industrial power supplies

Product Introduction:IR2184PBF Product Introduction

The IR2184PBF is a high-voltage, high-speed half-bridge power MOSFET and IGBT driver from Infineon Technologies in a PDIP-8 through-hole package. This device integrates both high-side and low-side drive channels with complementary output operation controlled by a single logic input. Built on Infineon’s proven HVIC and latch-immune CMOS technologies, the IR2184 delivers rugged monolithic construction with excellent noise immunity. Internal dead time of approximately 500ns ensures reliable operation by preventing cross-conduction in the power stage. With its 1.4A source and 1.8A sink drive capability and 600V voltage rating, the IR2184PBF is suitable for a wide range of half-bridge power conversion applications from low to medium power levels, with the DIP package providing ease of prototyping and through-hole mounting.

Working Principle:IR2184PBF Working Principle

The IR2184PBF operates as a complementary-output half-bridge gate driver with a single control input. The IN pin controls both high-side (HO) and low-side (LO) outputs with complementary switching and built-in dead time. When IN is high, LO is high and HO is low. When IN goes low, after the internal dead time delay, LO turns off and HO turns on. This single-input architecture with internal dead time simplifies half-bridge designs by eliminating the need for external dead time generation. The high-side driver operates from a floating bootstrap supply (VB-VS) capable of 600V offset voltage. The low-side driver operates from the fixed VCC supply. UVLO circuitry on both channels ensures outputs remain low if supply voltage is below the threshold. The device’s outputs feature lower di/dt characteristics for improved noise immunity.

Pin Description:IR2184PBF Pin Definition and Functions

Pin Number	Pin Name	Function
1	VCC	Low-Side Power Supply (10-20V)
2	HO	High-Side Gate Drive Output
3	VB	High-Side Floating Supply (Bootstrap)
4	IN	Logic Input (Controls Both Channels)
5	COM	Common / Ground
6	LO	Low-Side Gate Drive Output
7	VS	High-Side Floating Return
8	SD	Shutdown Input (Active High)
