Product Overview

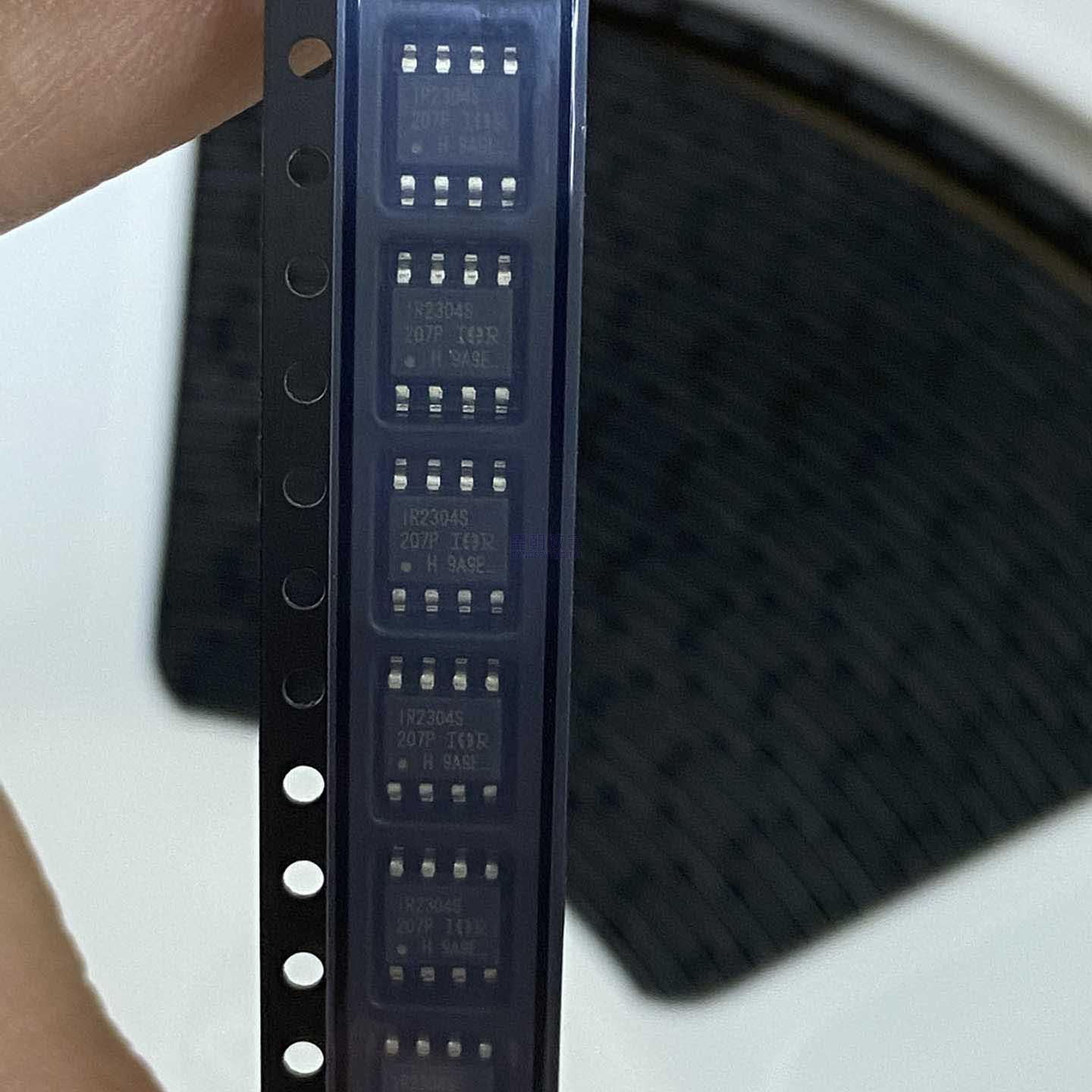

The IR2304STRPBF is a high voltage, high speed half-bridge gate driver from Infineon Technologies (formerly International Rectifier). Designed for driving N-channel power MOSFETs and IGBTs, it features independent high-side and low-side referenced output channels in a compact SOIC-8 package. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration, operating up to 600V.
Key Specifications
| Parameter | Value |
| Voltage Rating (VOFFSET) | 600V max |
| Output Source Current | 290mA (typ) |
| Output Sink Current | 600mA (typ) |
| Gate Drive Supply Range | 10V to 20V |
| Propagation Delay (ton/toff) | 150ns/150ns (typ) |
| Dead Time (Internal) | 100ns (typ) |
| Delay Matching | 50ns max |
| Input Logic Compatibility | 3.3V, 5V, 15V |
| Operating Temperature | -40°C to +125°C |
| Package | SOIC-8 |
Features
- Floating channel designed for bootstrap operation up to +600V
- Tolerant to negative transient voltage, dV/dt immune
- Under voltage lockout (UVLO) for both channels
- Cross-conduction prevention logic
- Matched propagation delay for both channels
- Lower di/dt gate driver for better noise immunity
- Internal 100ns dead-time
- Output in phase with input
- RoHS compliant and lead-free
Applications
- Switch-mode power supplies (SMPS)
- Motor drives and inverters
- Half-bridge and full-bridge converters
- DC-DC converters
- Power factor correction (PFC)
- Industrial motor control
