IRS20957STRPBF

Protected Class-D audio gate driver, ±100V floating channel, 1A/1.2A output, SOIC-16

8742

Effective Inventory
Go to Inquiry

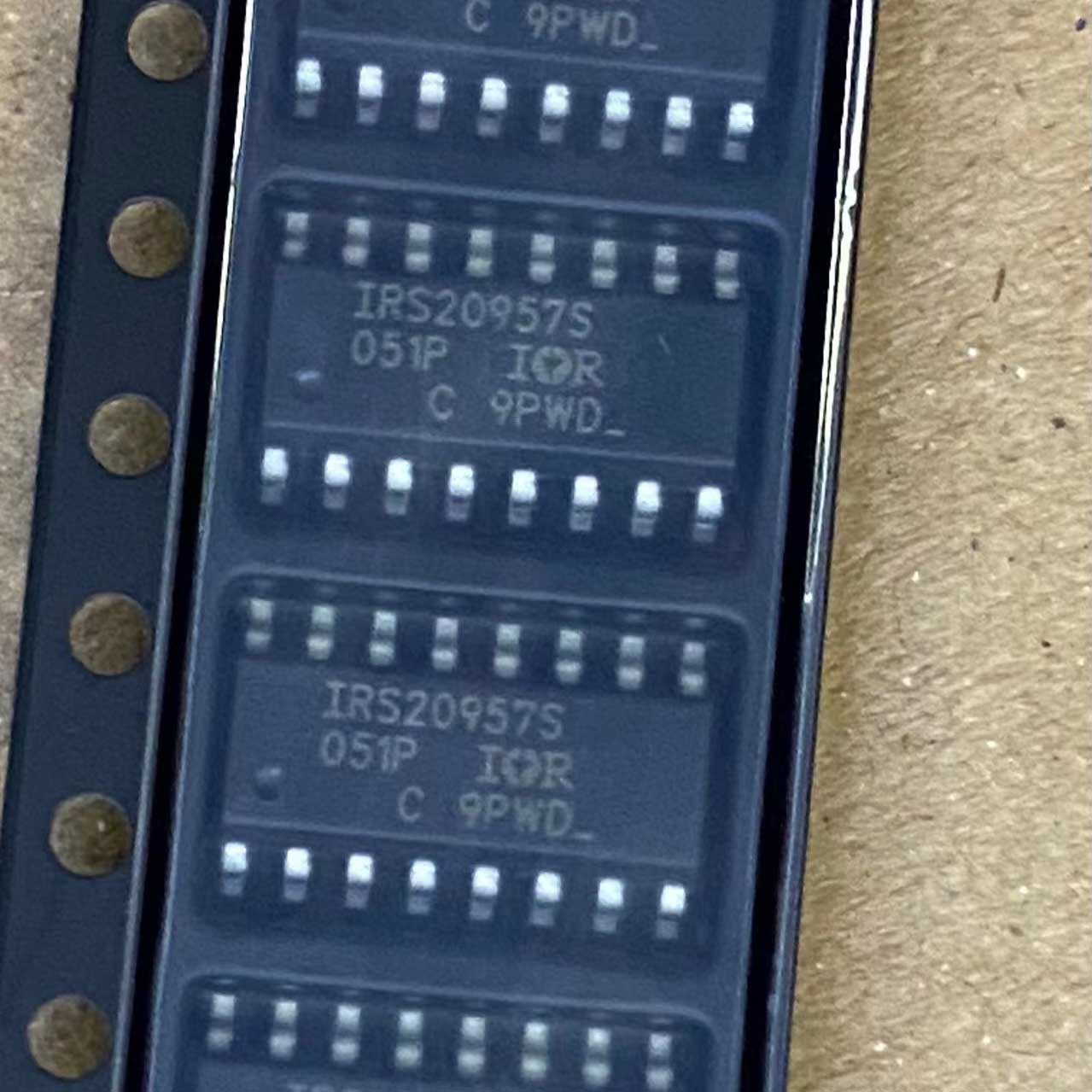

Image for reference only

Manufacturer Part：

IRS20957STRPBF

Package：

SOIC-16N / PG-DSO-16 (9.98 x 3.99 x 1.75 mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

OC5A2B00

NCV887103D1R2G

NAE12S17-A

MIC4428YM

MIC2951-03BN

LTM4673Y

LTC3780IG

LTC3112EFE

Description

Product Overview

The IRS20957STRPBF is a protected digital audio driver IC with floating PWM input, manufactured by Infineon Technologies. Packaged in a SOIC-16 narrow package (PG-DSO-16), this high-voltage, high-speed MOSFET driver is specifically designed for Class-D audio amplifier applications. It forms a complete Class-D amplifier stage with dual over-current and shoot-through protection, as well as UVLO protection for three bias supplies. The dead-time generation module enables precise gate switching and optimal dead-time settings, reducing THD+N and noise floor. With a floating channel rated for ±100V, the IRS20957STRPBF can deliver up to 500W of output power and operates at frequencies up to 800 kHz.

Key Specifications

Manufacturer Infineon Technologies
Product Type Class-D Audio Gate Driver
Configuration High and Low Side (Half Bridge)
Number of Outputs Dual (2 Channels)
Floating Channel Rating ±100 V
Output Current (Source) 1 A
Output Current (Sink) 1.2 A
Supply Voltage (Vcc) 10 V to 15 V
Operating Frequency Up to 800 kHz
Input Logic 3.3 V / 5 V Compatible
Turn-on Delay 95 ns
Turn-off Delay 80 ns
Rise Time 15 ns
Fall Time 10 ns
Quiescent Current 3 mA
Operating Temperature -40°C to +125°C
Package SOIC-16N (PG-DSO-16)
Packaging Tape & Reel (2500 units/reel)

Features

  • Floating PWM input enables easy half-bridge implementation
  • Programmable bidirectional over-current protection with self-reset function
  • Programmable preset dead-time for improved THD performance
  • High noise immunity for robust operation in noisy environments
  • ±100 V ratings deliver up to 500 W output power
  • 3.3 V / 5 V logic compatible input interface
  • Operates up to 800 kHz switching frequency
  • Under-voltage lockout (UVLO) protection for three bias supplies
  • Shoot-through protection for enhanced reliability

Applications

  • Home theatre systems and high-end audio equipment
  • Mini component stereo systems and powered speakers
  • General purpose audio power amplifiers
  • Class-D amplifier stages for professional audio
  • TV audio systems and soundbars
  • Automotive audio systems (with appropriate qualification)

The IRS20957STRPBF from Infineon Technologies is a high-performance, protected digital audio driver IC featuring a floating PWM input architecture. Designed specifically for Class-D audio amplifier applications, this device integrates high-voltage, high-speed MOSFET gate drivers with comprehensive protection features. The IRS20957S forms a complete Class-D amplifier with dual over-current protection, shoot-through protection, and UVLO protection for three separate bias supplies. The integrated dead-time generation module provides precise gate switching timing with programmable dead-time settings, enabling optimized THD+N performance and reduced noise floor. With its ±100V floating channel rating, the device can support audio power levels up to 500W per channel. The 3.3V/5V logic-compatible input and operation up to 800kHz make it versatile for various Class-D amplifier topologies. Available in a space-saving SOIC-16 narrow package (PG-DSO-16) in tape and reel packaging, the IRS20957STRPBF is ideal for consumer and professional audio applications requiring high efficiency, robust protection, and excellent audio quality.

The IRS20957STRPBF operates as a half-bridge gate driver for Class-D audio amplifiers. Its architecture consists of three main subsystems: 1) Input Logic and Timing Control: The floating PWM input accepts 3.3V/5V logic signals and processes them through dead-time generation circuitry, ensuring both high-side and low-side drivers never conduct simultaneously (shoot-through prevention). The dead time is programmable for optimal THD performance. 2) High-Voltage Level Shifter and Gate Drivers: A proprietary HVIC (High-Voltage Integrated Circuit) level shifter transfers the control signals from the low-voltage logic domain to the floating high-side channel, rated for ±100V. Both high-side and low-side gate drivers provide high peak current drive (1A source / 1.2A sink) for fast MOSFET switching with rise/fall times of 15ns/10ns. 3) Protection System: The device features comprehensive protection including programmable bidirectional over-current protection with self-reset capability, under-voltage lockout (UVLO) on Vcc, VBS, and VCC supplies, and shoot-through protection. These protection mechanisms ensure reliable operation under fault conditions and prevent damage to both the driver IC and the external power MOSFETs.

Pin Name Type Function
1 VCC Power Logic and low-side driver supply voltage (10-15V)
2 PWM IN Input Floating PWM input (3.3V/5V logic compatible)
3 OCP Input Over-current protection programming pin
4 DT Input Dead-time programming pin
5 COM Ground Low-side return / common ground
6 LO Output Low-side gate driver output
7 VS Power High-side floating supply return
8 HO Output High-side gate driver output
9 VB Power High-side floating supply voltage
10 VSS Ground Floating logic ground
11-16 NC/Various – Additional pins for programming, sensing, and supply connections
  • High-power Class-D audio amplifiers for home theater systems
  • Powered speaker systems and active loudspeakers
  • Mini and micro component stereo systems
  • Professional audio power amplifiers and monitors
  • Soundbars and TV audio systems
  • Automotive audio amplifier modules
Manufacturer Part Number Package Notes
Infineon IRS20957SPBF SOIC-16 Tube version, same die
Infineon IRS20954STRPBF SOIC-16 Lower power variant, 200W
Texas Instruments TAS5630 HTSSOP-44 Integrated Class-D amp, 2x300W
STMicroelectronics STA508 PowerSO-36 160W single-channel Class-D
NXP TDA8954TH HSOP-24 420W Class-D amplifier
