IRS2101STRPBF

600V high/low side gate driver, 0.29A/0.6A output, SOIC-8, EiceDRIVER

12358

Effective Inventory
Go to Inquiry

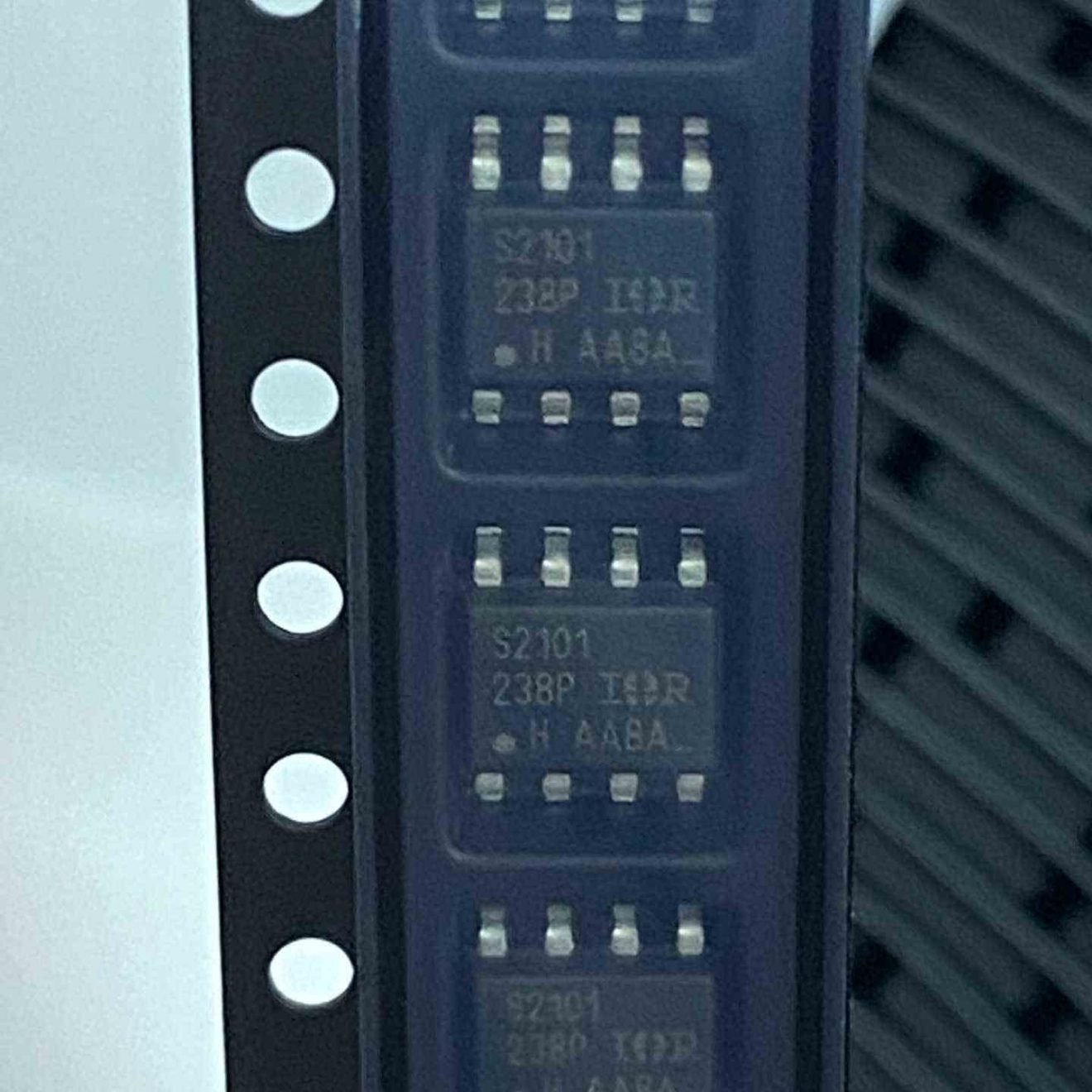

Image for reference only

Manufacturer Part：

IRS2101STRPBF

Package：

SOIC-8N (4.9 x 3.9 x 1.5 mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

OC5A2B00

NCV887103D1R2G

NAE12S17-A

MIC4428YM

MIC2951-03BN

LTM4673Y

LTC3780IG

LTC3112EFE

Description

Product Overview

The IRS2101STRPBF is a 600V high-side and low-side gate driver IC from Infineon Technologies’ EiceDRIVER™ family. Packaged in an 8-lead SOIC-8N package, this high-voltage, high-speed power MOSFET and IGBT driver features independent high-side and low-side referenced output channels. Proprietary HVIC and latch-immune CMOS technologies enable a rugged monolithic construction. The logic input is compatible with standard CMOS or LSTTL outputs, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration, operating up to 600V.

Key Specifications

Manufacturer Infineon Technologies
Product Type High and Low Side Gate Driver
Voltage Rating 600 V
Configuration Half-Bridge (High + Low Side)
Number of Channels 2 (Dual)
Output Current (Source) 0.29 A (typ)
Output Current (Sink) 0.6 A (typ)
Supply Voltage (Vcc) 10 V to 20 V
VBS UVLO (On/Off) 9 V / 8 V
VCC UVLO (On/Off) 8.9 V / 8.2 V
Turn-on Propagation Delay 160 ns (typ)
Turn-off Propagation Delay 150 ns (typ)
Delay Matching 50 ns
Isolation Type Functional level-shift JI
Logic Input Compatibility 3.3 V / 5 V / 15 V
dV/dt Immunity High (transient voltage tolerant)
Operating Temperature -40°C to +150°C (TJ)
Package SOIC-8N
Packaging Tape & Reel (2500 units/reel)

Features

  • Floating channel designed for bootstrap operation
  • Fully operational to +600 V offset voltage
  • Tolerant to negative transient voltage, dV/dt immune
  • Gate drive supply range from 10 V to 20 V
  • Undervoltage lockout for both VCC and VBS
  • 3.3 V, 5 V, and 15 V logic input compatible
  • Matched propagation delay for both channels (50 ns max)
  • Outputs in phase with inputs
  • High and low side outputs are independently controlled
  • Latch-immune CMOS construction for ruggedness

Applications

  • Motor control and motor drives
  • Switch-mode power supplies (SMPS)
  • Home appliances and white goods
  • Industrial robotics and automation
  • Power tools and battery-powered equipment
  • DC-DC converters and half-bridge topologies

The IRS2101STRPBF is a member of Infineon’s EiceDRIVER™ family of high-voltage gate driver ICs. This 600V high-side and low-side gate driver is designed to drive both MOSFETs and IGBTs in half-bridge configurations. Featuring independent high-side and low-side output channels, the device uses Infineon’s proprietary HVIC (High-Voltage Integrated Circuit) technology and latch-immune CMOS processes for robust monolithic construction. The floating high-side channel operates up to 600V offset voltage and is fully dV/dt tolerant, making it suitable for demanding switching applications. The logic input accepts signals down to 3.3V, providing compatibility with modern microcontrollers and DSPs. With matched propagation delays (50ns max) between channels and outputs in phase with inputs, the IRS2101 ensures precise timing control. Undervoltage lockout (UVLO) is provided for both the low-side supply (VCC) and the high-side bootstrap supply (VBS), preventing under-driven gate voltages. Available in a compact SOIC-8N package in tape and reel format, the IRS2101STRPBF is ideal for a wide range of applications including motor control, SMPS, home appliances, power tools, and industrial automation systems.

The IRS2101STRPBF operates as a half-bridge gate driver using high-voltage level-shift technology. Its functional architecture includes: 1) Input Logic Stage: Accepts CMOS/LSTTL compatible logic signals (down to 3.3V) and processes them through input buffers and Schmitt triggers for noise immunity. The two independent input channels (HIN and LIN) control the high-side and low-side outputs respectively. 2) High-Voltage Level Shifter: A proprietary HVIC junction-isolated (JI) level shifter translates the low-voltage control signals from the input logic to the floating high-side domain. This enables the high-side output to operate at up to 600V offset voltage while maintaining signal integrity. The level shifter is designed to be fully dV/dt immune and tolerant of negative transient voltages. 3) Output Driver Stages: Both high-side (HO) and low-side (LO) outputs feature high pulse current buffer stages optimized for minimum cross-conduction. The low-side source current is 290mA typical and sink current is 600mA typical, providing fast charging and discharging of MOSFET/IGBT gate capacitances. 4) Protection and Monitoring: Undervoltage lockout (UVLO) circuits monitor both VCC (low-side supply) and VBS (high-side bootstrap supply). If either supply drops below the UVLO threshold, the corresponding output is disabled to prevent under-driven gate conditions that could cause excessive power dissipation in the power devices.

Pin Name Type Function
1 VB Power High-side floating supply voltage (bootstrap)
2 HO Output High-side gate driver output
3 VS Power High-side floating supply return / half-bridge output
4 COM Ground Low-side return / ground
5 LO Output Low-side gate driver output
6 VCC Power Low-side and logic supply voltage (10-20V)
7 HIN Input High-side input logic signal
8 LIN Input Low-side input logic signal
  • AC induction motor and BLDC motor control circuits
  • Switch-mode power supplies (SMPS) and DC-DC converters
  • Home appliance motor drives (refrigerators, washing machines)
  • Industrial robotics and servo drives
  • Power tool motor controllers
  • Half-bridge and full-bridge power converters
  • Lighting ballasts and LED drivers
Manufacturer Part Number Package Notes
Infineon IRS2101SPBF SOIC-8 Tube packaging version
Infineon IRS2104STRPBF SOIC-8 With shutdown function
Texas Instruments IRS2104 SOIC-8 Equivalent half-bridge driver
STMicroelectronics L6384ED SOIC-8 600V half-bridge driver
Microchip MIC4124 SOIC-8 100V dual MOSFET driver
