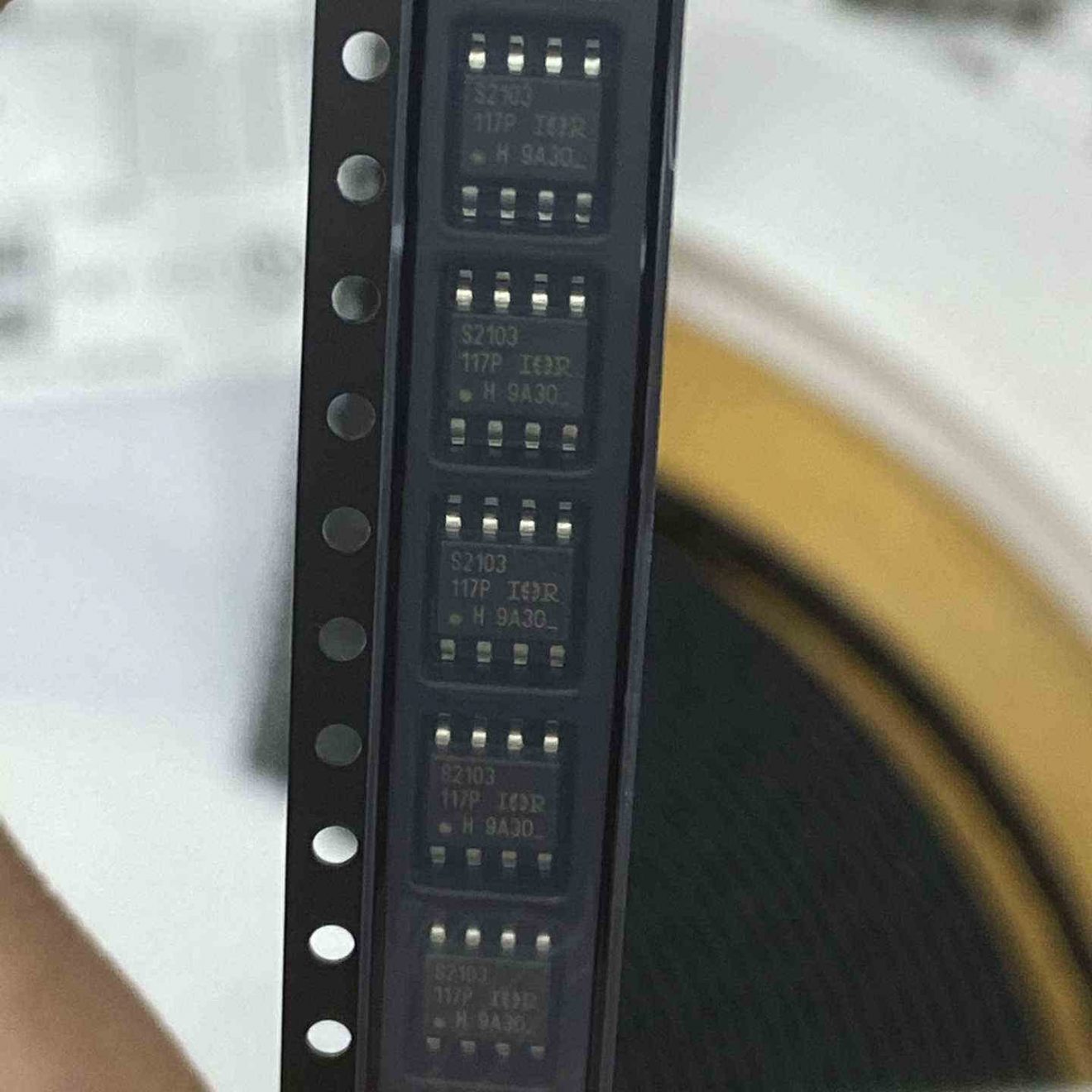

IRS2103STRPBF

600V half-bridge gate driver with dead time, 0.25A/0.5A, SOIC-8, single PWM input

6847

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

IRS2103STRPBF

Package：

SOIC-8N (4.9 x 3.9 x 1.5 mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

OC5A2B00

NCV887103D1R2G

NAE12S17-A

MIC4428YM

MIC2951-03BN

LTM4673Y

LTC3780IG

LTC3112EFE

Description

Product Overview

The IRS2103STRPBF is a 600V high-side and low-side gate driver IC from Infineon Technologies. Housed in a SOIC-8N package, this half-bridge driver features independent high and low side outputs with integrated dead-time generation. Based on Infineon’s proprietary HVIC technology, the IRS2103 provides robust operation with high noise immunity and dV/dt tolerance. The device accepts a single PWM input and generates complementary high-side and low-side gate drive signals with built-in dead time, eliminating the need for external dead-time generation circuitry. Undervoltage lockout protection is provided for both channels to ensure reliable operation under all supply conditions.

Key Specifications

Manufacturer Infineon Technologies
Product Type Half-Bridge Gate Driver with Dead Time
Voltage Rating 600 V
Configuration High + Low Side (Half-Bridge)
Number of Inputs 1 (PWM input with complementary outputs)
Output Current (Source) 0.25 A (typ)
Output Current (Sink) 0.5 A (typ)
Supply Voltage (Vcc) 10 V to 20 V
Dead Time Integrated (typ 500 ns)
UVLO Threshold (VCC) 8.2 V (falling) / 8.9 V (rising)
Propagation Delay (On) 600 ns (typ)
Propagation Delay (Off) 150 ns (typ)
Logic Input Level 3.3 V / 5 V compatible
dV/dt Immunity High
Operating Temperature -40°C to +125°C
Package SOIC-8N
Packaging Tape & Reel (2500 units/reel)

Features

  • Floating channel for bootstrap operation, fully operational to 600V
  • Single PWM input with complementary outputs and built-in dead time
  • dV/dt immune and tolerant to negative transient voltage
  • Gate drive supply voltage range: 10 V to 20 V
  • Undervoltage lockout (UVLO) protection
  • 3.3 V and 5 V logic input compatible
  • Matched propagation delay between channels
  • Latch-immune CMOS construction
  • RoHS compliant, lead-free package

Applications

  • Motor control drives and inverters
  • Switch-mode power supplies
  • DC-DC converters with half-bridge topology
  • Home appliances and white goods
  • Lighting ballasts
  • Industrial power supplies

The IRS2103STRPBF is a 600V half-bridge gate driver IC manufactured by Infineon Technologies. Designed for applications requiring simple half-bridge drive with minimal external components, the IRS2103 features a single PWM input that generates complementary high-side and low-side output signals with integrated dead-time generation. This eliminates the need for external dead-time circuitry and simplifies system design. Built on Infineon’s proven HVIC technology platform, the device offers high dV/dt immunity and tolerance to negative transient voltages, ensuring reliable operation in demanding switching environments. The IRS2103 incorporates undervoltage lockout (UVLO) to prevent improper gate drive when supply voltages are too low. With its 3.3V/5V compatible logic input, the device interfaces easily with modern microcontrollers and DSPs. The SOIC-8N package provides a compact solution suitable for space-constrained designs. The IRS2103STRPBF is supplied in tape and reel packaging for automated assembly and is ideal for motor control, SMPS, lighting ballast, and industrial power conversion applications.

The IRS2103STRPBF operates as a half-bridge gate driver with integrated dead-time generation. Its core architecture includes: 1) Input Logic and Dead-Time Generator: A single PWM input (HIN/LIN shared or single input) feeds into a dead-time generation block that creates non-overlapping complementary signals for the high-side and low-side drivers. The built-in dead time (typically 500ns) ensures both output transistors never conduct simultaneously, preventing shoot-through faults. 2) High-Voltage Level Shifter: Using Infineon’s proprietary HVIC junction-isolated technology, the high-side control signal is level-shifted up to the floating high-side domain, which can operate at up to 600V offset. This level shifter is designed for high dV/dt immunity. 3) Gate Driver Output Stages: Both high-side (HO) and low-side (LO) outputs provide buffered gate drive current (0.25A source / 0.5A sink typical) to charge and discharge power MOSFET or IGBT gates quickly and efficiently. 4) Undervoltage Lockout (UVLO): UVLO circuits monitor both the low-side supply (VCC) and the high-side bootstrap supply (VBS). If either voltage drops below the UVLO threshold, the corresponding output is driven low to protect the power switches from under-driven gate conditions.

Pin Name Type Function
1 VB Power High-side floating supply (bootstrap connection)
2 HO Output High-side gate drive output
3 VS Power High-side floating supply return / switch node
4 SD/COM Input/GND Shutdown input / Low-side ground
5 LO Output Low-side gate drive output
6 VCC Power Low-side driver supply (10-20V)
7 IN Input PWM logic input
8 NC – No connect
  • Brushless DC (BLDC) motor drives and AC motor control
  • Half-bridge and full-bridge DC-DC converters
  • Switch-mode power supplies and power factor correction
  • Fluorescent and HID lighting ballasts
  • Home appliance motor control (compressors, fans)
  • Industrial inverters and UPS systems
Manufacturer Part Number Package Notes
Infineon IRS2101STRPBF SOIC-8 Dual input, no dead time
Infineon IRS2104STRPBF SOIC-8 With shutdown pin
STMicroelectronics L6384ED SOIC-8 600V half-bridge driver
Texas Instruments UCC27200A SOIC-8 120V boot strap driver
Microchip MIC4604 SOIC-8 30V dual MOSFET driver
