IRS2181STRPBF

600V high-speed half-bridge gate driver, 1.4A/1.8A peak, SOIC-8, 100ns delay

5267

Effective Inventory
Go to Inquiry

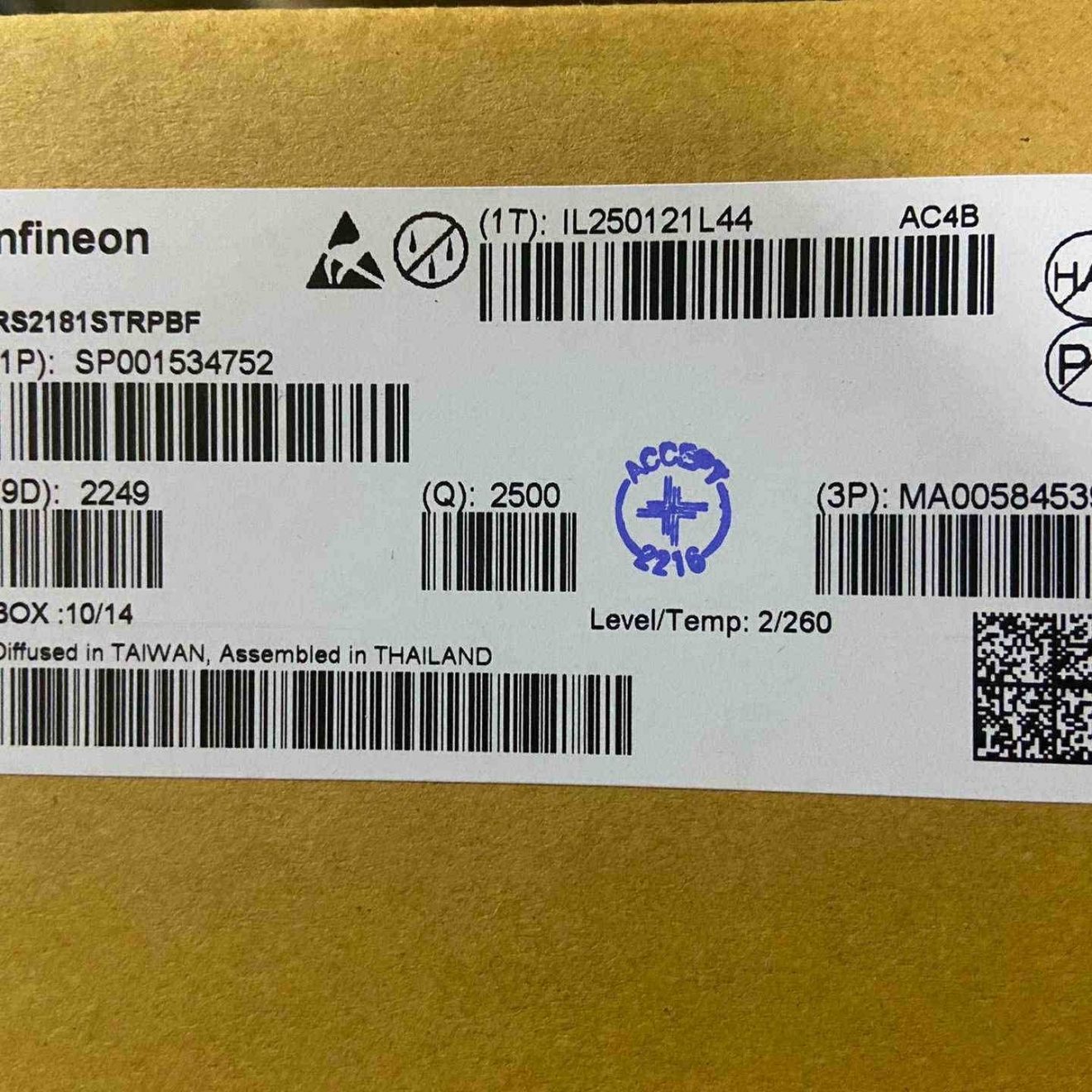

Image for reference only

Manufacturer Part：

IRS2181STRPBF

Package：

SOIC-8N (4.9 x 3.9 x 1.5 mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

OC5A2B00

NCV887103D1R2G

NAE12S17-A

MIC4428YM

MIC2951-03BN

LTM4673Y

LTC3780IG

LTC3112EFE

Description

Product Overview

The IRS2181STRPBF is a 600V high-speed, high-voltage half-bridge gate driver from Infineon Technologies. Packaged in an 8-pin SOIC-8N package, this device is part of Infineon’s EiceDRIVER™ family and provides independent high-side and low-side referenced output channels. The IRS2181 features a very fast propagation delay with matched delay between channels, making it suitable for high-frequency switching applications. Using Infineon’s proprietary HVIC technology and latch-immune CMOS construction, the driver operates reliably with high dV/dt immunity and tolerance to negative transient voltages on the VS pin. The device includes undervoltage lockout for both VCC and VBS supplies.

Key Specifications

Manufacturer Infineon Technologies
Product Type High-Speed Half-Bridge Gate Driver
Voltage Rating 600 V
Configuration High + Low Side (Half-Bridge)
Number of Channels 2 (Dual, independent)
Output Current (Source) 1.4 A (peak)
Output Current (Sink) 1.8 A (peak)
Supply Voltage (Vcc) 10 V to 20 V
UVLO Threshold 8.2 V (falling)
Propagation Delay (On/Off) 100 ns / 85 ns (typ)
Delay Matching 25 ns (max)
Rise/Fall Time 12 ns / 9 ns (typ)
Logic Input Compatibility 3.3 V / 5 V / 15 V
dV/dt Immunity ±50 V/ns
Operating Temperature -40°C to +125°C
Package SOIC-8N
Packaging Tape & Reel (2500 units/reel)

Features

  • High-speed operation with 100ns typical propagation delay
  • Floating channel design for bootstrap operation up to 600V
  • High dV/dt immunity (±50 V/ns)
  • Tolerant to negative transient voltage on VS pin
  • Gate drive supply range: 10 V to 20 V
  • Undervoltage lockout for both VCC and VBS
  • 3.3 V, 5 V, and 15 V logic input compatible
  • Matched propagation delay (25ns max between channels)
  • High peak output current: 1.4A source / 1.8A sink
  • Latch-immune CMOS construction

Applications

  • High-frequency switch-mode power supplies
  • Resonant converters and LLC resonant topologies
  • Motor control and servo drives
  • DC-DC converters
  • Welding equipment and plasma cutting
  • Class-D audio amplifiers
  • Industrial inverters

The IRS2181STRPBF is a high-speed, high-voltage half-bridge gate driver IC from Infineon Technologies’ EiceDRIVER™ product family. Designed for high-frequency switching applications, the IRS2181 combines very fast propagation delay (100ns typical) with high peak output current capability (1.4A source / 1.8A sink), enabling efficient driving of high-current MOSFETs and IGBTs at elevated switching frequencies. The device features independent high-side and low-side outputs with matched propagation delay (25ns max), ensuring precise timing control for synchronous rectification and resonant topologies. Built on Infineon’s robust HVIC technology platform with latch-immune CMOS construction, the IRS2181 offers excellent dV/dt immunity (±50V/ns) and tolerance to negative transient voltages on the VS pin, providing reliable operation in demanding switching environments. Undervoltage lockout is provided for both channels. The 3.3V/5V/15V compatible logic inputs allow direct interfacing with a wide range of controllers. Available in a space-saving SOIC-8N package in tape and reel format, the IRS2181STRPBF is ideal for high-frequency SMPS, resonant converters, motor drives, welding equipment, and other high-performance power conversion applications.

The IRS2181STRPBF operates as a high-speed half-bridge gate driver using advanced HVIC technology. Its functional blocks include: 1) Input Logic: Two independent CMOS/LSTTL-compatible input channels (HIN for high-side, LIN for low-side) accept logic signals down to 3.3V level. Input buffers with Schmitt-trigger characteristics provide noise immunity for reliable operation in electrically noisy environments. 2) High-Voltage Level Shifter: A proprietary high-voltage junction-isolated (JI) level shifter translates the HIN logic signal to the floating high-side domain. Designed for very fast operation and high dV/dt immunity (±50V/ns), the level shifter maintains signal integrity even during fast switching transients. The floating channel supports up to 600V offset voltage. 3) Gate Driver Output Stages: Both high-side (HO) and low-side (LO) outputs feature high-current buffer stages capable of delivering 1.4A source and 1.8A sink peak currents. These high drive currents enable fast charging and discharging of power device gate capacitances, resulting in very short rise and fall times (12ns/9ns typical) and low switching losses. 4) Protection Circuitry: Undervoltage lockout (UVLO) circuits continuously monitor both the low-side supply (VCC) and the high-side bootstrap supply (VBS). If either supply drops below the UVLO threshold (8.2V typical falling edge), the corresponding output is driven low to prevent under-driven gate conditions that could cause excessive conduction losses or device failure.

Pin Name Type Function
1 VB Power High-side floating supply (bootstrap connection)
2 HO Output High-side gate driver output
3 VS Power High-side floating return / half-bridge switch node
4 COM Ground Low-side return / common ground
5 LO Output Low-side gate driver output
6 VCC Power Low-side driver and logic supply (10-20V)
7 HIN Input High-side logic input
8 LIN Input Low-side logic input
  • High-frequency resonant converters (LLC, LC, LCC topologies)
  • High-density switch-mode power supplies (SMPS)
  • DC-DC converters with high switching frequencies
  • Welding power supplies and plasma cutting equipment
  • High-performance servo and stepper motor drives
  • Class-D audio power amplifiers
  • Photovoltaic inverters and solar micro-inverters
Manufacturer Part Number Package Notes
Infineon IRS2181SPBF SOIC-8 Tube packaging version
Infineon IRS2101STRPBF SOIC-8 Lower current version (0.29A/0.6A)
Texas Instruments UCC27211A SOIC-8 120V 4A high-speed driver
STMicroelectronics L6398D SOIC-8 High voltage half-bridge driver
Microchip MIC4127 SOIC-8 High-speed dual MOSFET driver
