LM117K

1.5A Adjustable Regulator, 1.25V-37V, TO-3 Metal Can Package

3105

Effective Inventory
Go to Inquiry

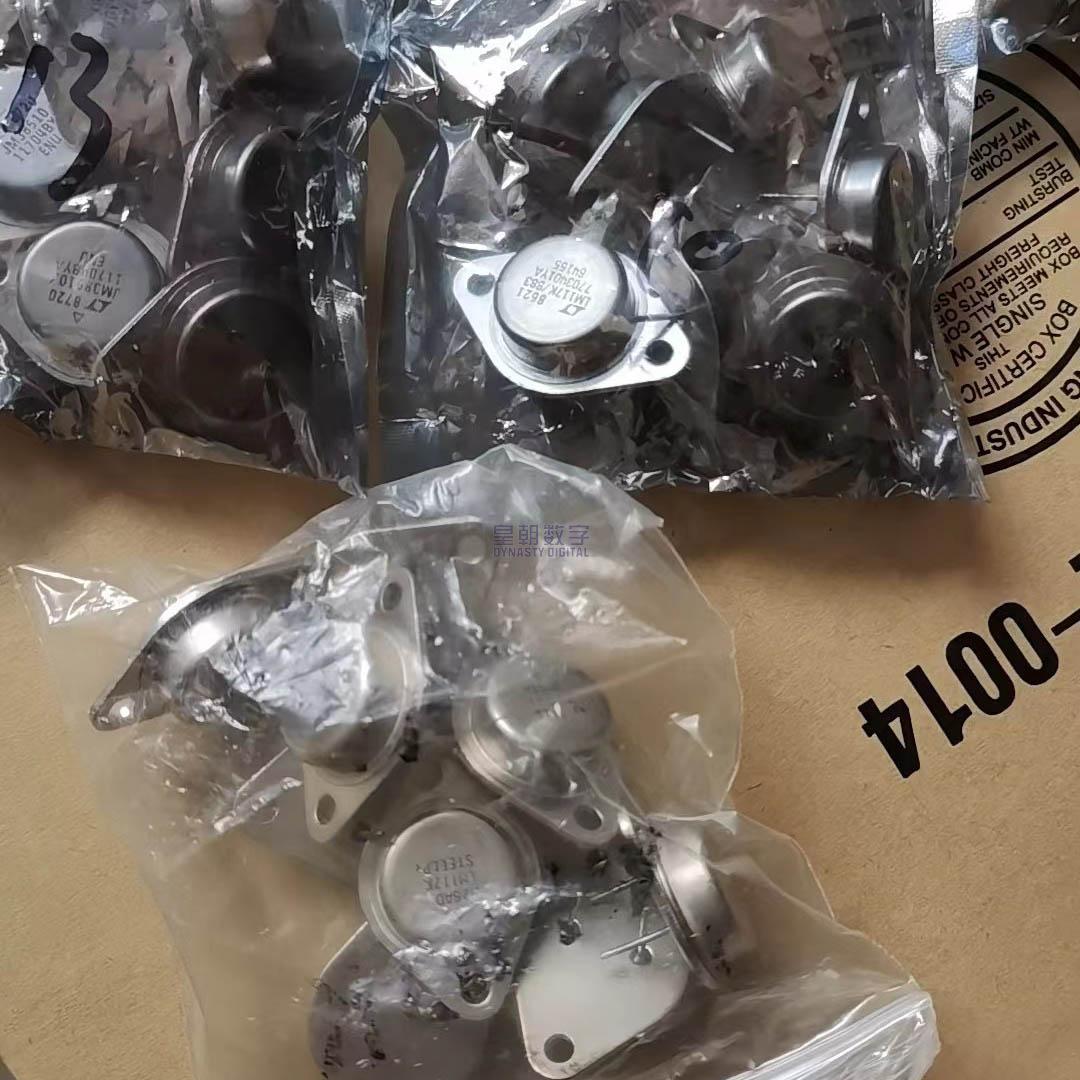

Image for reference only

Manufacturer Part：

LM117K

Package：

TO-3 (Metal Can), 28.7 x 10.92 mm

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

OC5A2B00

NCV887103D1R2G

NAE12S17-A

MIC4428YM

MIC2951-03BN

LTM4673Y

LTC3780IG

LTC3112EFE

Description

Product Overview

The LM117K is a 1.5A three-terminal adjustable voltage regulator in a rugged TO-3 metal can package. Manufactured by Texas Instruments, this military-grade device operates over a -55°C to +150°C temperature range and provides an adjustable output from 1.25V to 37V using only two external resistors. The LM117 represents the extended-temperature version of the industry-standard LM317, offering the same classic floating regulator architecture with internal current limiting, thermal shutdown, and safe-area compensation for maximum reliability in high-power and harsh-environment applications.

Key Specifications

Parameter Value
Manufacturer Texas Instruments
Part Number LM117K
Product Category Adjustable Linear Regulators
Output Type Adjustable
Output Voltage Range 1.25V to 37V
Output Current 1.5A
Input-Output Differential 1.2V min, 40V max
Line Regulation 0.01% typical
Load Regulation 0.1% typical
Reference Voltage 1.25V ±1%
Package / Case TO-3 (Metal Can)
Operating Temperature -55°C to +150°C

Features

  • Adjustable output from 1.25V to 37V with two resistors
  • 1.5A output current capability
  • Military temperature range: -55°C to +150°C
  • Internal current limiting with foldback
  • Thermal shutdown protection
  • Safe-area (SOA) compensation for pass transistor
  • Rugged TO-3 metal can package for high power dissipation
  • Standard 3-terminal pinout, easy drop-in replacement

Applications

  • Military and aerospace power systems
  • High-power adjustable bench power supplies
  • Industrial motor drives and controls
  • High-temperature environment equipment
  • High-reliability power conditioning systems

The LM117K is a high-reliability three-terminal adjustable voltage regulator supplied in a robust TO-3 metal can package. Manufactured by Texas Instruments, the LM117 is the military/extended temperature version of the world-famous LM317 regulator, rated for continuous operation from -55°C to +150°C.

Using the classic floating regulator architecture pioneered by National Semiconductor, the LM117 maintains a precise 1.25V reference voltage between its OUTPUT and ADJUST pins. With only two external resistors, users can set the output to any voltage between 1.25V and 37V. The device floats on top of the output voltage, making it insensitive to variations in input voltage relative to ground.

The TO-3 metal can package provides exceptional thermal conductivity and mechanical strength. The metal case is electrically connected to the input (collector of the pass transistor), enabling direct mounting to a heat sink for high-power dissipation. This package style is the standard for high-reliability military and industrial applications.

Comprehensive on-chip protection includes internal current limiting with foldback characteristics, thermal shutdown, and safe-operating-area (SOA) compensation. These features ensure the regulator survives and recovers from fault conditions such as output short circuits and thermal overload.

The LM117 employs a floating regulator architecture that differs from conventional ground-referenced regulators:

1. Floating Reference Principle: The regulator maintains a precise 1.25V bandgap reference between the OUTPUT and ADJUST pins. This voltage drives a constant current (1.25V/R1) through resistor R1, which then flows through R2 to ground, creating the output voltage: VOUT = 1.25V × (1 + R2/R1).

2. Error Amplifier: The error amplifier compares the 1.25V reference against the voltage across R1. It adjusts the base drive to the pass transistor to maintain this voltage precisely, regardless of input or load variations.

3. Darlington Pass Transistor: A Darlington-connected NPN pair provides the high current gain needed to drive 1.5A of output current while maintaining sufficient base drive from the error amplifier. The tradeoff is a higher dropout voltage (~1.2V to 2.5V depending on load).

4. Current Limiting: A foldback current limit circuit reduces the output current under short-circuit conditions, minimizing power dissipation in the pass transistor while still providing sufficient current for start-up.

5. Thermal Shutdown: When the die temperature reaches approximately 165°C, the thermal shutdown circuit disables the pass transistor. The device automatically restarts when it cools below the hysteresis threshold.

6. SOA Compensation: As the input-output voltage differential increases, the current limit threshold is reduced to keep the pass transistor operating within its safe operating area, preventing second breakdown failures.

Pin Name Type Description
Case INPUT Input Input voltage (collector of pass transistor). The TO-3 metal case is electrically connected to this pin. Maximum 40V input-output differential.
1 OUTPUT Output Regulated output voltage (emitter of pass transistor). Connect output capacitor and load here.
2 ADJUST Input Adjust pin. Connect bottom of resistor divider (R2) here. The ADJUST pin is nominally 1.25V below the OUTPUT pin.

Note: The metal case is at INPUT potential. Use an insulator when mounting to a grounded heat sink if INPUT is not at ground potential.

  • Military-grade power supply systems
  • Aerospace and avionics power conditioning
  • Industrial adjustable power supplies (0-30V, 0-36V)
  • Laboratory bench power supply designs
  • High-temperature downhole and drilling equipment
Manufacturer Part Number Package Notes
Texas Instruments LM317K TO-3 Commercial grade (0 to 125°C)
Texas Instruments LM138K TO-3 5A higher current version
Texas Instruments LM150K TO-3 3A medium current version
STMicroelectronics LM317K TO-3 Pin-compatible commercial alternative
ON Semiconductor LM317K TO-3 Direct substitute
Linear Tech LT1083CK TO-3 7.5A high-performance option
