LM22670MRX-ADJ

3A SIMPLE SWITCHER Buck Converter, 4.5V-42V In, Adjustable Out, PSOP-8

4878

Effective Inventory
Go to Inquiry

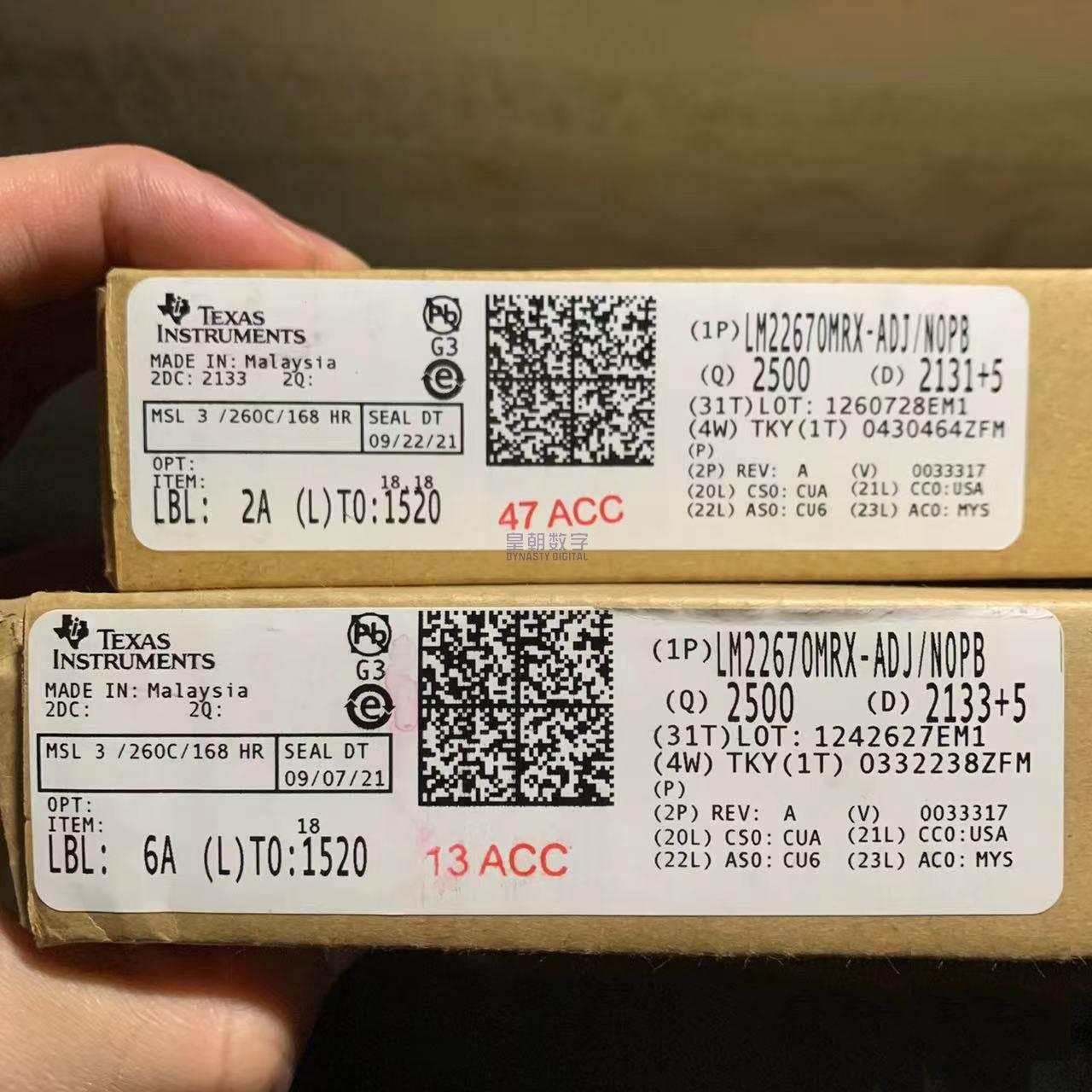

Image for reference only

Manufacturer Part：

LM22670MRX-ADJ

Package：

PSOP-8 (SO PowerPAD-8), 6.1 x 5.0 x 1.6 mm

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

OC5A2B00

NCV887103D1R2G

NAE12S17-A

MIC4428YM

MIC2951-03BN

LTM4673Y

LTC3780IG

LTC3112EFE

Description

Product Overview

The LM22670MRX-ADJ is a high-efficiency 3A step-down (buck) switching regulator from Texas Instruments SIMPLE SWITCHER family. Operating from a wide 4.5V to 42V input range, this device delivers an adjustable output from 1.285V to 37V using voltage-mode control with internal compensation, minimizing external component count. The 500kHz default switching frequency can be adjusted from 200kHz to 1MHz or synchronized to an external clock. Packaged in a thermally-enhanced PSOP-8 with exposed PowerPAD, the LM22670 offers exceptional thermal performance for high-density point-of-load conversions in industrial, telecom, and automotive applications.

Key Specifications

Parameter Value
Manufacturer Texas Instruments
Part Number LM22670MRX-ADJ
Product Category Step-Down DC-DC Converters
Topology Buck (Step-Down)
Input Voltage Range 4.5V to 42V
Output Voltage Range 1.285V to 37V
Output Current 3A continuous
Switching Frequency 500kHz default (200kHz-1MHz adj)
Switch On-Resistance 120 mΩ (N-MOSFET)
Control Mode Voltage mode, internal compensation
Package / Case PSOP-8 (SO PowerPAD-8)
Operating Temperature -40°C to +125°C

Features

  • Wide 4.5V to 42V input voltage range
  • 3A continuous output current with 120mΩ integrated N-MOSFET
  • Adjustable output from 1.285V up to 37V
  • 500kHz default frequency (adjustable 200kHz-1MHz)
  • External synchronization up to 1MHz
  • Internal compensation, no external compensation network needed
  • Integrated soft-start (500µs typical)
  • Precision enable pin for power sequencing and UVLO
  • Integrated bootstrap diode
  • Thermal shutdown and cycle-by-cycle current limit

Applications

  • Industrial control and automation systems
  • 24V industrial bus to 5V/3.3V point-of-load
  • Telecom 48V input down-conversion
  • FPGA, DSP, and ASIC core power supplies
  • Automotive infotainment and body electronics

The LM22670MRX-ADJ is a high-performance 3A step-down DC-DC converter from Texas Instruments renowned SIMPLE SWITCHER product family. Designed for maximum ease-of-use without sacrificing performance, this regulator integrates a 120mΩ N-channel MOSFET, internal compensation, and bootstrap diode into a single package.

With an input voltage range spanning 4.5V to 42V, the LM22670 is extremely versatile, supporting everything from 5V logic supplies to 24V industrial bus and 36V telecom applications. The adjustable output version can be set to any voltage from 1.285V (the internal reference) up to approximately 37V, limited only by the duty cycle and input-output differential.

The device uses voltage-mode control with Type III internal compensation, eliminating the need for designers to calculate and optimize compensation networks. A dedicated RT/SYNC pin allows the switching frequency to be adjusted from 200kHz to 1MHz via a single resistor, or synchronized to an external clock for EMI management in noise-sensitive systems.

Packaged in a thermally-optimized PSOP-8 (SO PowerPAD-8), the LM22670 leverages an exposed die attach pad to conduct heat directly to the PCB copper plane. This enables reliable 3A operation in ambient temperatures up to 85°C with appropriate PCB design.

The LM22670 is a voltage-mode controlled buck converter operating as follows:

1. Control Architecture: The device employs voltage-mode PWM control. The error amplifier compares the feedback voltage (from an external resistor divider on the FB pin) against the internal 1.285V bandgap reference. The error output drives a PWM comparator that generates the switch timing signal.

2. Switching Cycle (On-Time): When the high-side N-MOSFET is turned on, current flows from VIN through the inductor to the output capacitor and load. The inductor current ramps up linearly at a rate of di/dt = (VIN – VOUT)/L, storing energy in the inductor magnetic field.

3. Switching Cycle (Off-Time): When the PWM cycle ends, the high-side MOSFET turns off. The inductor resists current change, so the current continues to flow, now circulating through the external freewheeling Schottky diode. The inductor current ramps down at di/dt = -VOUT/L while delivering energy to the output.

4. Output Filtering: The output capacitor filters the inductor current ripple, providing a smooth DC output voltage. The capacitor handles the AC ripple current while the inductor provides the DC load current.

5. Oscillator and Frequency Control: An internal oscillator sets the default 500kHz switching frequency. A resistor from the RT/SYNC pin to ground programs the frequency up to 1MHz, or an external clock can be applied to synchronize the regulator.

6. Protection Features: Cycle-by-cycle current limit, input undervoltage lockout (UVLO), thermal shutdown, and precision enable for controlled power sequencing.

Pin Name Type Description
1 BOOT Input Bootstrap capacitor input. Provides gate drive voltage above VIN for high-side N-MOSFET. Connect 0.01µF ceramic capacitor from BOOT to SW.
2 NC — No internal connection. Used for thermal conduction through lead frame.
3 RT/SYNC I/O Frequency programming or synchronization pin. Resistor to GND sets frequency (500kHz default if floating). Accepts external clock for sync.
4 FB Input Feedback input to error amplifier. Connect resistor divider from VOUT to FB to GND. Regulation point = 1.285V.
5 EN Input Precision enable input. Pull below 1.22V to disable. Pull above 1.25V to enable. Can be used for UVLO programming via resistor divider.
6 GND Ground Signal and power ground. Provide robust copper connection to ground plane.
7 VIN Power Input Power input supply (4.5V to 42V). Bypass with low-ESR ceramic capacitor placed close to pin.
8 SW Output Switch node. Connects to internal MOSFET source. Connect external Schottky diode cathode and inductor here.
Pad DAP Thermal Exposed die attach pad. Connect to GND plane with multiple thermal vias.
  • 24V/12V industrial bus to 5V/3.3V point-of-load conversion
  • Telecom 48V distribution to intermediate bus voltages
  • FPGA, DSP, and microprocessor core/IO power supplies
  • Automotive 12V pre-regulation for infotainment systems
  • Distributed power architectures and intermediate bus converters
Manufacturer Part Number Package Notes
TI LM22670MRX-5.0 PSOP-8 Fixed 5V output version
TI LM22671MRX-ADJ PSOP-8 1A lower current version
TI LM22672MRX-ADJ PSOP-8 2A medium current version
TI LMZ14203 TO-PMOD 3A module with integrated inductor
MPS MP2307 SOIC-8 3A 23V input alternative
Allegro AP63203 SOIC-8 3A synchronous buck option
