LM2674MX-ADJ

500mA SIMPLE SWITCHER Buck, 4.5V-40V In, Adjustable Out, SOIC-8

8295

Effective Inventory
Go to Inquiry

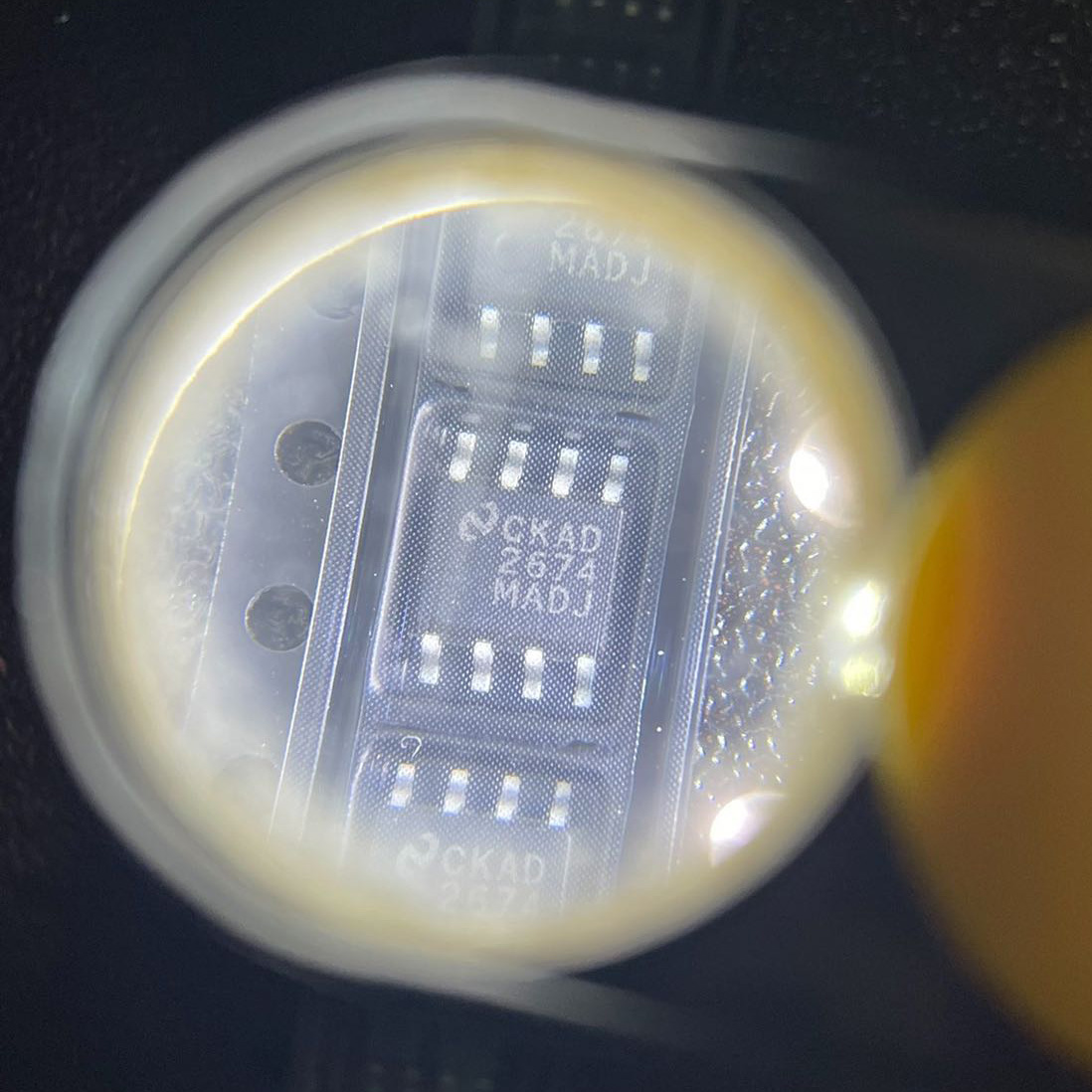

Image for reference only

Manufacturer Part：

LM2674MX-ADJ

Package：

SOIC-8, 4.9 x 3.9 x 1.5 mm

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

OC5A2B00

NCV887103D1R2G

NAE12S17-A

MIC4428YM

MIC2951-03BN

LTM4673Y

LTC3780IG

LTC3112EFE

Description

Product Overview

The LM2674MX-ADJ is a high-efficiency 500mA step-down voltage regulator from Texas Instruments SIMPLE SWITCHER family, featuring an adjustable output voltage in a compact SOIC-8 package. Operating from a wide 4.5V to 40V input range, this device delivers up to 500mA of output current with efficiencies up to 90%. The 260kHz default switching frequency allows use of small surface-mount inductors and capacitors. With internal compensation and minimal external components required, the LM2674 simplifies point-of-load power supply design for low-power industrial, consumer, and telecom applications.

Key Specifications

Parameter Value
Manufacturer Texas Instruments
Part Number LM2674MX-ADJ
Product Category Step-Down DC-DC Converters
Topology Buck (Step-Down)
Input Voltage Range 4.5V to 40V
Output Voltage Range 1.21V to 37V (adjustable)
Output Current 500mA
Switching Frequency 260kHz default
Control Mode Voltage mode, internal compensation
Efficiency Up to 90%
Package / Case SOIC-8
Operating Temperature -40°C to +125°C

Features

  • Wide 4.5V to 40V input voltage range
  • 500mA guaranteed output current
  • Adjustable output from 1.21V to 37V
  • 260kHz switching frequency (fixed)
  • Internal compensation, minimal external components
  • High efficiency: up to 90%
  • Thermal shutdown and current limit protection
  • Standard SOIC-8 surface-mount package
  • Available in fixed output versions (3.3V, 5V, 12V)
  • WEBENCH design tool support

Applications

  • Low-power point-of-load regulation
  • 5V and 12V bus down-conversion
  • Battery-powered equipment
  • Industrial sensors and transducers
  • Consumer electronics and set-top boxes

The LM2674MX-ADJ is a high-efficiency 500mA step-down switching voltage regulator from Texas Instruments SIMPLE SWITCHER family. Designed for simplicity and ease of use, this device integrates the power switch, oscillator, control loop, and protection features into a single SOIC-8 package, requiring only an inductor, capacitor, and diode for a complete switching power supply.

The wide 4.5V to 40V input range makes the LM2674 suitable for diverse applications, from 5V logic supplies to 24V industrial systems and 36V telecom equipment. The adjustable output version can be set to any voltage from 1.21V (the internal reference) up to approximately 37V, depending on input-output differential requirements.

The device uses voltage-mode control with Type II internal compensation, eliminating the need for external compensation components. The 260kHz switching frequency provides a good balance between component size and efficiency, allowing the use of compact surface-mount inductors.

Packaged in a standard SOIC-8, the LM2674 is easy to assemble on standard PCB assembly lines. The device includes comprehensive protection features such as cycle-by-cycle current limiting, thermal shutdown, and input undervoltage lockout.

The LM2674 is a voltage-mode controlled buck regulator that operates as follows:

1. Reference and Error Amplifier: An internal 1.21V bandgap reference provides a stable voltage reference. The error amplifier compares the feedback voltage (from external resistor divider) against this reference and generates an error signal proportional to the difference.

2. PWM Generation: The error signal is fed to a PWM comparator, where it is compared against a sawtooth waveform generated by the internal oscillator. The comparator output controls the duty cycle of the power switch.

3. Power Switching (On-Time): When the PWM signal turns on the internal N-channel MOSFET, current flows from VIN through the inductor to the output. The inductor current ramps up linearly, storing energy in its magnetic field. The output capacitor filters the ripple.

4. Freewheeling (Off-Time): When the switch turns off, the inductor current continues to flow through the external Schottky diode (freewheeling action), delivering stored energy to the load. The inductor current ramps down during this phase.

5. Control Loop: If the output voltage drops (e.g., due to increased load), the error signal increases, increasing the duty cycle to deliver more energy and restore the output voltage to regulation. The opposite occurs if the output rises.

6. Protection: Cycle-by-cycle current limit protects the switch and inductor. Thermal shutdown prevents overheating. Input UVLO ensures clean start-up.

Pin Name Type Description
1 VIN Power Input Input voltage supply (4.5V to 40V). Bypass with low-ESR ceramic capacitor to GND, placed close to the pin.
2 FB Input Feedback input. Connect resistor divider from VOUT to FB to GND. Regulation point = 1.21V.
3 GND Ground Signal and power ground. Provide robust connection to ground plane.
4 ON/Off Input Shutdown control. Pull LOW (2V) to shut down.
5 GND Ground Additional ground pin for thermal and current return.
6 OUTPUT Output Switch node output. Connects to internal MOSFET. Connect external Schottky diode cathode and inductor here.
7 OUTPUT Output Second switch node pin. Connected internally to Pin 6. Both pins connected externally for better current handling.
8 VIN Power Input Second VIN pin. Connected internally to Pin 1. Both VIN pins connected together on PCB.
  • 5V/12V bus to 3.3V point-of-load regulation
  • Industrial sensor and transducer power supplies
  • Battery-powered portable equipment and IoT devices
  • Set-top boxes and consumer electronics
  • Distributed low-power auxiliary supplies
Manufacturer Part Number Package Notes
TI LM2674MX-5.0 SOIC-8 Fixed 5V output version
TI LM2674MX-3.3 SOIC-8 Fixed 3.3V output version
TI LM2594-ADJ SOIC-8 500mA 150kHz alternative
TI LM2675M-ADJ SOIC-8 1A higher current version
MPS MP1482 SOIC-8 2A 18V synchronous alternative
Monolithic Power MP2359 SOT23-6 1.2A compact alternative
