LTC2955CTS8-1

Pushbutton On/Off Controller, 2.7V-28V, USB Power-Up, TSOT-23-8

12358

Effective Inventory
Go to Inquiry

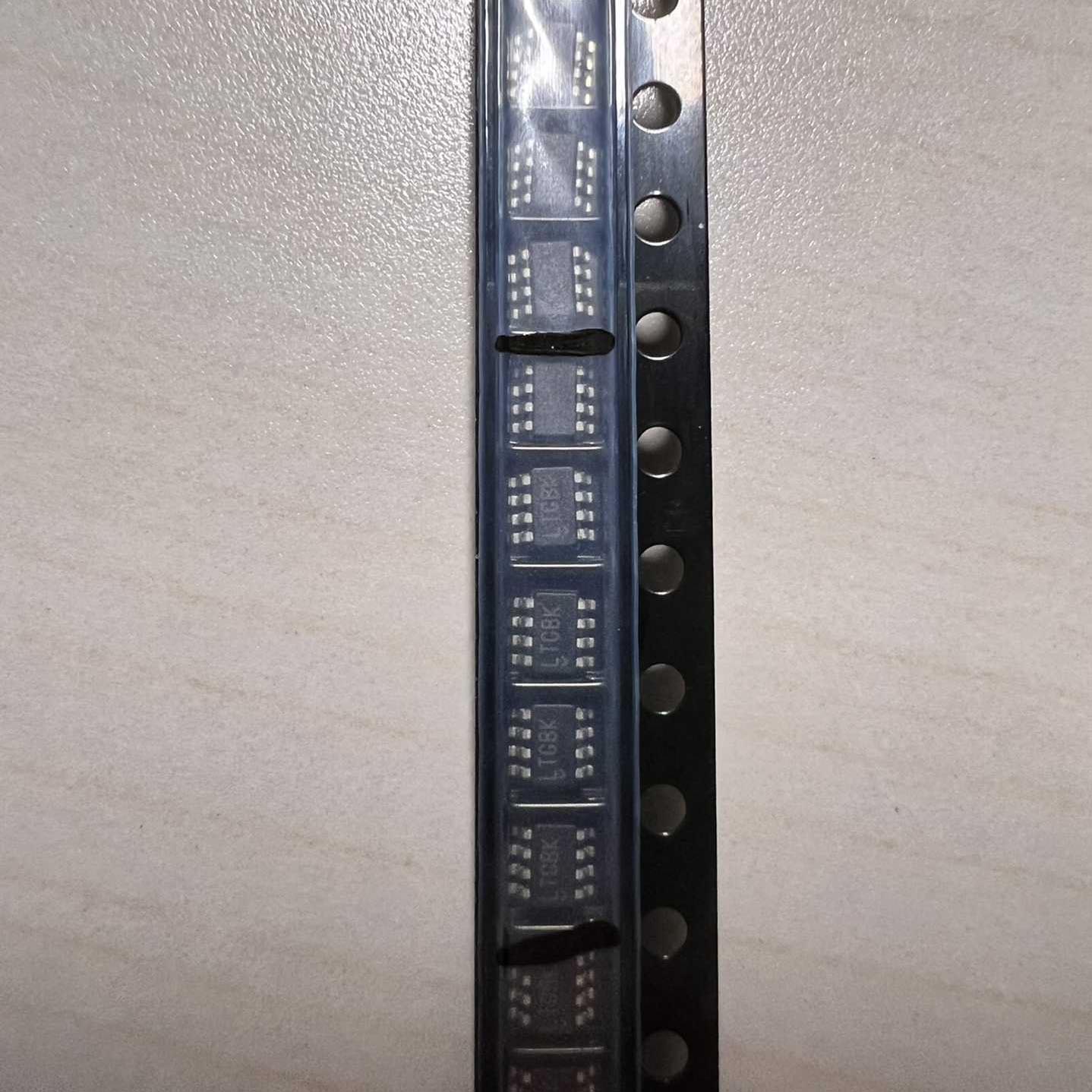

Image for reference only

Manufacturer Part：

LTC2955CTS8-1

Package：

TSOT-23-8, 2.9 x 1.6 x 0.8 mm

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

OC5A2B00

NCV887103D1R2G

NAE12S17-A

MIC4428YM

MIC2951-03BN

LTM4673Y

LTC3780IG

LTC3112EFE

Description

Product Overview

The LTC2955CTS8-1 is a pushbutton on/off controller from Analog Devices, designed to provide robust power management for portable and battery-powered systems. Operating from 2.7V to 28V, this device features automatic power-up when a USB cable is inserted, in addition to standard pushbutton on/off control. With only 9µA quiescent current and ESD-protected pushbutton input (±8kV), the LTC2955 ensures reliable operation in harsh environments. The TSOT-23-8 package provides a compact solution for power button control in consumer electronics, medical devices, industrial controls, and USB-powered equipment.

Key Specifications

Parameter Value
Manufacturer Analog Devices
Part Number LTC2955CTS8-1
Product Category Pushbutton Power Controllers
Input Voltage Range 2.7V to 28V
Quiescent Current 9µA typical
Pushbutton Input Debounced, ±8kV ESD protected
USB Detection Automatic power-up on USB insertion
Turn-On Time Adjustable via capacitor
Turn-Off Time Adjustable via capacitor
Power Good Output Open-drain PGD pin
Package / Case TSOT-23-8
Operating Temperature -40°C to +125°C

Features

  • Pushbutton on/off power control
  • Automatic power-up from USB cable insertion
  • Wide 2.7V to 28V input voltage range
  • Debounced pushbutton input
  • Adjustable turn-on and turn-off timing
  • Power good (PGD) open-drain output flag
  • Low quiescent current: 9µA typical
  • ESD protected pushbutton input (±8kV HBM)
  • Compact TSOT-23-8 package
  • Wake-up from USB insertion without pushbutton press

Applications

  • Portable and battery-powered equipment
  • USB-powered devices and accessories
  • Industrial control systems and instruments
  • Medical devices and handheld instruments
  • Consumer electronics and wearables

The LTC2955CTS8-1 is a pushbutton on/off power controller from Analog Devices, designed to provide robust, reliable power management for battery-powered and USB-powered systems. This device simplifies pushbutton power control by handling all the debouncing, timing, and power sequencing logic in a single compact package.

A key feature of the LTC2955 is its USB automatic power-up capability. When a USB cable is inserted, the device automatically powers up the system without requiring a pushbutton press. This is ideal for USB-powered devices that need to turn on automatically when connected to a host or charger. The USB detection works with both USB data lines (D+/D-) and VBUS, providing reliable detection across different USB implementations.

The pushbutton input is fully debounced and ESD protected to ±8kV HBM, ensuring robust operation in real-world environments where ESD events are common. The turn-on and turn-off timing are independently adjustable using external capacitors, allowing designers to tailor the response to specific application requirements.

The LTC2955 consumes only 9µA of quiescent current, making it suitable for battery-powered devices where standby current is critical. The TSOT-23-8 package provides a compact 8-pin solution that fits easily into space-constrained designs. An open-drain power good (PGD) output signals when the output power is stable and within regulation.

The LTC2955 operates as a pushbutton power controller with the following functional blocks:

1. Power-On State Machine: The device starts in the OFF state. When a valid turn-on trigger is detected (either pushbutton press or USB insertion), the internal state machine transitions to the ON state. The EN pin (enable output) goes high, enabling the main power supply.

2. Pushbutton Debounce: The pushbutton input includes integrated debounce circuitry that filters out mechanical switch bounce and noise. A valid press is only recognized after the input has been stable for the debounce period, preventing false triggers from switch chatter or electromagnetic interference.

3. USB Detection: The USB detection block monitors for USB cable insertion. When a USB cable is connected, the device detects the presence of VBUS or activity on the D+/D- lines and automatically initiates a power-up sequence. This feature is essential for devices that need to wake up when plugged into a USB port.

4. Timing Control: External capacitors connected to the ONT (on-timer) and OFFT (off-timer) pins set the turn-on and turn-off delay times. Longer press times can be programmed to prevent accidental turn-on/off. The typical turn-on debounce is 32ms and turn-off hold time is adjustable from milliseconds to seconds.

5. EN Output: The EN pin is an active-high output that drives the enable pin of the main DC-DC converter or LDO. When the system is on, EN is high; when off, EN is low (pulled to GND).

6. Power Good (PGD): The PGD pin is an open-drain output that indicates when the output voltage is within regulation (power good). This can be used to enable downstream circuits or signal a microprocessor that power is stable.

7. ESD Protection: The pushbutton input includes built-in ESD protection to ±8kV HBM, protecting the device from electrostatic discharge events that commonly occur at user-accessible buttons.

Pin Name Type Description
1 PB Input Pushbutton input. Connect to pushbutton switch to GND. Internal pull-up to VCC. Debounced input with ±8kV ESD protection.
2 ONT I/O On-timer pin. Connect capacitor to GND to set turn-on debounce/delay time.
3 OFFT I/O Off-timer pin. Connect capacitor to GND to set turn-off hold time.
4 GND Ground Ground reference pin.
5 PGD Output Power-good open-drain output. Pulled low when output voltage is below power-good threshold. Requires external pull-up resistor.
6 EN Output Enable output. Active high. Drives the enable pin of the main power supply (DC-DC or LDO). High = ON, Low = OFF.
7 USB Input USB detect input. Connect to USB VBUS or D+/D- line. Rising edge triggers automatic power-up.
8 VCC Power Input Supply voltage input (2.7V to 28V). Bypass with 1µF ceramic capacitor to GND.
  • Battery-powered portable instruments and handheld devices
  • USB accessories that auto-power on when plugged in
  • Medical devices with power button and USB connectivity
  • Industrial control panels with front-panel power buttons
  • Wearable electronics and IoT sensor nodes
Manufacturer Part Number Package Notes
Analog Devices LTC2955CDDB-1 DFN-12 Same function in DFN-12 package
Analog Devices LTC2950 TSOT-23 Simpler version, no USB detect
Analog Devices LTC2952 QFN-24 Pushbutton controller with I²C
Texas Instruments TPS22965 QFN Load switch with pushbutton control
Microchip MCP120 SOT-23 Pushbutton power manager
Maxim MAX16054 SOT-23 Pushbutton on/off controller
