LTC3780IG

Synchronous 4-Switch Buck-Boost Controller, 4V-36V In, 98% Eff, SSOP-28

11885

Effective Inventory
Go to Inquiry

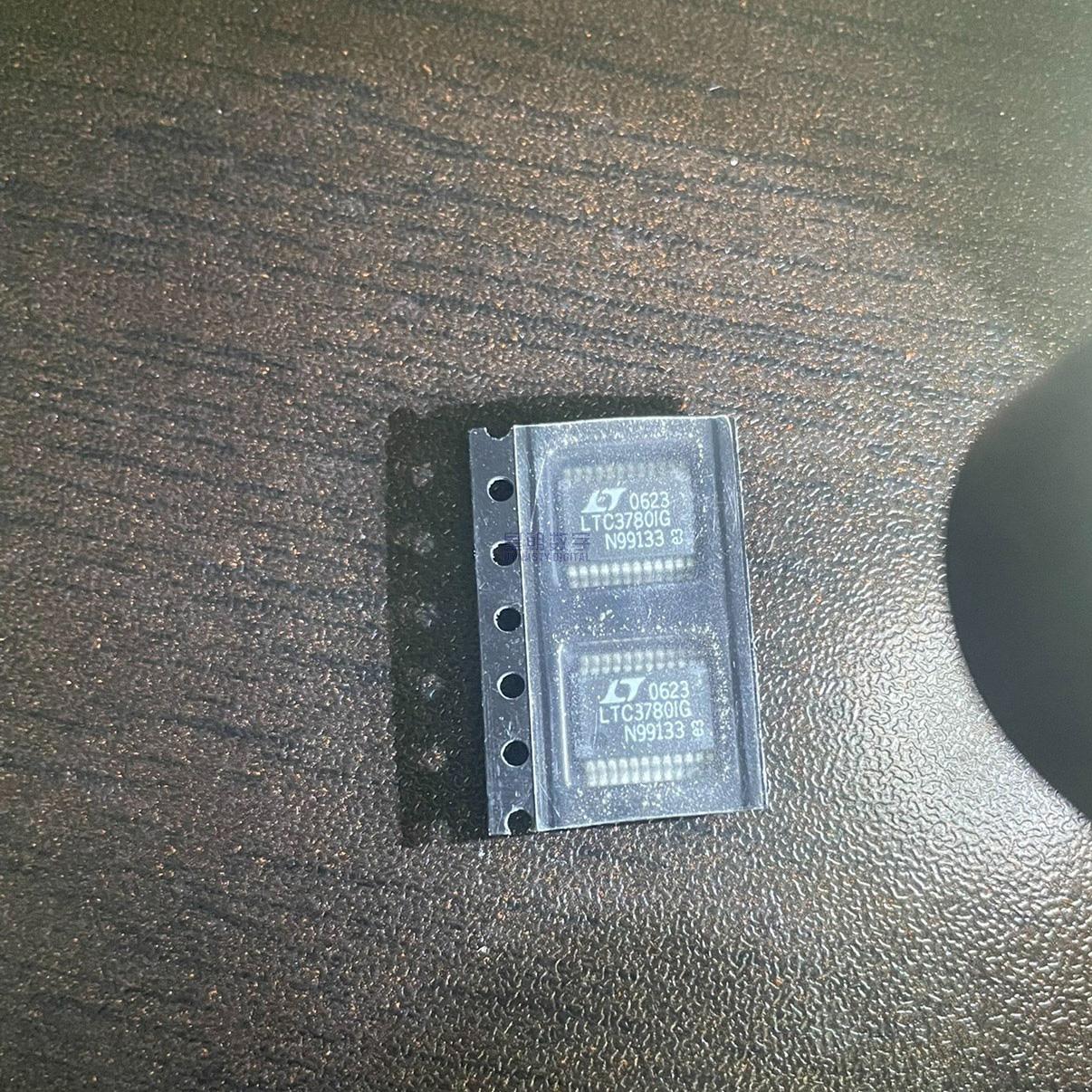

Image for reference only

Manufacturer Part：

LTC3780IG

Package：

SSOP-28, 10.2 x 5.3 x 1.95 mm

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

OC5A2B00

NCV887103D1R2G

NAE12S17-A

MIC4428YM

MIC2951-03BN

LTM4673Y

LTC3112EFE

LTC2955CTS8-1

Description

Product Overview

The LTC3780IG is a high-efficiency synchronous four-switch buck-boost switching regulator controller from Analog Devices. Operating from a 4V to 36V input with a 0.8V to 34V output range, this device delivers seamless transitions between buck, boost, and buck-boost modes using a single inductor. Constant frequency current-mode control with programmable 200kHz-400kHz switching frequency and phase-lockable capability provides predictable operation and easy EMI management. With synchronous rectification achieving up to 98% efficiency, the LTC3780 is ideal for high-power automotive, industrial, and telecom applications where the input voltage varies above and below the output voltage.

Key Specifications

Parameter Value
Manufacturer Analog Devices
Part Number LTC3780IG
Product Category Synchronous Buck-Boost Controllers
Topology 4-Switch Buck-Boost Controller (external MOSFETs)
Input Voltage Range 4V to 36V
Output Voltage Range 0.8V to 34V (adjustable)
Output Current Up to 10A+ (depends on external MOSFETs)
Switching Frequency 200kHz to 400kHz (programmable)
Control Mode Current mode, constant frequency
Peak Efficiency Up to 98% (synchronous rectification)
Package / Case SSOP-28
Operating Temperature -40°C to +125°C

Features

  • Wide 4V to 36V input voltage range
  • Wide 0.8V to 34V output voltage range
  • Single inductor architecture (four switches)
  • Synchronous rectification: up to 98% efficiency
  • Constant frequency current mode control
  • Programmable switching frequency: 200kHz to 400kHz
  • Phase-lockable frequency (external sync)
  • Power good (PGOOD) output flag
  • Output overvoltage protection
  • Programmable soft-start
  • Thermal shutdown protection
  • SSOP-28 package

Applications

  • Automotive and industrial power supplies
  • Battery-powered equipment and UPS systems
  • Distributed power systems and intermediate buses
  • Telecom power supplies (24V/48V)
  • High-power LED drivers
  • 12V to 12V battery backup and regulation

The LTC3780IG is a high-performance synchronous four-switch buck-boost controller from Analog Devices. This controller drives external N-channel MOSFETs to form a complete buck-boost power supply that can operate from input voltages above, below, or equal to the output voltage. This makes it suitable for applications where the input varies significantly, such as automotive systems with cold-crank and load-dump conditions, battery backup systems, and telecom 24V/48V infrastructure.

Using a single inductor four-switch topology, the LTC3780 provides seamless transitions between buck mode (VIN > VOUT), boost mode (VIN < VOUT), and buck-boost mode (VIN ≈ VOUT). The controller uses current-mode control with constant frequency operation, providing excellent line and load transient response as well as easy input filter design for EMI compliance. Synchronous rectification (all four switches are MOSFETs, no diodes) achieves very high efficiency — up to 98% — by eliminating the forward voltage drop of Schottky diodes. The switching frequency is programmable from 200kHz to 400kHz via a single resistor, and can be synchronized to an external clock for multi-phase operation or noise-sensitive applications. Key features include a power good output, output overvoltage protection, programmable soft-start, and thermal shutdown. The SSOP-28 package provides a compact solution with standard pin spacing for easy PCB layout. The LTC3780 is available in industrial (-40°C to +125°C) and commercial grades.

The LTC3780 is a four-switch buck-boost controller with current-mode control:

1. Four-Switch Topology: The controller drives four external N-channel MOSFETs arranged around a single inductor. Switches A (top-left) and D (bottom-left) form the input-side pair, while switches B (top-right) and C (bottom-right) form the output-side pair. The inductor is connected between the two switch nodes (SW1 and SW2).

2. Buck Mode Operation: When VIN > VOUT, the converter operates in buck mode. Switch A is always on, switch D is always off. Switches B and C alternate like a standard buck converter, stepping down the input voltage. The current through the inductor flows from left to right.

3. Boost Mode Operation: When VIN < VOUT, the converter operates in boost mode. Switch B is always on, switch C is always off. Switches A and D alternate like a standard boost converter, stepping up the input voltage. Inductor current still flows left to right. 4. Buck-Boost Mode Transition: When VIN is close to VOUT, the controller enters buck-boost mode where all four switches operate in a carefully timed sequence. This provides seamless transition through the VIN = VOUT point without output voltage glitches or excessive ripple. 5. Current-Mode Control: The LTC3780 uses peak current-mode control. The error amplifier sets a target peak inductor current. The current sense comparator terminates each switching cycle when the inductor current reaches this threshold. This provides inherent cycle-by-cycle current limiting and good line transient response. 6. Frequency and Synchronization: An internal oscillator sets the switching frequency, programmable from 200kHz to 400kHz with an external resistor. The PLLIN pin allows synchronization to an external clock, enabling multiple converters to operate at the same frequency (reducing beat frequencies) or to be phase-shifted for interleaved multi-phase operation. 7. Protection Features: Output overvoltage protection (OVP) clamps the output if it exceeds the regulation level by more than 10%. Current limit protects the MOSFETs and inductor from overcurrent. Thermal shutdown disables the controller at excessive junction temperatures. Soft-start gradually ramps the output voltage to limit inrush current.

Pin Name Type Description
1 RUN/SS I/O Run / soft-start. Pull above 1.5V to enable. Capacitor to GND programs soft-start time.
2 FB Input Feedback input. Connect resistor divider from VOUT to FB to GND. Regulation point = 0.8V.
3 ITH Comp Current threshold / loop compensation. Connect RC network to GND for compensation of the current-mode control loop.
4 PLLIN/MODE Input PLL synchronization input / mode select. External clock for sync, or tie to GND/VCC for mode selection.
5 RT Input Frequency programming. Resistor to GND sets oscillator frequency (200kHz to 400kHz).
6 PLLFLTR Comp PLL filter pin. Connect RC network to GND for PLL loop filter when using synchronization.
7 PGOOD Output Power-good open-drain output. Pulled low when VOUT is out of regulation by more than ±7.5%.
8 EXTVCC Input External VCC supply. Connect to VOUT if VOUT > 5V to power the IC from the output for higher efficiency.
9 INTVCC Output Internal 5V regulator output. Bypass with 1µF ceramic capacitor to GND.
10 VIN Power Input Main input voltage supply (4V to 36V). Bypass with ceramic capacitor to GND.
11 BG1 Output Bottom gate drive 1 (input side low-side MOSFET gate). Connect to gate of switch D.
12 TG1 Output Top gate drive 1 (input side high-side MOSFET gate). Connect to gate of switch A via bootstrap circuit.
13 SW1 I/O Switch node 1 (input side). Connect to source of switch A, drain of switch D, and one end of inductor.
14 SENSE+ Input Current sense positive input. Connect to VIN side of sense resistor.
15 SENSE- Input Current sense negative input. Connect to SW1 side of sense resistor.
16 SGND Ground Signal ground. Low-current reference ground for control circuitry.
17 PGND Ground Power ground. High-current ground return for gate drivers.
18 BG2 Output Bottom gate drive 2 (output side low-side MOSFET gate). Connect to gate of switch C.
19 TG2 Output Top gate drive 2 (output side high-side MOSFET gate). Connect to gate of switch B via bootstrap circuit.
20 SW2 I/O Switch node 2 (output side). Connect to source of switch B, drain of switch C, and other end of inductor.
21 VOUT Output Output voltage sense. Connect to output rail for overvoltage protection and EXTVCC detection.
22-28 N/C or GND — Additional pins — refer to datasheet for exact pinout (SSOP-28).
  • Automotive 12V systems with cold-crank and load-dump
  • Industrial 24V to 12V/5V/3.3V high-current supplies
  • Telecom 48V to 24V/12V intermediate bus converters
  • UPS and battery backup systems (charge/discharge regulation)
  • High-power constant current LED drivers
  • Solar MPPT battery charging systems
Manufacturer Part Number Package Notes
Analog Devices LTC3112 TSSOP-20 Integrated 2.5A buck-boost (lower power)
Analog Devices LTC3789 QFN-32 High efficiency synchronous buck-boost
Analog Devices LTC3729 SSOP-28 Dual phase buck-boost controller
Texas Instruments LM5175 QFN-28 4-switch buck-boost controller
Texas Instruments LM5176 HTSSOP-28 55V buck-boost controller
MPS MP8755 QFN Synchronous buck-boost alternative
