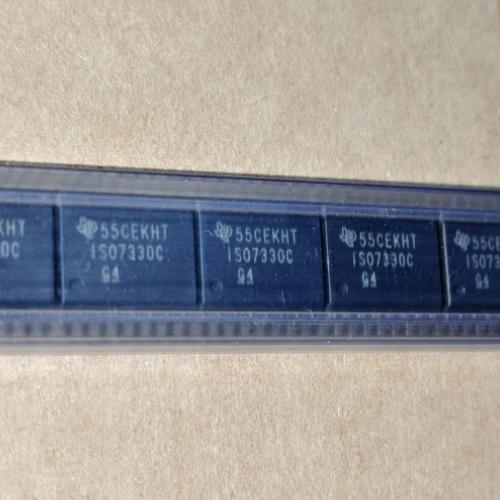

ISO7330CDW

3-channel digital isolator, 3000Vrms, 25Mbps, SOIC-16

5909

有效库存
转到查询

Image for reference only

制造商零件：

ISO7330CDW

包装：

SOIC-16 (7.5mm width, 300mil)

品牌：
产品类别：
质量承诺
发货与付款
服务与包装
产品手册
您可能感兴趣的其他建议.

IM4G16D3FABG-125

LFXH-C2B-237

0440004.WRA

ETQP3M6R8KVN

LYW5SM-HZJY-45-0-400-R33-Z-XX

SRU5028A-1R2Y

LWG6CP-EAFA-NOK-1-140-_

DSX321G-40.000MHZ-ZD09795

说明

产品概览

The ISO7330CDW from TI is a 3-channel general-purpose digital isolator providing 3000Vrms galvanic isolation, 25Mbps data rate, and 70kV/us CMTI in SOIC-16 package.

主要规格

渠道 3 Forward / 0 Reverse
隔离电压 3000 Vrms
数据速率 25 Mbps
CMTI 70 kV/us
传播延迟 32ns typ
Default Output High Level
Supply 3-5.5V (both sides)
Iq per channel 1.5mA typ @ 1Mbps
Temp -40 to 125C
包装 SOIC-16-300mil

特点

  • 3-channel forward digital isolation
  • 3000Vrms isolation rating
  • 25Mbps maximum data rate
  • 70kV/us high CMTI for noisy environments
  • 32ns typical propagation delay
  • Fail-safe high default output
  • 3-5.5V dual supply operation
  • Low power: 1.5mA per channel at 1Mbps
  • EMC-compliant design

应用

  • Industrial communication isolation
  • Motor drive signal isolation
  • Power supply feedback isolation
  • Medical equipment isolation barriers
  • PLC and DCS I/O modules
  • Isolated SPI/I2C/UART interfaces

The ISO7330CDW from TI is a 3-channel digital isolator providing 3000Vrms galvanic isolation with 25Mbps data rate. The high 70kV/us CMTI makes it suitable for noisy motor drive and industrial environments. The SOIC-16 package provides a compact isolation solution.

The ISO7330 uses silicon-dioxide (SiO2) insulation between input and output sides. Each channel consists of a modulator on the input side and a demodulator on the output side, connected through the isolation barrier. The modulator encodes digital input into high-frequency pulses that cross the barrier via on-chip capacitors. The demodulator reconstructs the digital signal on the isolated side.

别针组 计数 功能
Side 1 I/O 3 Channel inputs (VCCA side)
Side 2 I/O 3 Channel outputs (VCCB side)
VCCA/VCCB 2 3-5.5V supplies (each side)
GND1/GND2 2 Grounds (each side)
Enable 2 Output enables (each side)
  • Industrial communication isolation
  • Motor drive signal isolation
  • Medical equipment barriers
  • Isolated SPI/UART interfaces
制造商 部件编号 说明
TI ISO7331CDW 2F/1R channel config
TI ISO7730 Next-gen, 5000Vrms
模拟器件公司 ADuM1301 Pin-compatible alternative
硅实验室 Si8631 3-channel isolator
推荐部件
