AM29LV160MB-90EI

16Mbit Parallel NOR Flash, 2Mx8/1Mx16, 90ns, 2.7-3.6V, 48-TSOP, AMD/Spansion

2345

Effective Inventory
Go to Inquiry

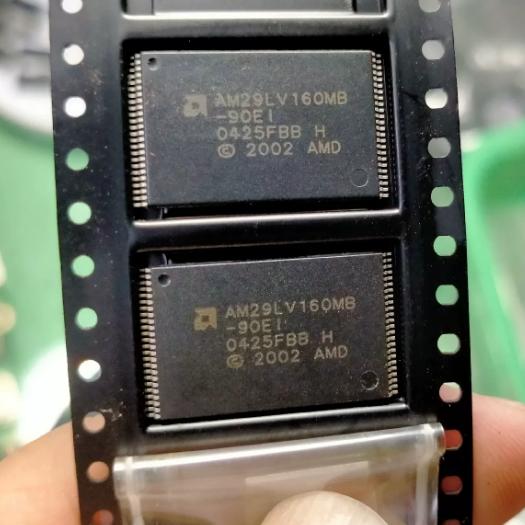

Image for reference only

Manufacturer Part：

AM29LV160MB-90EI

Package：

48-TSOP

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The AM29LV160MB-90EI is a 16Mbit CMOS Flash memory from AMD/Spansion featuring boot sector architecture. It supports x8/x16 selectable organization via BYTE# pin and offers 90ns access time at 2.7V-3.6V supply voltage. The device comes in a 48-TSOP package and operates over extended industrial temperature range. As a classic AMD Flash device (now Cypress/Spansion lineage), it is widely used in legacy embedded systems and remains a key component for maintenance and replacement of existing designs.

Key Specifications

Memory Type FLASH – NOR (Non-Volatile)
Memory Size 16Mbit (2M x 8 / 1M x 16)
Interface Parallel (Asynchronous)
Access Time 90 ns
Voltage Supply 2.7V ~ 3.6V
Operating Temperature -40°C ~ 85°C
Package 48-TSOP
Architecture Boot sector (Bottom/Top variants)
Endurance 100,000 cycles typical
Data Retention 20 years

Features

  • 16Mbit density: 2M x 8 / 1M x 16 configuration
  • Byte/Word mode switchable via BYTE# pin
  • Fast access time: 90ns at 3V supply
  • Single 2.7V-3.6V read/program/erase supply
  • Fast program time: 9us/word typical
  • Fast sector erase: 0.7s typical
  • Boot sector architecture with small parameter blocks
  • Hardware sector protection
  • Unlock Bypass program command
  • CFI (Common Flash Interface) support
  • Ready/Busy# (RY/BY#) output
  • Hardware Reset (RESET#) input
  • WP# pin for sector group protection
  • JEDEC standard commands
  • Data Polling and Toggle Bit status
  • RoHS compliant (versions)

Applications

  • Embedded system firmware storage
  • Industrial control systems
  • Networking and communication equipment
  • Consumer electronics
  • Automotive electronics
  • Medical devices
  • Legacy system maintenance
  • BIOS and boot code storage

The AM29LV160MB-90EI is a 16Mbit 3V CMOS Flash memory from AMD (Advanced Micro Devices), now part of the Cypress/Spansion product lineage through acquisition. It is organized as 2,097,152 bytes or 1,048,576 words, selectable via the BYTE# pin. The device features 90ns access time and operates from a single 2.7V to 3.6V power supply for read, program, and erase operations. The boot sector architecture includes small 8KB/16KB boot sectors (configurable top or bottom) and larger 64KB main sectors. The device features hardware sector protection, allowing sectors to be protected from program and erase operations. Commands are written to the command register following JEDEC standard conventions. The device supports Unlock Bypass mode for faster programming operations. Status is reported via Data Polling (DQ7), Toggle Bit (DQ6), and the RY/BY# hardware pin. CFI (Common Flash Interface) allows software to query device capabilities. The 48-pin TSOP package provides a standard form factor. While the AM29LV series traces back to AMD, the technology and manufacturing were transferred to Spansion (a joint venture with Fujitsu), which later merged with Cypress Semiconductor. This device is often sought for legacy system maintenance and replacement.

The AM29LV160M operates as an asynchronous parallel NOR Flash memory using AMD’s standard command set. In read mode, when CE# and OE# are low and WE# is high, data is output after the address access time. The BYTE# pin selects between x8 and x16 modes: high for word mode (16-bit data bus with DQ0-DQ15), low for byte mode (8-bit data bus with DQ0-DQ7 and DQ15/A-1 as LSB address). Program and erase operations are controlled by writing command sequences to the command register. The internal state machine automatically handles all program and erase algorithms and timing. The device uses Fowler-Nordheim tunneling for both programming (hot electron injection) and erasing. Sector erase, chip erase, and sector protection commands are supported. The WP# pin protects the two outermost sectors from program/erase operations. Status can be monitored via software (DQ7 Data Polling, DQ6 Toggle Bit) or hardware (RY/BY# pin). The boot sector architecture provides small, dedicated sectors at either the top or bottom of the memory map for boot code storage, with the remainder as uniform main sectors.

Pin Number Pin Name Type Description
A0-A19 Address Inputs Input 20 address lines for 1M word / 2M byte addressing
DQ0-DQ14 Data I/O I/O Data input/output lines
DQ15/A-1 Data I/O / A-1 I/O DQ15 in word mode, A-1 in byte mode
CE# Chip Enable Input Active low chip enable
OE# Output Enable Input Active low output enable for read
WE# Write Enable Input Active low write enable
RESET# Hardware Reset Input Active low hardware reset
RY/BY# Ready/Busy Output Open drain ready/busy status
BYTE# Byte/Word Select Input Byte mode (low) / Word mode (high)
WP#/ACC Write Protect/ACC Input Write protect / accelerated program input
VCC Power Supply Power 2.7V to 3.6V supply
GND Ground Ground Device ground
NC No Connection – No internal connection
  • Embedded system firmware and boot code storage
  • Industrial control and automation
  • Networking and telecom equipment
  • Consumer electronics legacy designs
  • Automotive electronics
  • Medical device firmware
  • Legacy system maintenance and replacement
  • BIOS and configuration memory
Manufacturer Part Number Description
Macronix MX29LV160DBTI-70G 16Mbit NOR Flash, 70ns, 48-TSOP
Cypress/Spansion S29GL016N90TFI020 16Mbit NOR Flash, 90ns, 48-TSOP
Micron/Numonyx JS28F160C3BD90 16Mbit StrataFlash, 90ns, 48-TSOP
ISSI IS29LV160D-90TLI 16Mbit Parallel Flash, 90ns, TSOP
