74LS07

Hex buffer/driver with open-collector high-voltage output, 30V, PDIP/SOIC-14

5810

Inventario efectivo
Ir a la consulta

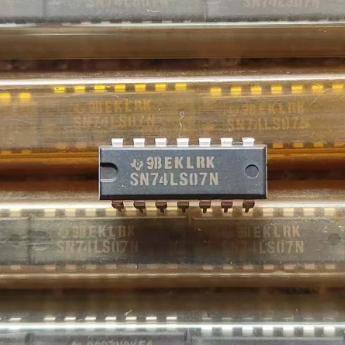

Image for reference only

Pieza del fabricante：

74LS07

Paquete：

SOIC-14 / PDIP-14

Marca：
Categorías de productos：
Compromiso de calidad
Envíos y pagos
Servicio y embalaje
Manual del producto
Otras recomendaciones que pueden interesarle.

IM4G16D3FABG-125

LFXH-C2B-237

0440004.WRA

ETQP3M6R8KVN

LYW5SM-HZJY-45-0-400-R33-Z-XX

SRU5028A-1R2Y

LWG6CP-EAFA-NOK-1-140-_

DSX321G-40.000MHZ-ZD09795

Descripción

Productos

The 74LS07 from TI is a hex buffer and driver with open-collector high-voltage outputs capable of sinking up to 30V, enabling level shifting and high-voltage interface applications.

Especificaciones

Logic Type Hex buffer/driver
Family 74LS (Low-power Schottky)
Gates 6
Output Type Open-collector, 30V max
Sink Current 40mA max
Tensión de alimentación 4.75-5.25V
Retardo de propagación 12ns typ
Temp 0 to 70C

Características

  • Six independent non-inverting buffers
  • Open-collector outputs rated to 30V
  • 40mA output sink current per gate
  • High-voltage level shifting capability
  • Standard TTL input compatibility
  • Direct drive of lamps, relays, LEDs
  • Industry-standard 14-pin pinout

Aplicaciones

  • High-voltage level shifting
  • Relay and lamp driver interface
  • LED indicator drivers
  • Wired-OR logic bus connections
  • Industrial control interfaces
  • Voltage translator circuits

The 74LS07 from TI is a hex buffer with open-collector high-voltage outputs. Each of the six non-inverting buffers can sink up to 40mA and withstand up to 30V on the output, making it ideal for level shifting and driving high-voltage loads from TTL logic levels.

Each buffer is a non-inverting driver with an open-collector NPN output transistor. When the input is high, the output transistor conducts, pulling the output low. When the input is low, the output transistor is off, and the output floats high via an external pull-up resistor to any voltage up to 30V. This enables interfacing between 5V TTL logic and higher-voltage systems.

Pin Nombre Función
1 1A Buffer 1 input
2 1Y Buffer 1 output (open-collector)
3 2A Buffer 2 input
4 2Y Buffer 2 output
5 3A Buffer 3 input
6 3Y Buffer 3 output
7 GND Suelo
8 4Y Buffer 4 output
9 4A Buffer 4 input
10 5Y Buffer 5 output
11 5A Buffer 5 input
12 6Y Buffer 6 output
13 6A Buffer 6 input
14 VCC 5V supply
  • High-voltage level shifting
  • Relay and lamp driving
  • LED indicator drivers
  • Wired-OR bus connections
Fabricante Número de pieza Notas
TI SN74HC07 CMOS version, wider voltage
TI SN74LS17 Higher voltage (15V) version
Nexperia 74LS07 Compatible con clavijas
ON Semi MC74LS07 Compatible con clavijas
