KH25L6433FM2I-08G

64Mbit SPI NOR Flash, Quad I/O, 133MHz, 2.65-3.6V, 8-SOP, Industrial Grade

6789

Effective Inventory
Go to Inquiry

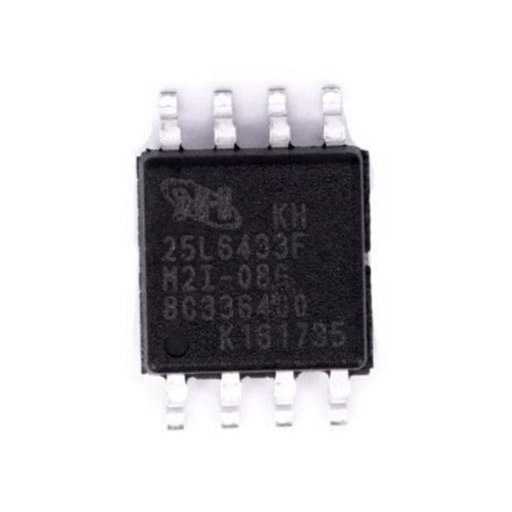

Image for reference only

Manufacturer Part：

KH25L6433FM2I-08G

Package：

8-SOP

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The KH25L6433FM2I-08G is a 64Mbit multi-I/O SPI NOR Flash memory from Macronix’s KHIC series. It supports Single I/O, Dual I/O, and Quad I/O (MXSMIO™) interfaces with clock frequencies up to 133 MHz. The device features 8-SOP (200mil) packaging, operates from 2.65V to 3.6V, and is rated for industrial temperature range of -40°C to +85°C. This serial flash offers high performance quad I/O operation with advanced security features including block lock protection and secured OTP memory.

Key Specifications

Memory Type FLASH – NOR (Non-Volatile)
Memory Size 64Mbit (8M x 8)
Interface SPI – Quad I/O (QPI)
Clock Frequency 133 MHz (max)
Voltage Supply 2.65V ~ 3.6V
Operating Temperature -40°C ~ 85°C
Package 8-SOP (200mil)
Organization 8M x 8 / 4M x 16 / 2M x 32
Erase/Program Cycles 100,000 typical
Data Retention 20 years

Features

  • MXSMIO™ technology: Single I/O, Dual I/O, Quad I/O support
  • Fast read up to 133MHz with Quad I/O mode
  • QPI (Quad Peripheral Interface) mode available
  • 2048 sectors of 4KB each for flexible erase
  • Program/Erase Suspend and Resume operation
  • Advanced sector protection (block lock, password protection)
  • 8K-bit secured OTP (factory + customer programmable)
  • Hardware HOLD# / RESET# and WP# pins
  • Deep power-down mode for low standby current
  • Software reset command support
  • SFDP (Serial Flash Discoverable Parameters) compliant
  • Unique ID feature
  • RoHS compliant and halogen-free

Applications

  • Code storage for embedded systems
  • Industrial control and automation
  • Automotive electronics
  • Consumer electronics
  • Networking and communication equipment
  • Medical devices
  • IoT devices and wearables
  • Aerospace and defense systems

The KH25L6433FM2I-08G is a 64Mbit CMOS multi-I/O serial NOR Flash memory from Macronix’s KHIC product line, part of the MXSMIO™ (Serial Multi I/O) family. It supports standard SPI, Dual I/O, and Quad I/O operation modes, enabling high-speed data transfer up to 133MHz clock frequency. The 64Mbit memory is organized as 8M x 8 bits and features uniform 4KB sectors and 64KB blocks for flexible erase operations. The device includes advanced features such as Program/Erase Suspend and Resume, Quad Peripheral Interface (QPI) mode, advanced sector protection with password protection, 8K-bit secured OTP memory, and hardware reset. Operating from 2.65V to 3.6V over the full industrial temperature range of -40°C to +85°C, it offers reliable performance in demanding environments. The 8-pin SOP 200mil package provides a compact, standard form factor suitable for space-constrained applications.

The KH25L6433F operates as a serial NOR Flash memory using the SPI protocol. In standard SPI mode, commands are sent on SI (Serial Input) and data is read on SO (Serial Output) synchronously with SCLK. In Dual I/O mode, both SI and SO pins are used for bidirectional data transfer, doubling the read throughput. In Quad I/O mode, all four data pins (SI/SO/WP/HOLD) are used for data transfer, quadrupling the read speed. The device uses a command-based interface where the host sends an 8-bit command code followed by address and data as needed. An internal state machine manages program and erase operations automatically. Sector erase, block erase, and chip erase commands are supported, with program operations performed on 256-byte pages. The device supports Program/Erase Suspend/Resume, allowing interruption of operations to access other memory regions. Status registers provide operation status feedback via polling.

Pin Number Pin Name Type Description
1 CS# Input Chip Select, active low
2 SO/SIO1 I/O Serial Data Output / I/O1 in multi-I/O mode
3 WP#/SIO2 I/O Write Protect / I/O2 in quad mode
4 GND Ground Ground
5 SI/SIO0 I/O Serial Data Input / I/O0 in multi-I/O mode
6 SCLK Input Serial Clock input
7 HOLD#/RESET#/SIO3 I/O Hold / Reset / I/O3 in quad mode
8 VCC Power Power supply 2.65V-3.6V
  • Embedded system firmware and code storage
  • Industrial automation and control systems
  • Automotive electronics (infotainment, ADAS)
  • Consumer electronics and smart devices
  • Network routers, switches and modems
  • Medical equipment and devices
  • IoT edge devices and sensors
  • Set-top boxes and digital TVs
Manufacturer Part Number Description
Macronix MX25L6433FM2I-08G 64Mbit SPI Flash, Quad I/O, 133MHz, 8-SOP
Winbond W25Q64JVSSIQ 64Mbit SPI Flash, Quad I/O, 133MHz, 8-SOIC
GigaDevice GD25Q64CSIG 64Mbit SPI Flash, Quad I/O, 120MHz, 8-SOP
ISSI IS25LP064A-JBLE 64Mbit SPI Flash, Quad I/O, 133MHz, 8-SOIC
