M12L64164A-7TG

64Mb LPDDR SDRAM, 4Mx16, 1.8V, 143MHz CL3, FBGA-54, -25~85°C

2345

Effective Inventory
Go to Inquiry

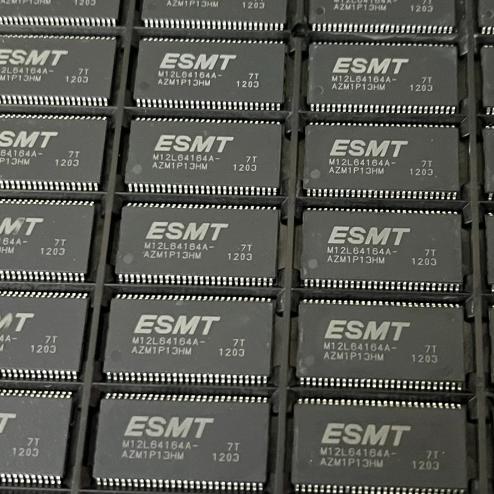

Image for reference only

Manufacturer Part：

M12L64164A-7TG

Package：

FBGA-54

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The M12L64164A-7TG is a 64Mbit (4M x 16) Mobile DDR (LPDDR) SDRAM from Elite Memory / Nanya operating at 1.8V with 143 MHz clock frequency (CL3). The -7 speed grade denotes 7ns clock period. The M12L prefix identifies LPDDR products. Packaged in a 54-ball FBGA with tape & reel, it targets mobile and portable applications requiring low-power SDRAM.

Key Specifications

Density 64Mbit (4M x 16)
Standard LPDDR (Mobile DDR)
Supply Voltage 1.8V
Clock Frequency 143 MHz
CAS Latency 3
Banks 4
Self Refresh Yes
Operating Temp -25°C to +85°C
Package FBGA-54
Part Status Active

Features

  • 64Mbit LPDDR SDRAM at 1.8V
  • 4M x 16 organization
  • 143 MHz clock (CL3)
  • 4 internal banks
  • Self refresh with temperature compensation
  • Deep power down mode
  • Partial array self refresh

Applications

  • Mobile phone application memory
  • Portable consumer electronics
  • Wearable device RAM

The M12L64164A-7TG is a 64Mbit (4M x 16) LPDDR (Mobile DDR) SDRAM from Nanya operating at 1.8V with 143 MHz clock frequency. LPDDR-specific power features including temperature-compensated self refresh, partial array self refresh, and deep power down mode minimize battery consumption in mobile and portable applications.

LPDDR SDRAM per JEDEC JESD209. Double data rate transfer on both DQS edges. Temperature-compensated self refresh adjusts refresh rate with temperature. PASR allows refreshing only selected banks. Deep power down disables all circuits for near-zero standby. 1.8V supply reduces power vs 2.5V DDR1.

Pin Group Interface Function
Address/Bank Input Address and bank select
DQ0-DQ15 I/O 16-bit data bus
DQS/Cmd Mixed Strobe and command
  • Feature phone application memory
  • Portable media player RAM
  • Wearable device working memory
Manufacturer Part Number Package Notes
ISSI IS43DR16640C-25DBLI FBGA 1Gb LPDDR larger alternative
Micron MT46H64M16LFBM-5 FBGA 1Gb LPDDR alternative
