MX25L25635FMI-10G

256Mbit SPI NOR Flash, Quad I/O, QPI, 133MHz, 2.7-3.6V, 16-SOP

5678

Effective Inventory
Go to Inquiry

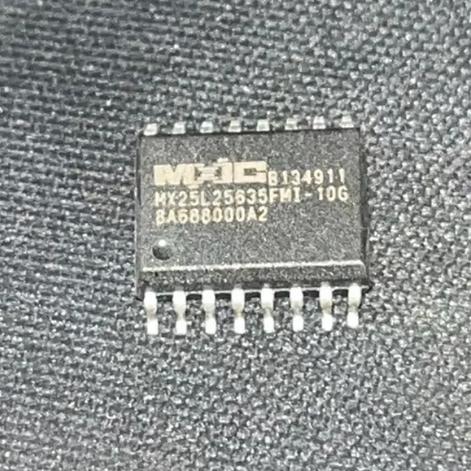

Image for reference only

Manufacturer Part：

MX25L25635FMI-10G

Package：

16-SOP

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The MX25L25635FMI-10G is a 256Mbit multi-I/O SPI NOR Flash memory from Macronix’s MXSMIO™ family. It supports Single I/O, Dual I/O, and Quad I/O operations with clock frequencies up to 133 MHz. The device comes in a 16-SOP (300mil) package, operates from 2.7V to 3.6V, and is rated for industrial temperature range. It features advanced capabilities including QPI mode, Fast Boot, Program/Erase Suspend/Resume, Advanced Sector Protection, Password Protection, Secured OTP, and Unique ID. Classified as not recommended for new designs, with the MX25L25645G series as the recommended upgrade.

Key Specifications

Memory Type FLASH – NOR (Non-Volatile)
Memory Size 256Mbit (32M x 8)
Interface SPI – Quad I/O, QPI
Clock Frequency 133 MHz (max)
Voltage Supply 2.7V ~ 3.6V
Operating Temperature -40°C ~ 85°C
Package 16-SOP (300mil)
Page Size 256 bytes
Erase/Program Cycles 100,000 typical
Data Retention 20 years

Features

  • MXSMIO™: Single I/O, Dual I/O, Quad I/O support
  • Quad Peripheral Interface (QPI) mode
  • 133MHz max clock frequency
  • Fast Boot mode for XIP (execute-in-place)
  • Program/Erase Suspend and Resume operation
  • Burst Read with wrap-around
  • Advanced Sector Protection (Individual + Password)
  • 4K-bit Secured OTP (customer programmable)
  • Hardware Reset support
  • Unique ID feature
  • 4-byte address mode support for 256Mb+ densities
  • SFDP (Serial Flash Discoverable Parameters)
  • Deep power-down mode
  • RoHS compliant and halogen-free

Applications

  • High-density code storage for embedded systems
  • Industrial control and automation
  • Automotive infotainment systems
  • Networking equipment and routers
  • Set-top boxes and smart TVs
  • Consumer electronics
  • Medical equipment
  • Data logging and configuration storage

The MX25L25635FMI-10G is a 256Mbit 3V CMOS serial multi-I/O NOR Flash memory from Macronix. As part of the MXSMIO™ (Serial Multi I/O) family, it supports Single I/O, Dual I/O, and Quad I/O interfaces for high-speed data transfer up to 133MHz clock frequency. The device also supports QPI (Quad Peripheral Interface) mode for even higher throughput. With 256Mbit density organized as 32M x 8, it requires 4-byte addressing for full memory access. The memory features uniform 4KB sectors, 32KB blocks, and 64KB blocks for flexible erase operations. Advanced features include Fast Boot mode for execute-in-place (XIP) applications, Program/Erase Suspend and Resume, Burst Read with configurable wrap length, and Advanced Sector Protection with both individual block protection and password protection. Security features include 4K-bit secured OTP memory, unique ID, and hardware reset. The 16-pin 300mil SOP package provides a standard form factor. While the ‘F’ revision is not recommended for new designs (superseded by ‘G’ revision), it remains widely used in existing products.

The MX25L25635F operates as a high-density serial NOR Flash with multi-I/O capability. In standard SPI mode, commands and addresses are sent on SI and data is received on SO. In Dual and Quad I/O modes, multiple data pins are used simultaneously for both input and output, significantly increasing throughput. The device supports both 3-byte (default) and 4-byte address modes, with 4-byte mode required to access memory beyond 128Mbit. QPI mode enables all four I/O pins to carry commands, addresses, and data, maximizing throughput. Program operations are performed on 256-byte pages with support for Quad I/O Page Program (4PP) for fast programming. The device features Program/Erase Suspend/Resume, allowing the processor to temporarily pause an erase or program operation to perform a read in another sector, then resume the operation. Status is tracked via status registers and can be polled or monitored via hardware ready/busy functionality.

Pin Number Pin Name Type Description
1 NC/SIO3 I/O No Connect / Serial I/O 3 in quad mode
2 VCC Power Power supply 2.7V-3.6V
3 VCC Power Power supply (connected internally)
4-7 NC – No internal connection
8 RESET#/SIO3 I/O Hardware Reset / I/O3 (alternative pin)
9 GND Ground Ground
10 WP#/SIO2 I/O Write Protect / Serial I/O 2
11 SCLK Input Serial Clock input
12 SI/SIO0 I/O Serial Input / Serial I/O 0
13 SO/SIO1 I/O Serial Output / Serial I/O 1
14-15 NC – No internal connection
16 CS# Input Chip Select, active low
  • High-density firmware and application code storage
  • Industrial PLC and automation systems
  • Automotive infotainment and ADAS
  • Enterprise networking equipment
  • Digital set-top boxes and OTT devices
  • Smart TVs and media players
  • Medical imaging and diagnostics equipment
  • Data center and server BIOS/configuration
Manufacturer Part Number Description
Macronix MX25L25645GMI-08G 256Mbit SPI Flash, 133MHz, 16-SOP – recommended replacement
Winbond W25Q256JVFIQ 256Mbit SPI Flash, Quad I/O, 133MHz, 16-SOIC
Micron MT25QL256ABA1EW9-0SIT 256Mbit SPI Flash, Quad I/O, 133MHz, 16-SOIC
GigaDevice GD25Q256VEIG 256Mbit SPI Flash, Quad I/O, 120MHz, 16-SOP
