Product Overview

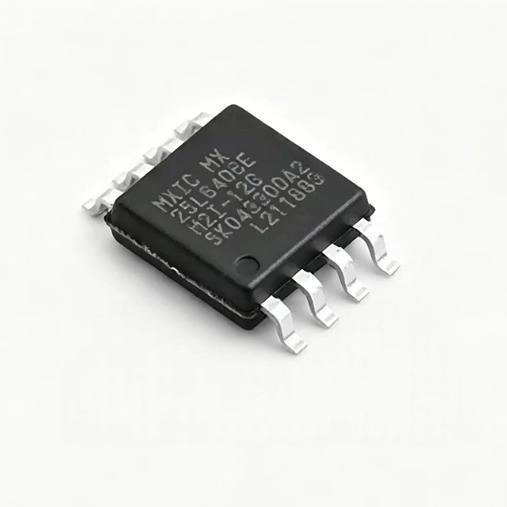

The MX25L6406EM2I-12G is a 64Mbit serial NOR Flash memory from Macronix featuring standard SPI interface with Dual Output mode capability. Operating at up to 86MHz clock frequency, it is organized as 8M x 8 bits and comes in an 8-SOP (200mil) package. The device operates from 2.7V to 3.6V supply voltage and supports industrial temperature range of -40°C to +85°C. It features 4KB sectors and 64KB blocks for flexible erase operations, along with hardware write protection and secured OTP memory. While not recommended for new designs, it remains a reliable choice for legacy applications and replacement needs.
Key Specifications
| Memory Type | FLASH – NOR (Non-Volatile) |
| Memory Size | 64Mbit (8M x 8) |
| Interface | SPI (Single I/O + Dual Output) |
| Clock Frequency | 86 MHz (max), 80 MHz Dual Output |
| Voltage Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Package | 8-SOP (200mil) |
| Page Size | 256 bytes |
| Erase/Program Cycles | 100,000 typical |
| Data Retention | 20 years |
Features
- Standard Serial Peripheral Interface (SPI) – Mode 0 and Mode 3
- Single I/O and Dual Output (1I/2O) read modes
- Fast read clock: 86MHz single, 80MHz dual output
- 2048 equal sectors of 4KB each
- 128 equal blocks of 64KB each
- Page program: 256 bytes per page
- Hardware write protection via WP# pin
- Software block protection (BP0-BP3)
- 512-bit secured OTP memory
- Deep power-down mode
- Hardware HOLD# function
- Low power CMOS design
- RoHS compliant package
Applications
- Embedded system firmware storage
- Consumer electronics
- Networking equipment
- Industrial control systems
- Set-top boxes and digital TVs
- Automotive electronics
- Medical devices
- Legacy system maintenance
