MX25U6435FM2I-10G

64Mbit 1.8V SPI NOR Flash, Quad I/O, QPI, 133MHz, 8-SOP, Industrial Grade

9876

Effective Inventory
Go to Inquiry

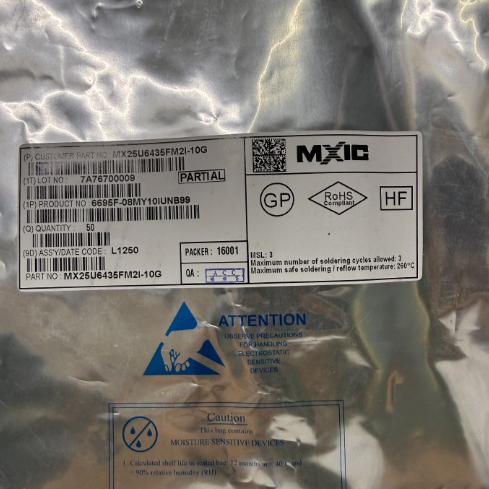

Image for reference only

Manufacturer Part：

MX25U6435FM2I-10G

Package：

8-SOP

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The MX25U6435FM2I-10G is a 64Mbit 1.8V multi-I/O SPI NOR Flash memory from Macronix’s MX25U series. It supports Single I/O, Dual I/O, and Quad I/O operations with QPI (Quad Peripheral Interface) mode, operating at clock frequencies up to 104MHz (standard) / 133MHz (enhanced). The device comes in a 200mil 8-SOP package, operates from 1.65V to 2.0V, and features Program/Erase Suspend/Resume, Fast Boot, Advanced Sector Protection, Password Protection, and Secured OTP. Manufactured using advanced process technology for low power and high performance.

Key Specifications

Memory Type FLASH – NOR (Non-Volatile)
Memory Size 64Mbit (8M x 8)
Interface SPI – Quad I/O, QPI
Clock Frequency 104MHz (standard) / 133MHz (enhanced)
Voltage Supply 1.65V ~ 2.0V (1.8V nominal)
Operating Temperature -40°C ~ 85°C
Package 8-SOP (200mil)
Page Size 256 bytes
Endurance 100,000 cycles typical
Data Retention 20 years

Features

  • MXSMIO™: Single I/O, Dual I/O, Quad I/O support
  • Quad Peripheral Interface (QPI) mode
  • 104MHz standard / 133MHz enhanced clock frequency
  • Uniform 4KB sectors and 64KB blocks
  • Fast Boot (XIP) mode support
  • Program/Erase Suspend and Resume
  • Burst Read with wrap-around
  • Advanced Sector Protection (Individual + Password)
  • Secured OTP: 8K-bit
  • Hardware Reset support
  • Unique ID feature
  • Deep power-down mode
  • SFDP (Serial Flash Discoverable Parameters)
  • RoHS compliant and halogen-free

Applications

  • 1.8V low-power embedded systems
  • Mobile and handheld devices
  • IoT and wearable electronics
  • Portable medical devices
  • Wireless communication modules
  • Tablets and smartphones
  • SSD firmware storage
  • Networking equipment with 1.8V rails

The MX25U6435FM2I-10G is a 64Mbit 1.8V CMOS serial multi-I/O NOR Flash memory from Macronix’s MX25U low-voltage series. Designed specifically for 1.8V system designs, it operates from 1.65V to 2.0V nominal, making it ideal for mobile and battery-powered applications. The device features MXSMIO™ technology supporting Single I/O, Dual I/O, and Quad I/O modes, along with QPI mode for maximum throughput. The 64Mbit memory is organized as 8M x 8 bits with uniform 4KB sectors, 32KB blocks, and 64KB blocks for flexible erase operations. Advanced features include Fast Boot mode for execute-in-place (XIP) applications, Program/Erase Suspend and Resume, Burst Read with configurable wrap length, Advanced Sector Protection with individual block protection and password protection, 8K-bit secured OTP memory, hardware reset, and unique ID. The 8-pin 200mil SOP package provides a standard compact form factor. It is in production and recommended for new designs in 1.8V applications requiring reliable, high-performance non-volatile storage.

The MX25U6435F operates as a 1.8V multi-I/O serial NOR Flash memory optimized for low-voltage operation. In standard SPI mode, data transfer occurs via SI/SO pins at SCLK rates up to 104MHz. In Quad I/O mode, all four data pins (SI/SO/WP/HOLD) are used for bidirectional data transfer, providing four times the throughput. QPI mode further optimizes by allowing commands and addresses on all four I/O pins, reducing protocol overhead. The device uses 24-bit addressing for the 64Mbit capacity. Program operations support standard Page Program and Quad Page Program (4PP) modes. The internal state machine manages all program and erase operations automatically, with status available via status register polling. Program/Erase Suspend/Resume allows temporarily pausing operations to access other memory regions. Advanced sector protection provides both individual block protection (non-volatile) and password-protected access control. The low-voltage design includes optimized charge pumps and sense amplifiers for reliable operation across the full 1.65V-2.0V range.

Pin Number Pin Name Type Description
1 CS# Input Chip Select, active low
2 SO/SIO1 I/O Serial Output / I/O1 in multi-I/QPI mode
3 WP#/SIO2 I/O Write Protect / I/O2 in quad/QPI mode
4 GND Ground Ground connection
5 SI/SIO0 I/O Serial Input / I/O0
6 SCLK Input Serial Clock input
7 HOLD#/RESET#/SIO3 I/O Hold/Reset / I/O3 in quad/QPI mode
8 VCC Power Power supply 1.65V-2.0V
  • Low-power 1.8V embedded systems
  • Mobile phones and tablets
  • Wearable technology and smart watches
  • Portable medical devices
  • Wireless modems and RF modules
  • SSD controller firmware
  • Enterprise networking equipment
  • IoT edge devices
Manufacturer Part Number Description
Macronix MX25U6432FM2I02 64Mbit 1.8V Flash, 75nm process variant
Winbond W25Q64JWSSIQ 64Mbit 1.8V SPI Flash, Quad I/O, 133MHz
Micron MT25QU64ABB1EW9-0AAT 64Mbit 1.8V SPI Flash, Quad I/O, 133MHz
GigaDevice GD25LQ64CTIG 64Mbit 1.8V SPI Flash, Quad I/O, 120MHz
