Product Overview

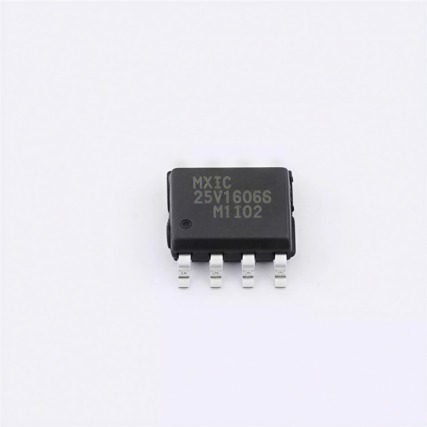

The MX25V16066M1I02 is a 16Mbit serial NOR Flash memory from Macronix’s MX25V series, featuring wide voltage range operation from 2.3V to 3.6V. It supports standard SPI interface with Dual Output capability, operating at up to 80MHz clock frequency. The device comes in an 8-SOP (154mil) package and supports industrial temperature range of -40°C to +85°C. With 4KB uniform sectors and low power consumption, it provides a reliable non-volatile storage solution for embedded systems requiring versatile voltage compatibility.
Key Specifications
| Memory Type | FLASH – NOR (Non-Volatile) |
| Memory Size | 16Mbit (2M x 8) |
| Interface | SPI (Dual Output) |
| Clock Frequency | 80 MHz (max) |
| Voltage Supply | 2.3V ~ 3.6V (wide range) |
| Operating Temperature | -40°C ~ 85°C |
| Package | 8-SOP (154mil) |
| Access Time | 6 ns (fast read access) |
| Page Size | 256 bytes |
| Endurance | 100,000 cycles |
Features
- Wide voltage range: 2.3V to 3.6V operation
- Standard SPI interface with Dual Output mode
- Fast read: 80MHz clock frequency
- Fast read access time: 6ns
- Uniform 4KB sectors (512 sectors)
- Uniform 64KB blocks
- Hardware write protection
- Software block protection (BP0-BP3)
- Secured OTP: 4Kbit x 2
- Low standby current: 2uA typical
- Deep power-down mode: 2uA typical
- Low active read current
- JEDEC standard manufacturer and device ID
- RoHS compliant and halogen-free
Applications
- Embedded systems with variable voltage supplies
- Industrial control and automation
- Consumer electronics
- Networking equipment
- Automotive electronics
- Medical devices
- IoT devices and sensors
- Smart home appliances
