Product Overview

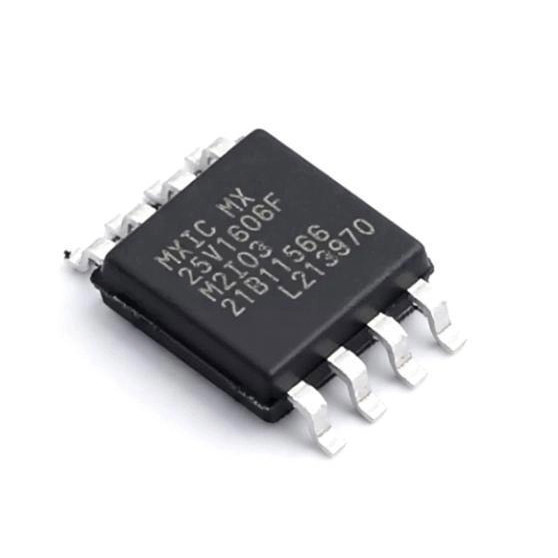

The MX25V1606FM2I03 is a 16Mbit wide-voltage serial NOR Flash memory from Macronix’s MX25V series. It features standard SPI interface with Dual Output mode support, operating from 2.3V to 3.6V supply voltage. The device comes in an 8-SOP package and supports industrial temperature range of -40°C to +85°C. With fast access time and uniform 4KB sectors, it provides versatile non-volatile storage for systems with variable supply voltages.
Key Specifications
| Memory Type | FLASH – NOR (Non-Volatile) |
| Memory Size | 16Mbit (2M x 8) |
| Interface | SPI (Dual Output) |
| Clock Frequency | 80 MHz (max) |
| Voltage Supply | 2.3V ~ 3.6V (wide range) |
| Operating Temperature | -40°C ~ 85°C |
| Package | 8-SOP |
| Page Size | 256 bytes |
| Endurance | 100,000 cycles |
| Data Retention | 20 years |
Features
- Wide voltage range: 2.3V to 3.6V operation
- Standard SPI interface with Dual Output mode
- Fast read clock frequency: 80MHz
- 16Mbit density: 2M x 8 organization
- Uniform 4KB sectors (512 sectors)
- Uniform 64KB blocks
- Hardware write protection (WP# pin)
- Software block protection (BP bits)
- Secured OTP memory
- Deep power-down mode
- Hardware HOLD# function
- Low standby and active current
- JEDEC standard ID
- RoHS compliant and halogen-free
Applications
- Systems with variable voltage supplies
- Industrial control and automation
- Consumer electronics
- Networking equipment
- Automotive electronics
- Medical devices
- IoT devices and sensors
- Smart home appliances
