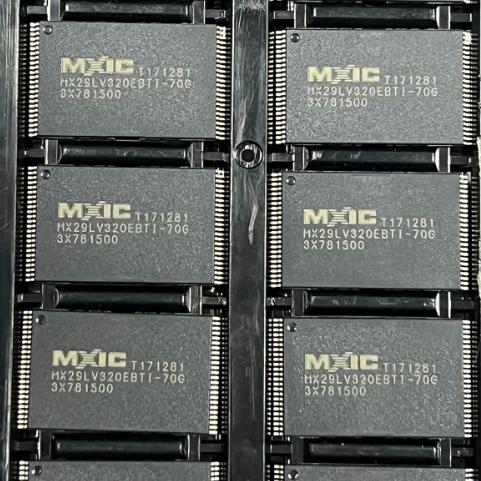

MX29LV320EBTI-70G

32Mbit Parallel NOR Flash, Bottom Boot, 4 banks, 70ns, 2.7-3.6V, 48-TSOP

7126

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

MX29LV320EBTI-70G

Package：

48-TSOP

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The MX29LV320EBTI-70G is a 32Mbit parallel NOR Flash memory from Macronix’s MX29LV320E series featuring bottom boot sector architecture. It supports x8/x16 selectable organization via BYTE# pin and offers 70ns access time at 2.7V-3.6V supply. The device comes in a 48-TSOP package and operates over industrial temperature range of -40°C to +85°C. With 4 banks and advanced features like sector protection, CFI support, and RY/BY# output, it provides reliable high-density code storage for embedded systems.

Key Specifications

Memory Type FLASH – NOR (Non-Volatile)
Memory Size 32Mbit (4M x 8 / 2M x 16)
Interface Parallel (Asynchronous)
Access Time 70 ns
Voltage Supply 2.7V ~ 3.6V
Operating Temperature -40°C ~ 85°C
Package 48-TSOP
Architecture Bottom Boot sector (4 banks)
Endurance 100,000 cycles typical
Data Retention 20 years

Features

  • 32Mbit density with bottom boot architecture
  • 4 bank architecture for simultaneous read/program
  • Byte/Word mode switchable via BYTE# pin
  • Fast access time: 70ns
  • Fast program time: 9us/word typical
  • Fast erase time: 0.7s/sector typical
  • Low power consumption: 16mA active read max
  • Sector protect and chip unprotect functions
  • Hardware Ready/Busy# (RY/BY#) output
  • Hardware Reset (RESET#) input
  • WP#/ACC for accelerated program
  • JEDEC standard compatible
  • CFI (Common Flash Interface) support
  • RoHS compliant

Applications

  • High-density code storage for embedded systems
  • Industrial control and automation
  • Networking and communication equipment
  • Consumer electronics
  • Automotive electronics
  • Medical devices
  • Set-top boxes and digital TVs
  • BIOS and firmware storage

The MX29LV320EBTI-70G is a 32Mbit 3V parallel NOR Flash memory from Macronix featuring bottom boot sector architecture and 4-bank organization. It supports both x8 and x16 data bus widths, configurable via the BYTE# pin. With 70ns access time at full 3V supply, it provides fast read performance for code execution applications. The device features 4 banks (each 8Mbit) allowing read-while-program or read-while-erase operations across different banks, improving system performance. The bottom boot architecture places small boot sectors at the bottom of the memory map, ideal for boot loader code. Key features include sector protection, chip unprotect, hardware RY/BY# pin, hardware reset, WP#/ACC for accelerated programming, and CFI (Common Flash Interface) support. The 48-pin TSOP package provides a standard form factor for parallel flash. With 100K program/erase cycle endurance and 20-year data retention, it is suitable for demanding embedded applications.

The MX29LV320E operates as a 4-bank asynchronous parallel NOR Flash memory. The 4-bank architecture divides the 32Mbit memory into four independent 8Mbit banks, allowing operations in different banks to occur simultaneously (e.g., reading from one bank while programming another). In read mode, when CE# and OE# are low and WE# is high, data appears on the DQ pins after the address access time. The BYTE# pin selects between x8 and x16 modes. Program and erase operations are controlled via the command register, with an internal state machine managing all timing automatically. Status is monitored via DQ7 Data Polling, DQ6 Toggle Bit, and the RY/BY# hardware pin. The bottom boot architecture features small parameter/boot sectors at the lowest addresses and larger main sectors. Sector erase, block erase, and chip erase commands are supported. Sector protection can lock sectors against program/erase operations, providing protection against accidental modification.

Pin Number Pin Name Type Description
A0-A20 Address Inputs Input 21 address lines for 2M word / 4M byte addressing
DQ0-DQ14 Data I/O I/O Data input/output lines
DQ15/A-1 Data I/O / Address-1 I/O DQ15 in word mode, A-1 in byte mode
CE# Chip Enable Input Active low chip enable
OE# Output Enable Input Active low output enable
WE# Write Enable Input Active low write enable
RESET# Hardware Reset Input Active low hardware reset input
RY/BY# Ready/Busy Output Open drain ready/busy status output
BYTE# Byte/Word Select Input Selects byte or word mode operation
WP#/ACC Write Protect/ACC Input Write protect / accelerated program
VCC Power Supply Power 2.7V to 3.6V supply voltage
GND Ground Ground Device ground
NC No Connection – No internal connection
  • High-density embedded firmware storage
  • Industrial PLC and control systems
  • Network routers and switches
  • Consumer electronics with large flash needs
  • Automotive infotainment systems
  • Medical equipment firmware
  • Digital set-top boxes and DTVs
  • BIOS and boot code storage
Manufacturer Part Number Description
Macronix MX29LV320ETTI-70G 32Mbit NOR Flash, Top Boot, 48-TSOP
Cypress/Spansion S29GL032N90TFI040 32Mbit NOR Flash, 90ns, 48-TSOP
Micron/Numonyx JS28F320C3BD70A 32Mbit StrataFlash, 70ns, 48-TSOP
ISSI IS29LV320D-70TLI 32Mbit Parallel Flash, 70ns, TSOP
